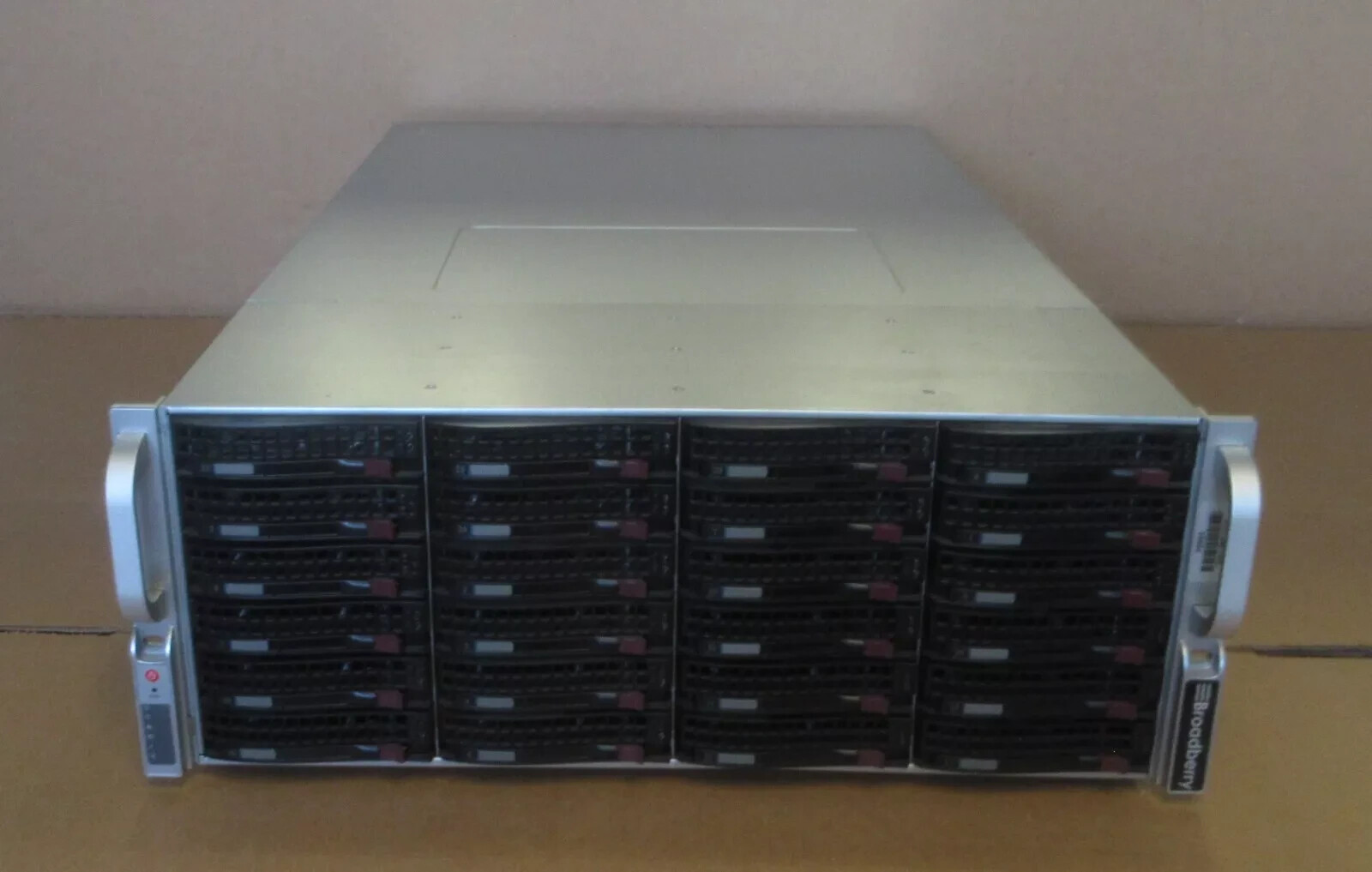

Supermicro CSE-847 X10DRi-T 2x E5-2650v3 128GB 36 x 3.5" Bay 4U Storage Server Model:CSE-847 In Good Condition, Full Working OrderTested2 Year Warranty Includes 36x Caddies With ScrewsIncluded - 1 x Supermicro CSE-847 X10DRi-T 4U Storage Serverwith:
- 24 x 3.5" Front Drive Bays With Caddies (Backplane BPN-SAS2-846EL1)
- 12 x 3.5" Rear Drive Bays With Caddies (Backplane BPN-SAS2-826EL1)
- Motherboard: X10DRi-T
- Processor: 2 x Intel Xeon E5-2650v3 10-Core 2.30GHz CPU
- Memory: 8 x 16GB DDR4 Memory
- RAID: 1 x LSI MegaRAID 9271 PCIe 3.0 x8 SAS 12GB/s RAID Controller Card - MR SAS 9271-4i
- Power Supply: 2 x 1400W PSU - x Intel Dual Port Ethernet Converged Network Adapter X520-DA2
- 1 x LSI MegaRAID Remote Board Battery Holder - L325376-00A
Board SpecificationsProduct SKUsMBD-X10DRi-T Physical StatsForm Factor - 12" x 13" (30.5cm x 33.0cm)
Processor/CacheCPU - Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
- Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s
Cores / Cache - Up to 22 cores † / Up to 55MB† cache
Note - † BIOS version 2.0 or above is required
Note - ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System MemoryMemory Capacity - ; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots16x 288-pin DDR4 DIMM slots
Memory Type - 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes - RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 128GB
Memory Voltage Error Detection - Corrects single-bit errors
On-Board DevicesChipset SATA - Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
AHCI SATA - SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA - SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers - Dual LAN with Intel® X540 10GBase-T Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics Input / OutputSATA LAN - 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 6 USB 2.0 ports (2 rear + 4 headers)
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output Serial Port / Header - 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial
TPM Expansion SlotsPCI-E - 3 PCI-E 3.0 x16,
- 3 PCI-E 3.0 x8
System BIOSBIOS Type - 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features - Plug and Play (PnP)
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
ManagementSoftware - Intel® Node Manager, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations - ACPI Power Management
- Power-on mode for AC power recovery
PC Health MonitoringVoltage - +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT
FAN - 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature - Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support
LED - CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features - Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
Operating EnvironmentOperating Temperature Range - 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range - 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range - 5% - 95% (non-condensing)
