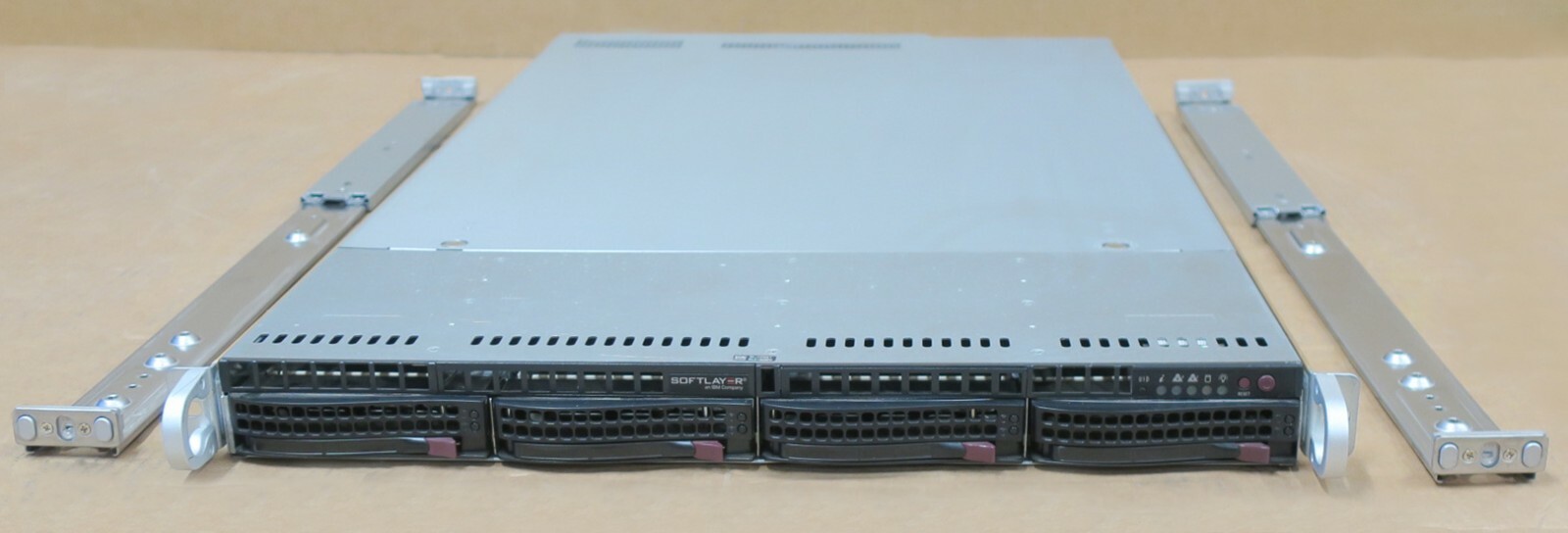

Supermicro CSE-819U X10DRU-i+ 1U Server

Chassis Part number:CSE-819U

Motherboard Part Number:X10DRU-i+

Backplane Part Number:SAS815TQ

In Good Condition, Full Working Order
Tested
Includes:

• 2 x IntelXeon Eight-Core E5-2640V32.60GHz Processors
• 32GB DDR4 Memory
• 4 x 3.5" SAS/SATA Hot-Swap Hard Drive Bays With 4 x Empty Caddies
• Onboard SATA 2.0 & 3.0 RAID (RAID 0, 1, 5, 10)
• 1 x1U Ultra Riser based on Intel X540 controller with 4 10Gbase-T ports and 1 internal PCI-E x8 3.0 slotAOC-UR-I4XT
• 1 x 750W Power Supply PWS-750P-IR
• 8 x Internal Fans
• Set Of Rails

Manufacturers Specification:
MotherboardSuper X10DRU-i+
Processor/CacheCPU Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *Dual Socket R3 (LGA 2011)Cores / Cache Up to 22 Cores† / Up to 55MB† CacheSystem Bus QPI up to 9.6 GT/sNote † BIOS version 2.0 or above is required
System MemoryMemory Capacity 24x 288-pin DDR4 DIMM slotsUp to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMMMemory Type 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit2666/2400 ECC DDR4 NVDIMMDIMM Sizes RDIMM: 64GB, 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GB3DS LRDIMM: 128GBNVDIMM: 16GBMemory Voltage 1.2 VError Detection Corrects single-bit errors
On-Board DevicesChipset Intel® C612 chipsetSATA SATA3 (6Gbps) with RAID 0, 1, 5, 10IPMI Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMCNetwork Connectivity 4x 10GBase-T ports via AOC-UR-i4XTIntel® X540 10GBase-T1x Realtek RTL8211E PHY (dedicated IPMI)Graphics ASPEED AST2400 BMC
Input / OutputSATA 4x SATA3 (6Gbps) portsLAN 4x RJ45 10GBase-T ports1x RJ45 Dedicated IPMI LAN portUSB 5x USB 3.0 ports(2 rear, 2 onboard header, 1 Type A)Video 1x VGA ConnectorSerial Port 1x Serial headerDOM 2x SATA DOM (Disk on Module) support with embedded power
System BIOSBIOS Type 128Mb SPI Flash EEPROM with AMI BIOSBIOS Features Plug and Play (PnP)APM 1.2PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1ManagementSoftware SuperDoctor® 5Intel® Node Manager 3.0Watch DogNMISUM and SSMOptional IPMI 1.5 / 2.0Power Configurations ACPI Power ManagementPower-on mode for AC power recovery
ChassisForm Factor 1U RackmountModel CSE-819U
Dimensions and WeightHeight 1.7" (43mm)Width 17.2" (437mm)Depth 29.7" (754mm)Weight Net Weight: 26 lbs (11.8 kg)Gross Weight: 41 lbs (18.6 kg)Available Color Black
Front PanelButtons Power On/Off buttonSystem Reset buttonLEDs Power LEDHard drive activity LED2x Network activity LEDsSystem Overheat LED / Fan fail LED /UID LED
Expansion SlotsPCI-Express 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)Drive BaysHot-swap 4x 3.5" Hot-swap drive bays
System CoolingFans 4x heavy duty fans with optimal fan speed control4x additional fans optionalAir Shroud 1x Air Shroud
Power Supply750W Redundant AC-DC Power Supplies, +12V/+12Vsb outputAC Input 100-127Vac, 50-60Hz200-240Vac, 50-60Hz+12V Max: 62.5A & Min: 0A (100Vac-127Vac)Max: 62.5A & Min: 0A (200Vac-240Vac)12V SB Max: 2.1AMin: 0A
Motherboard Specification:Product SKUsMBD-X10DRU-i+ X10DRU-i+Physical StatsForm Factor ProprietaryDimensions 17" x 16.8" (43.18cm x 42.67cm)Processor/CacheCPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/sCores / Cache Up to 22 cores † / Up to 55MB† cacheNote † BIOS version 2.0 or above is requiredNote ** Motherboard supports this maximum TDP. Please verify your system can thermally support.System MemoryMemory Capacity 1.5TB Registered ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slotsMemory Type 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GBLRDIMM: 32GB, 64GB3DS LRDIMM: 128GBMemory Voltage 1.2VError Detection Corrects single-bit errorsOn-Board DevicesChipset Intel® C612SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10IPMI Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMCNetwork Controllers Networking options provided via Ultra RiserGraphics Aspeed AST2400 BMCInput / OutputSATA 10 SATA3 (6Gbps) portLAN 1USB 3 USB 3.0 ports (2 rear + 1 Type A)Video Output 1 VGA portSerial Port / Header 2 COM Ports (1 rear, 1 header)2 fast UART 16550 serialTPM 1 TPM Header & Chip both
Expansion SlotsPCI-E 1 PCI-E 3.0 x32 Left Riser Slot,1 PCI-E 3.0 x8 Right Riser Slot,1 PCI-E 3.0 x40 Ultra Riser SlotSee Ultra Riser Compatibility Matrix.System BIOSBIOS Type 128Mb SPI Flash EEPROM with AMI BIOSBIOS Features Plug and Play (PnP)PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1ManagementSoftware Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, WatchdogPower Configurations ACPI Power ManagementPower-on mode for AC power recoveryPC Health MonitoringVoltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5+1 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBATFAN 8x 4-pin fan headers (up to 8 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed controlTemperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI, Support to monitor Supermicro AOC temperatures from IPMI or SD 5LED CPU / System Overheat LED, UID/Remote UID, Memory DIMM ECC error LEDsOther Features 4x 8-pin GPU power connectors, Chassis intrusion detection, Chassis intrusion header, RoHS, SDDCOperating EnvironmentOperating Temperature Range 10°C - 35°C (50°F - 95°F)Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)Operating Relative Humidity Range 8% - 90% (non-condensing)Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£950 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
