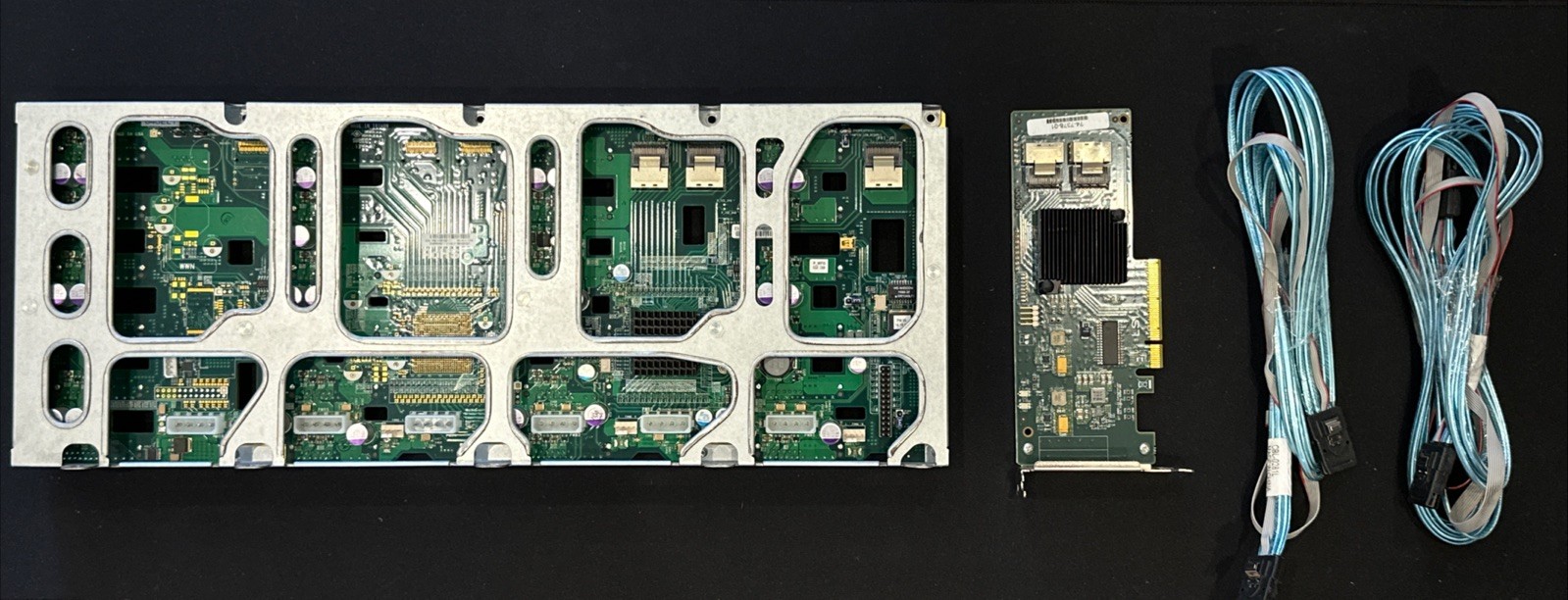

SUPERMICRO BPN-SAS2-846EL1 BACKPLANE + LSI SAS9211-8i IT MODE HBA + 2 SFF-8087 CABLES
READ THIS FIRSTA matched set that ran together: the 24-bay backplane, the HBA that drove it, and the cables that connected them, all pulled working from the same Supermicro SC847 server. The HBA is already in IT mode, so drives pass straight through to the operating system with no RAID layer. Good for ZFS, TrueNAS and unRAID builds in an SC846-style chassis.
BACKPLANESupermicro BPN-SAS2-846EL1, revision 1.1024-bay, SAS2 6Gb/s, single expanderMetal mounting bracket attached
HBALSI SAS9211-8i, board H3-25250-02C, full-height bracketFirmware 20.00.06.00 (P20), IT mode, BIOS 07.39.00.00PCIe 2.0 x8 (linked at full x8 in the server), 2 internal SFF-8087 ports
CABLESTwo SFF-8087 to SFF-8087 internal mini-SAS cables, about 37 in each
HOW IT WAS CHECKEDThe whole set is a working pull. The HBA was read back by the Linux mpt2sas driver in the server: SAS9211-8i, firmware 20.00.06.00, IT mode (no RAID capability reported).
WHAT YOU GETThe backplane with bracket, the HBA and the two cables. No drives, caddies, chassis, power cables or box.
SOLD AS-ISNo returns. If you need a detail we have not listed, ask before buying.
