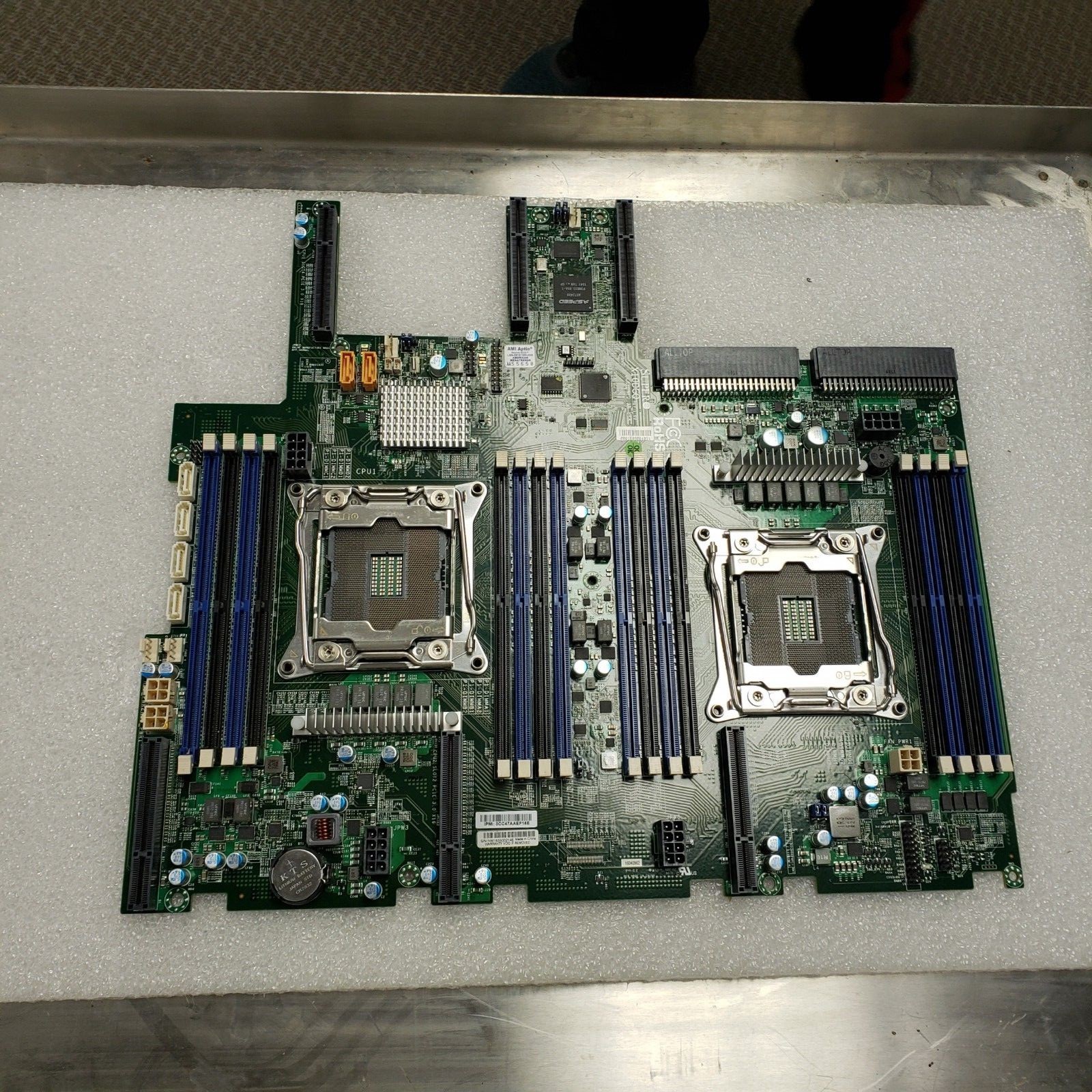

SuperMicro x10dgq Dual R3 LGA 2011 for Xeon E5 V3/V4 16 DIMM DDR4 Motherboardhere is the info from manufacturer:
1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4†/ v3 family; QPI up to 9.6GT/s2. Intel® C612 chipset3. Up to2TB†ECC 3DS LRDIMM , up to
DDR4-2400†MHz ; 16x DIMM slots4. Expansion Slots: 4 PCI-E 3.0 x16
and 2x PCI-E 3.0 x85. Dual port 10GBase-T (Intel® X540) or
Dual port GbE (Intel® i350) LAN via
optional AOM6. 10x SATA3 (6Gbps); RAID 0, 1, 5, 107. Integrated IPMI 2.0 and KVM with
Dedicated LAN8. 2x USB 3.0 ports (via headers)Product SKUsMBD-X10DGQ -B

• X10DGQ (for server SKUs only)

Physical StatsForm Factor

• 13.2" x 14.75" (33.53cm x 37.47cm)

Processor/CacheCPU

• Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP**)
• Dual Socket R3 (LGA 2011)

Cores / Cache

• Up to22 Cores†/ Up to55MB†Cache

System Bus

• QPI up to 9.6 GT/s

Note†BIOS version 2.0 or above is requiredNote** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System MemoryMemory Capacity

• 16x 288-pin DDR4 DIMM slots
• Up to 2TB†ECC 3DS LRDIMM, 512GB ECC RDIMM

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C612 chipset

AHCI SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers (via AOM)

• Intel® i350 Dual Port Gigabit Ethernet (AOM-PIO-i2G) or Intel® X540 Dual Port 10GBase-T (AOM-PIO-i2XT) Option
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Video

• ASPEED AST2400 BMC

Input / OutputSATA

• 10x SATA3 (6Gbps) ports

LAN

• 2x RJ45 Gigabit Ethernet or 10GBase-T LAN ports (via AOM options)
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2x USB 3.0 ports (via headers)

Video

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

DOM

• 2x SuperDOM(Disk on Module) ports

TPM

• 1x TPM Header

Chassis (Optimized for X10DGQ )1U Chassis

SuperServer(s) with X10DGQModel(s)

• SYS-1028GQ-TVRT
• SYS-1028GQ-TXRT
• SYS-1028GQ-TXR
• SYS-1028GQ-TRT
• 4 PCI-E 3.0 x16 slots
• 2 PCI-E 3.0 x8 slots

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1

warehouse loc: C2-TOP
