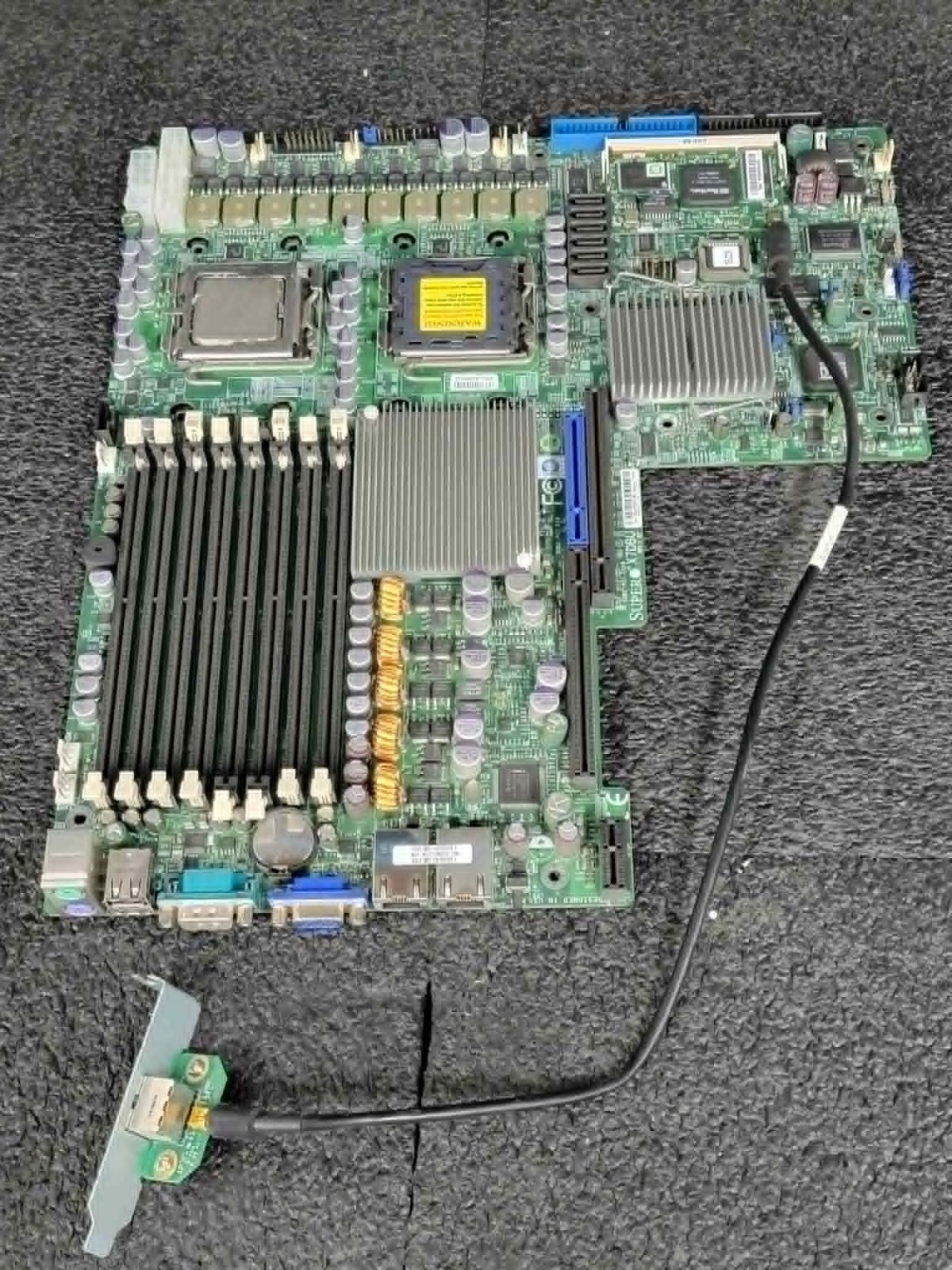

SuperMicro X7DBU dual-socket server motherboard 5100/5300/5400-series processorsused in good working order and cosmetic condition
Key specificationsFeatureSpecificationCPU sockets2 × LGA 771Supported CPUsIntel Xeon Dual-Core and Quad-Core (5100, 5300, 5400 series)ChipsetIntel 5000P + ESB2Front-side bus667 / 1066 / 1333 MT/sMemory8 × DDR2 FB-DIMM (ECC)Maximum memory32 GBMemory speedsDDR2-533 / DDR2-667 FB-DIMMStorage6 × SATA 3.0 Gb/sNetworkDual Intel Gigabit EthernetGraphicsIntegrated ATI ES1000 (16 MB)BIOSPhoenix Flash BIOSManagementSIMSO slot for optional IPMI management cardExpansion2 × PCIe x8 (one may be UIO depending on version), 1 × 64-bit PCI-X 133 MHz slot Compatible processors
Common CPU upgrades include:
- Xeon E5420
- Xeon E5430
- Xeon E5440
- Xeon X5450
- Xeon X5460
- Xeon X5470
Support depends on the BIOS version installed
Memory requirements
The X7DBU uses:
- 240-pin DDR2 Fully Buffered DIMMs (FB-DIMM)
- ECC memory only
- Up to 8 × 4 GB = 32 GB
- Modules should be installed in matched pairs (or groups of four for optimal interleaving).
Expansion and storage
The board provides:
- Six onboard SATA II (3 Gb/s) ports
- Dual Intel Gigabit Ethernet
- One legacy PCI-X slot for RAID or networking cards
- PCIe x8 slots for HBAs, RAID controllers, or 10 GbE adapters
Typical uses today
Although obsolete for production workloads, the X7DBU is still suitable for:
- Legacy industrial software
- Retro server restoration
- NAS or archival storage
- Vintage virtualization labs
- Hardware experimentation with older Xeon platforms
The platform's main limitations are high power consumption, DDR2 FB-DIMM memory (which runs relatively hot), lack of UEFI, and SATA II instead of SATA III. Modern Xeon or EPYC systems provide significantly better performance per watt
Excess inventory from local company. tested working order. Please take the time to review the actual picture of the unit for extra reference on the item, unit pictured is the actual item you will be receiving.For items with multiple quantities, please keep in mind. Some may have more wear than others.See pic, no other accessories provided. If you have any questions or concerns in regard to this unit, please feel free to take the time to contact us before offerding.Questions? Contact Us!If you have complicated technical questions or if you have questions about how the item will be packed and shipped, please feel free to call or email us.
IMPORTANT INFORMATION - PLEASE READ Please read the ITEM DESCRIPTION to see everything that is included. Some parts and accessories that are shown in the photos are not included as they are used totest the item. The ITEM DESCRIPTION will let you know if a part or accessory is not included. We are not familiar with every item we sell. Some items may have missing parts or accessories, and we do not realize they are missing. Do NOT assume parts or accessories are included. If they are not in the photos or in the description, then they are not included. Please review the description and photos carefully. If you are not sure if an item is included, email us BEFORE buying or making an offer.
