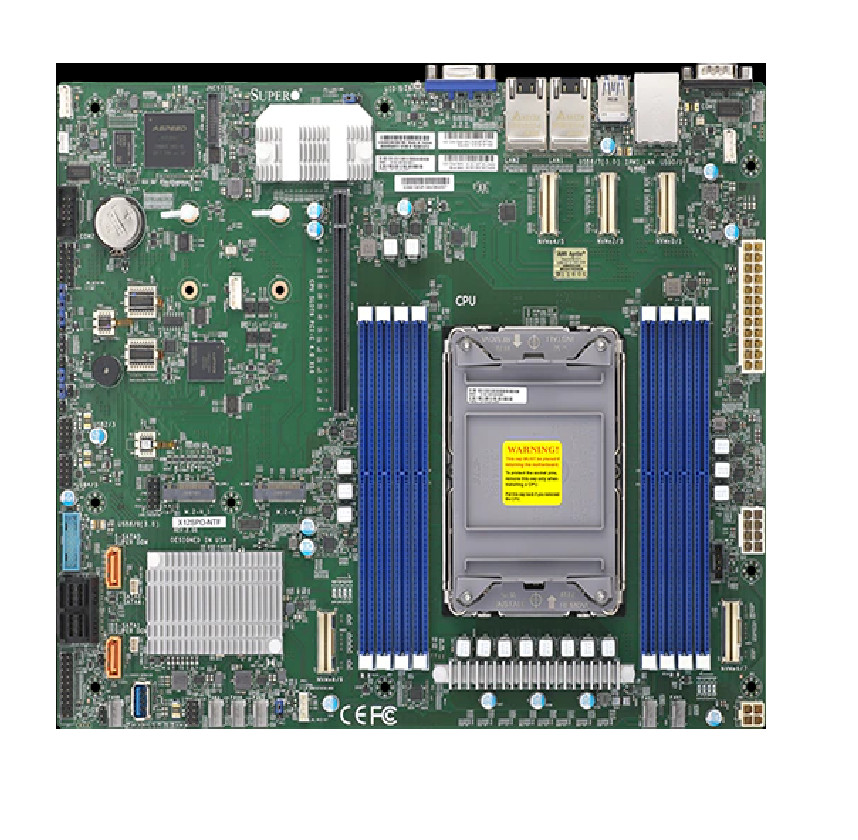

Physical Stats
Form Factor

• ATX

Dimension

• 12" x 10" (30.48cm x 25.4cm)

Processor
CPU

• 3rd Gen Intel® Xeon® Scalable processors
• Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

• Up to 40 cores

System Memory
Memory Capacity

• 8 DIMM slots
• Up to 2TB Intel® Optane™ Persistent Memory 200 Series
• Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

• 3200/2933/2666MHz ECC 3DS , DDR4 LRDIMM, RDIMM

DIMM Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset

• Intel® C621A

SATA

• Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• ASPEED AST2600 BMC

Graphics

• ASPEED AST2600 BMC

Network Controllers

• Dual LAN with Intel® X550 10GBase-T Ethernet Controller

Input / Output
SATA

• 10 SATA3 (6Gbps) port(s)

LAN

• 2 RJ45 10 Gigabit Ethernet LAN ports

USB

• 6 USB 2.0 port(s) (4 via header; 2 rear)
• 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)

Video Output

• 1 VGA port(s)

Serial Port

• 2 COM Port(s) (1 header; 1 rear)

DOM

• 2 SATA DOM (Disk on Module) power connector support

TPM

• 1 TPM Header

Expansion Slots
PCI-E

• 1 PCI-E 4.0 x16

M.2

• M.2 Interface: 2 SATA/PCI-E 3.0 x4
• Form Factor: 2280/22110
• Key: M-Key

System BIOS
BIOS Type

• AMI UEFI

BIOS Features

• ACPI 6.2
• SMBIOS 3.0 or later
• UEFI 2.7

Management
Software

• SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog

Power Configurations

• Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection

PC Health Monitoring
Voltage

• VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status

LED

• UID/Remote UID
• Suspend static indicator LED
• CPU / System Overheat LED

Temperature

• CPU thermal trip support
• PECI

FAN

• 7x 4-pin fan headers (up to 7 fans)
• System level control
• PWM fan speed control
• Fan speed control
• Overheat LED indication

Other Features

• WOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT

• 10% - 95% (non-condensing)

Operating Environment
Operating Temperature Range

• 0°C - 50°C (32°F - 122°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 10% - 85% (non-condensing)

Non Operating Relative Humidity Range
Product SKUs
MBD-X12SPO-NTF

• X12SPO-NTF
