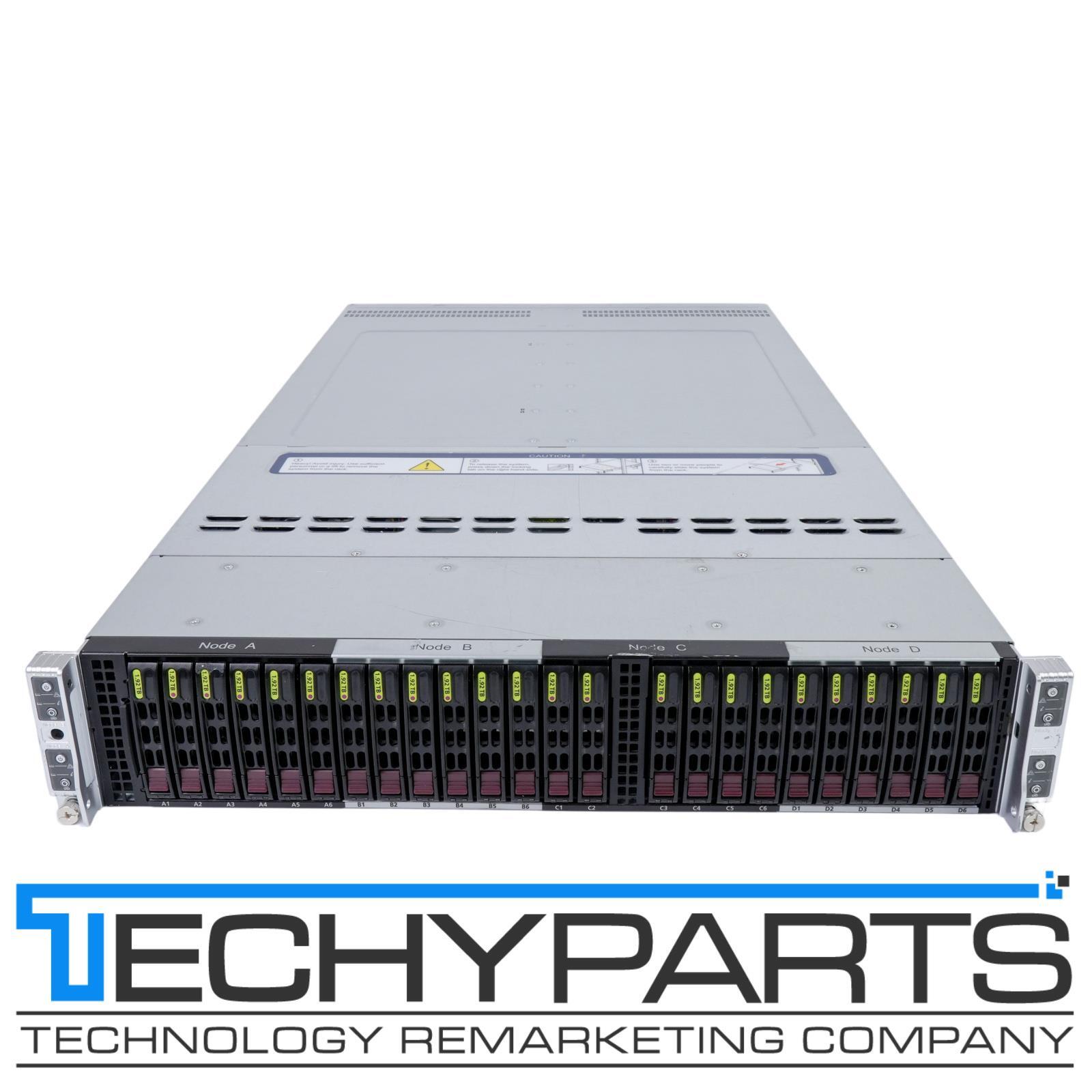

Store Newsletter Add TechyParts to your Favorites to receive our email newsletters about new items & special promotions. SIGN UP SuperMicro 2029BT-HNC1R 2U 24-Bay 4-Node X11DPT-B SuperServer CTO w/AOC-MTG-i2TM Product Description SuperMicro 2029BT-HNC1R 2U 2.5" SFF 24-Bay 4-Node X11DPT-B SuperServer CTO with SupermicroAOC-S3108L-H8IR-16DD RAID Controllerand AOC-MTG-i2TM SIOM Key Applications / Features: - Compute Intensive Application
- HPC, Data Center, Enterprise Server
- Hyperscale / equipment. Clean and tested by a qualified technician. NO CPUs/NO MEMORY/NO HDDs. Rackmount rails are not (nodes) in a 2U form factor. Each node supports the following:
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalableprocessors (Cascade Lake/Skylake)‡
- 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
- 1 PCI-E 3.0 x16 (LP) slot
- Supermicro AOC-MTG-i2T 2-port Intel X550 10GbE RJ45 Ethernet Controller Super I/O Module (SIOM)
- 1 Carrier Card slot (for M.2 support)
- IPMI 2.0 + KVM with dedicated LAN
- 6x SAS3 or 4x NVMe + 2x SAS3 Hot-swap 2.5" drive bays;
- 2x M.2 SATA3 or NVMe support via optional AOC-SMG3-2H8M2-B (not included)
- SAS3 support via Broadcom 3108 based Supermicro AOC-S3108L-H8IR-16DD-PRAID 0, 1, 5, 6, 10, 50, 60 Controller
- 2200W Redundant Titanium Level(96% efficiency)Power Supplies
Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-X11DPT-B CSE-217BHQ+-R2K22BP2 4 1 Super X11DPT-B Motherboard 2U Chassis Backplane AOC-S3108L-H8IR-16DD-P 4 SupermicroAOC-S3108L-H8iR-16DDBroadcom 3108 based RAID Controller Backplane BPN-SAS3-217BHQ-N4 1 2U 4-Node 24-Port Backplane Supports 2x2.5\" SATA3/SAS3 SSD/HDD and 4x2.5\" SATA3/SAS3/NVMe Storage Media per Node Cable CBL-SAST-0846-1 4 SLIMLINE SAS to MiniSAS HD 2X,INT,48CM, SB Drive Tray(s) MCP-220-00047-0B 24 Supermicro Black (Gen 3) Hot-Swap 2.5" Drive Tray Caddy Parts MCP-240-21730-0N 1 217B BigTwin type I (Impact) BPN retention bkt w/ foam assy Riser Card RSC-P-6 4 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot Heatsink / Retention SNK-P0067PS 4 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism Heatsink / Retention SNK-P0067PSM 4 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism Fan FAN-0183L4 4 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan Super I/O Module AOC-MTG-i2T 4 2-port Intel X550 10GbE RJ45 Ethernet Controller SIOM Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48 Condition:Off-lease equipment. Clean and tested by a qualified technician.NO CPUs/NO MEMORY/NO HDDs.Rail kit is not included. 30-Day Warranty!Manufacturer's description and specifications: Product SKU SYS-2029BT-HNC1R - SuperServer 2029BT-HNC1R (Black)
Motherboard Super X11DPT-B Processor (per Node) CPU - Dual Socket P (LGA 3647)
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s
- Support CPU TDP 70-205W*
Cores Note * 200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization Note ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).
Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. System Memory (per Node) Memory Capacity - 24 DIMM slots
- Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
- Supports Intel® Optane™ DCPMM††
Memory Type - 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
††Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices Chipset SAS - SAS3 (12Gbps) via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
Network - Must bundle with at least oneSIOMnetwork card
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video Input / Output (per Node) LAN - 1 RJ45 Dedicated IPMI LAN port
USB Video DOM - 1 SuperDOM(Disk on Module) port
Others - M.2 and SATA DOM for boot drive only
System BIOS BIOS Type Management Software - Intel® Node Manager
- IPMI 2.0
- KVM with dedicated LAN
- SSM,SPM,SUM
- SuperDoctor® 5
- Watch Dog
Power Configurations - ACPI / APM Power Management
PC Health Monitoring CPU - Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
FAN - Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
Chassis Form Factor Model Dimensions and Weight Width Height Depth Package - 24.65" (H) x 9.76" (W) x 45.28" (D)
Weight - Gross Weight: 85 lbs (38.6kg)
- Net Weight: 54.5 lbs (24.7 kg)
Available Colors Front Panel Buttons - Power On/Off button
- UID button
LEDs - Power status LED
- HDD activity LED
- Network activity LEDs
- Universal Information (UID) LED
Expansion Slots (per Node) PCI-Express - 1 PCI-E 3.0 (x16) Low-profile slots
- 1SIOMcard support
(must bundle with network card) Drive Bays / Storage (per Node) Hot-swap - 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5"
Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. M.2 - 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B
System Cooling Fans - 4 Heavy duty 8cm PWM fans with air shroud
Power Supply 2200W Redundant Power Supplies with PMBus Total Output Power - 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L) Input - 1200W: 100-127Vac / 50-60Hz
- 1800W: 200-220Vac / 50-60Hz
- 1980W: 220-230Vac / 50-60Hz
- 2090W: 230-240Vac / 50-60Hz
- 2090W: 180-220Vac (for UL/cUL only)
- 2200W: 220-240Vac (for UL/cUL only)
- 2090W: 230-240Vdc (for CCC only)
+12V - Max: 100A / Min: 0A (100-127Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 174.17A / Min: 0A (230-240Vac)
- Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
- Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
- Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb Output Type Certification Titanium Level Operating Environment RoHS Environmental Spec. - Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
