Sun Blade 1000 / 2000 / Sun Fire 280R / Netra 20 System Board
Part# 501-6230Manufacturer: Sun MicrosystemsDescription: System Board 0MB Memory / 0GHz CPUCondition: Clean, Pull, Guaranteed Working
Supported Sun Systems:

• Sun Blade 1000 / A28
• Sun Blade 2000 / A29
• Sun Fire 280R / A35
• Netra 20 / N28

Supported CPUs:

• X7009A - 501-6747 = 900MHz UltraSPARC III Cu Module
• X7017A - 501-6749 = 1050MHz UltraSPARC III Cu Module
• X7064A - 501-6395 = 1015MHz UltraSPARC III Cu Module
• X7310A - 501-6750 =1200MHz UltraSPARC III Cu Module
• 501-6002 = 900MHz UltraSPARC III Cu Module
• 501-6254 = 1050MHz UltraSPARC III Cu Module
• 501-6396 =1050MHz UltraSPARC III Cu Module
• 501-6485 =1200MHz UltraSPARC III Cu Module
• 501-6690 =1200MHz UltraSPARC III Cu Module
• 501-6745 =1200MHz UltraSPARC III Cu Module
• 501-6748 =1015MHz UltraSPARC III Cu Module
• 501-6805 = 1200MHz UltraSPARC III Cu Module
• CPUs are not included.

Supported Memory:

• X7050A - 512MB Kit = 4x 501-4489 128MB SDRAM DIMMs
• X7051A - 2GB Kit = 4x 501-7385 512MB SDRAM DIMMs
• X7052A - 4GB Kit = 4x 501-5031 1GB SDRAM DIMMs
• X7053A - 1GB Kit = 4x 501-5401 256MB SDRAM DIMMs
• X7061A - 1GB Kit = 4x 501-6175 256MB SDRAM DIMMs
• X7062A - 2GB Kit = 4x 501-6174 512MB SDRAM DIMMs
• X7063A - 4GB Kit = 4x 501-6173 1GB SDRAM DIMMs
• Memory Not Included

Manufacturer Notes:

1. The minimum Sun Blade 1000 operating system is Solaris 8 10/00.
2. The minimum Sun Blade 2000 operating system is Solaris 8 2/02.
3. The minimum Sun Fire 280R operating system is Solaris 8 1/01.
4. The minimum Netra 20 operating system is Solaris 8 4/01.
5. The system will not boot without a CPU module in Slot 0.
   If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
6. The minimum memory requirement is four DIMMs in any group.
7. Each group addresses 4GB memory.
8. Memory slots (Jxxxx) map to same-numbered DIMMs Notes:

   1. Sun Fire 280R is not compatible with 501-4143.
   2. Netra 20 was not tested with 501-4143.
   3. Netra 20 requires OBP 4.2 Version 4 and FIRE-I V1.2 (U2107).
   4. Netra 20 comes up as a Netra T4 with OBP 4.2 Version 4.
   5. Sun Blade 2000 is identified as Sun Blade 1000 with OBP 4.5v10.
   6. OBP 4.2v4 and FIRE-I V1.2 are on 501-5938-07 and 501-6230-01.
   7. SCHIZO 2.4 is installed on 187 501-6230-07 boards labeled DEV 24943.
   8. The Sun Fire 280R and Netra 20 are not compatible with 501-6230-07
      (approximate ship dates = October 2002 to mid-February 2003).
   OBP Notes:
   1. The PROM contains Sun Blade 1000 and Sun Fire 280R OBP images.
   2. Sun Fire 280R and Netra 20 share the same OBP image.
   3. Sun Fire 280R requires a Remote System Control (RSC).
   4. Sun Fire 280R OBP is enabled when RSC is probed.
   5. Sun Blade 1000 OBP is enabled when RSC or Alarm are not probed.
   6. Netra 20 requires an Alarm Module and a System Configuration Card.
   7. Netra 20 uses the System Configuration Card MAC address and Hostid.
   8. Netra 20 Power Distribution Board includes an lm80 device.
   9. Netra 20 probes for SCCR, lm80, then Alarm during power-up.

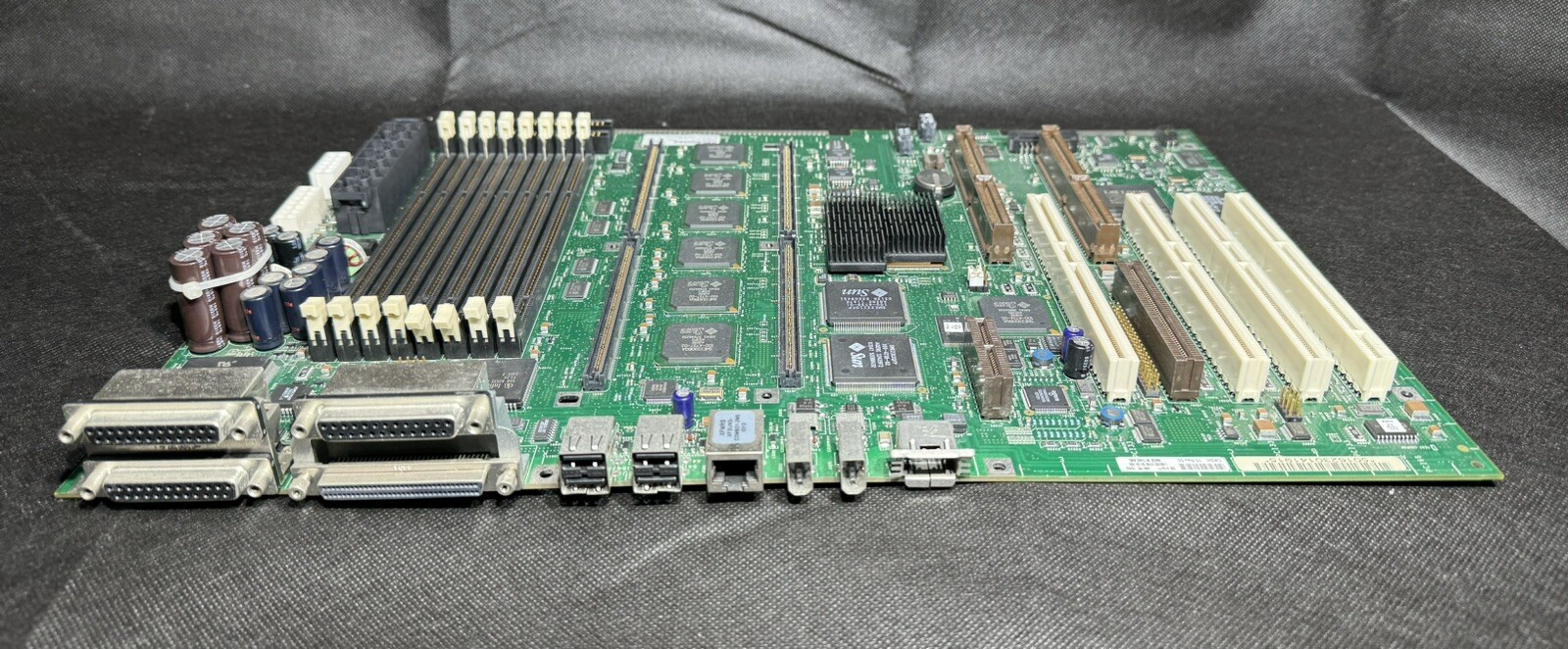

   You are purchasing the 501-6230 System board pictured.
