Sun 501-3059 SPARCstation 5 170MHz System Board, 0MB 501-3103, Tested For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

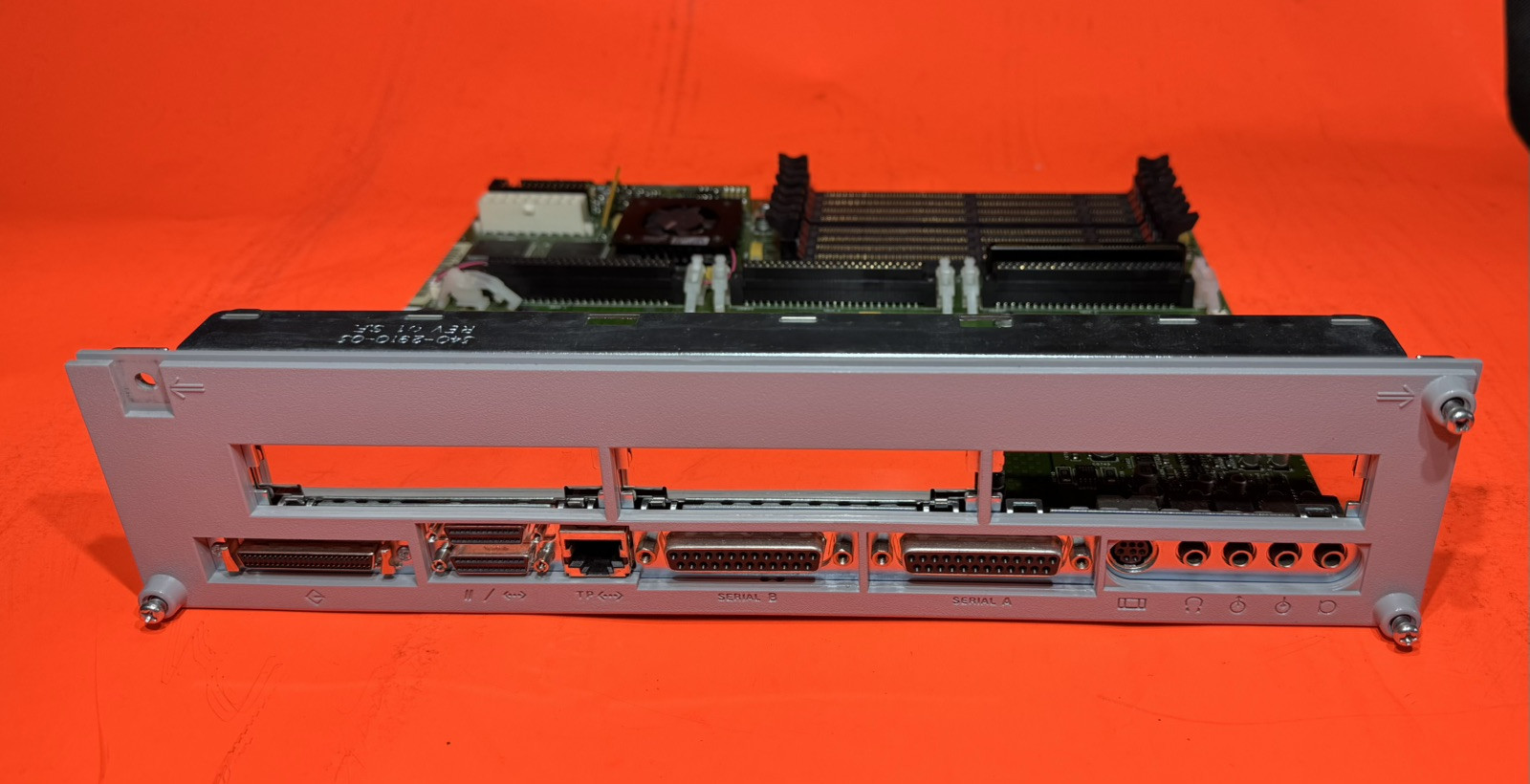

Sun 501-3059 SPARCstation 5 170MHz System Board, 0MB 501-3103, Tested
Price: US $995.00
Sun SPARC 5 170MHz System Board Part# 501-3059 / 501-3103Manufacturer: Sun MicrosystemsDescription: 170MHz System Board for Sun SPARCstation 5Condition: Vintage Sun, Clean, Tested 501-3059 Specifications:
System Board
170MHz TurboSPARC CPU
0MB Memory
3x SBUS Slots
1x AFX Bus (used for 501-2337 GFX)
8x Memory Slots
525-1369 NVRAM (needs replacing)
External Ports:
HD50 SCSI
HD26 Parallel / HD26 AUI
10BASE-T Ethernet
Serial A DB25
Serial B DB25
Keyboard Din8 Connector
Headphone Jack
Out Jack
In Jack
Microphone Jack
Supported Sun Workstations:
Sun SPARCstation 5
Manufacturer Notes:
The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 Edition II.
SS5 audio requires the Solaris 1.1.1 Version B ms2 patch.
SS5 S24 configurations require Solaris 2.3 Hardware: 8/94.
Install the highest capacity SIMM in Slot 0 under Solaris 1.x.
Use the MFAR value to determine the address of a failing SIMM.
The PLCC Boot PROM is not a FRU and is not field replaceable.
Serial Ports A and B support synchronous operation.
Sun Microsystems 170MHz TurboSPARC CPU fun facts:
Launch Year: 1996
SPARC V8 instruction set
Developed by Fujitsu Microelectronics, Inc / Fujitsu Limited / located in San Jose California.
The performance of the 170 MHz TurboSPARC was similar to that of a 120 MHz Intel Pentium, but when compared to a 110 MHz microSPARC-II, it had two times the integer performance and one and a half times the floating-point performance.
You are purchasing the 501-3059 Sun SPARC5 170MHz System Board pictured. Guaranteed Working. Ships SAFE and Fast!!!
