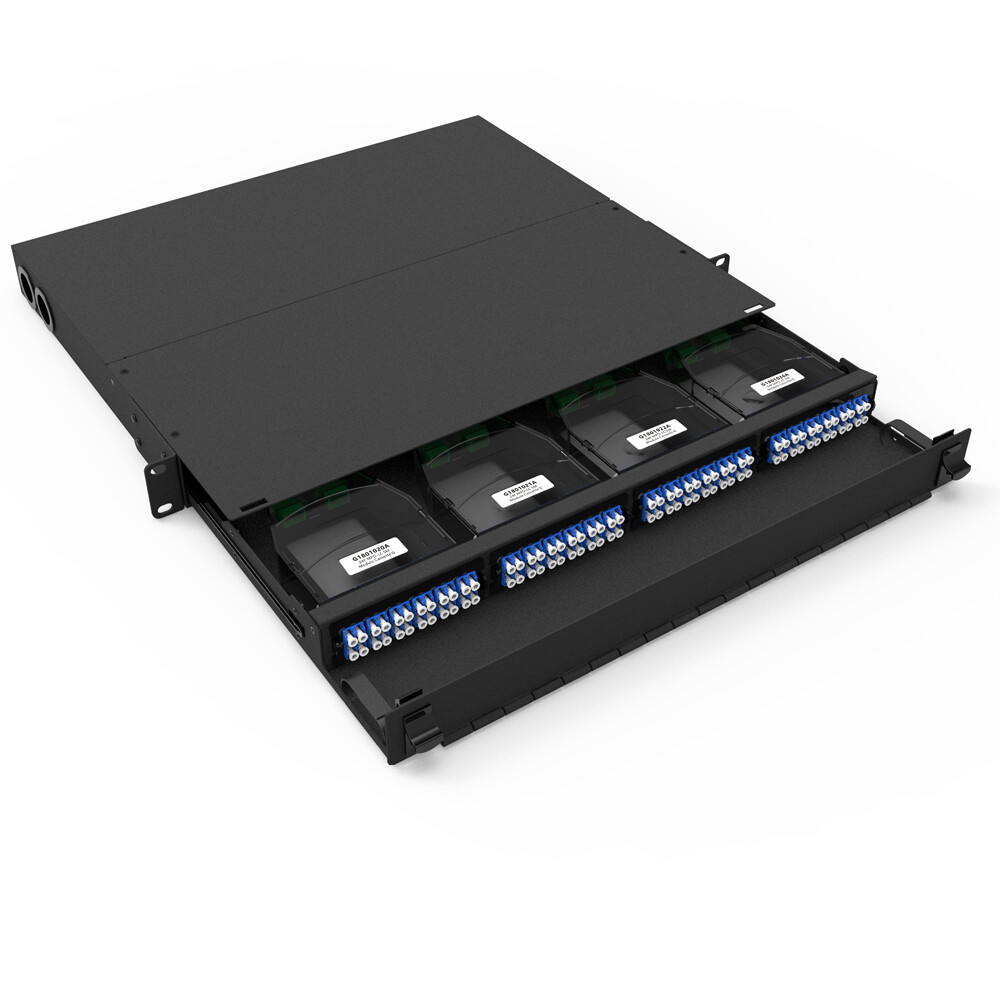

MPO Fiber Cassette Module/ Fiber Optic MPO Patch Panel
Modular and snapping fit design, which offers great convenience to installers at the site for installations as well as future maintenances and services. With the universal system and MPO interface, it will provide a trouble-free connection between fiber cable and types of equipment as well as ensure the channel has the best flexibility, compatibility, and reliability.
Product line construction
pre-terminated MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and L class(super low loss).
- 12-fiber MPO(M) to LC duplex connector
- All metal compact breakout protector, leading internal crimp process, most reliable.
- LC end with number tube label, easy identification.
- Available in G and L class help your budget control.
- Available divider type or join type LC duplex.
- All length cable is available based on your demand.
Applications
Datacenter rack mount patch panel
The connection between trunk cables to patch cords
Pre-terminated system installation
In order to ensure the entire connection is in a unified condition, we need to first install patch panel, cassette module and related mounting hardware. Then, say the cables in designed cable passage position, remove all the protection caps and wraps, connect MPO and to all the related MPO sockets, mount and secure the cables with cable ties, simple as that.
Installation steps
1. Install accessories and hardware
2. Cable laying
3. Plug device
4. Cable mounting
