Built on NVIDIA Jetson Orin, the ZED Box Mini delivers high performance in a small form factor. Its flexible I/O and GMSL2 support make it perfect for large-scale deployments.

General Specifications

• • Aluminum case passively cooled
  • Dimensions: 152.8 × 103.8 × 41.5 mm (L×W×H) / 6.02 × 4.09 × 1.63 in
  • Mounting options: 92×45mm mounting holes
  • Weight: 600 g (1.32lb)
  • Power: DC-IN 10.5V to 13.5V — 60W max
  • Screwable Terminal block connector TBP01P1W-508-02GR
  • SSD 256GB mounted on M.2 Key-M 2242 socket

AI Module

• NVIDIA® Jetson™ Orin Nano 4GB module
  Ai Performance: 20 TOPS

Supplied with Jetpack version JP6.2 L4T36.4. 'Super' mode unavailable at this time.

WiFi Option

• WiFi 6 connectivity with 1xIntel AX210 Module mounted on M.2 Key-E 2230 socket and with2x 2.4/5GHz WiFi antennas


I/O interfaces

• 2x GMSL2 FAKRA-Z connectors*

• 1x USB3.0 Type-A
• 1x 10/100/1000 Base-T Ethernet RJ45

• 1x HDMI 1.4
• 1x Micro USB2.0 Type-B for system flashing & OTG
• 1x GMSL2 camera synchronization trigger input
• 1x GMSL2 cameras synchronization trigger output
• 1x 12V fan entry

• Miscellaneous connector includes:1x CAN, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND

*The ZED Box Mini is limited to only 1x ZED X One 4k input,
2x inputs are compatible with all other camera models.

**The ZED Box Mini Orin Nano 4GB/8GB does not support video streaming (encoding) yet.What's in the Box

• 1x ZED Box Mini
• 1x Power Supply
• 2x Sync Connectors (No cables)
• 1x Micro-USB to USB cable
• 2x 2.4/5GHz WiFi antennas (if WiFi is selected)

Compact AI computing for scalable robotics and vision systems. Built on NVIDIA Jetson Orin, the ZED Box Mini delivers high performance in a small footprint.

Key Features

• Powered by NVIDIA Jetson Orin Nano or Orin NX
• GMSL2 camera interfaces for stereo and monocular vision integration
• Compact, fanless aluminium enclosure
• Optional WiFi connectivity
• Pre-integrated with the ZED SDK for spatial mapping, object detection, and AI analytics
• Ideal for space-constrained robots and embedded edge AI deployments

AI Module Options

• NVIDIA® Jetson™ Orin Nano 4GB

Description

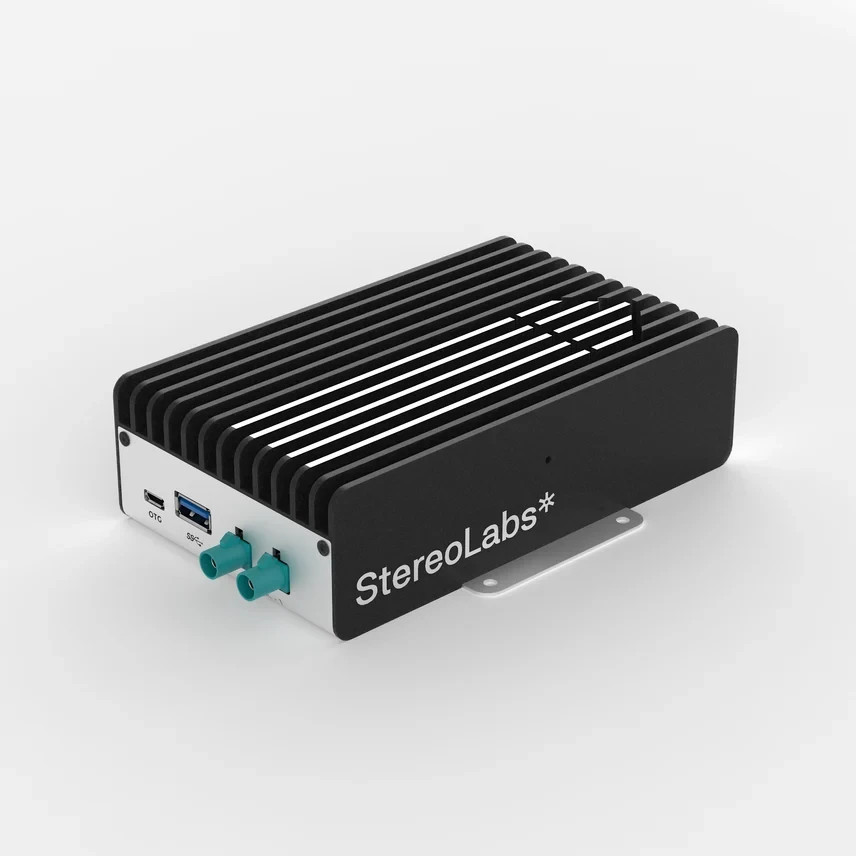

The Stereolabs ZED Box Mini Nano 4GB 256GB WiFi (ZBX-420110) is a compact embedded AI computer built around the NVIDIA Jetson Orin Nano 4GB module. It is designed for AI vision, robotics, computer vision, autonomous systems, and edge-AI applications. The unit includes a 256GB M.2 SSD and Wi-Fi 6 connectivity.

Features

• NVIDIA Jetson Orin Nano 4GB
• 256GB SSD
• Integrated Wi-Fi 6
• Dual GMSL2 camera interfaces
• Compact aluminum enclosure
• Designed for AI and computer-vision applications
• Ethernet connectivity
• HDMI output
• USB 3.0
• Micro-USB 2.0 for flashing/OTG
• CAN, UART and GPIO interfaces
• Passive aluminum cooling with optional fan support
• Supports Stereolabs ZED camera systems
• Compact design for robotics and edge computing Box Mini Nano 4GB 256GB WiFiPart NumberZBX-420110AI ModuleNVIDIA Jetson Orin Nano 4GBAI Performance20 TOPSStorage256GB SSDWi-FiWi-Fi 6, Intel AX210GMSL22 × GMSL2 camera portsUSB1 × USB 3.0 Type-AEthernet10/100/1000 Mbps RJ45Video OutputHDMI 1.4Dimensions152.8 × 103.8 × 41.5 mmWeightApprox. 500–600 gOperating Temperature-20°C to +50°CPower Input10.5–13.5V DCMaximum Power60WMounting92 × 45 mm mounting holesCountry of OriginFrance
