8 Relay Outputs
1 USB Interface Programming Cable
1 Power Supply 24V input 120/240VAC

with BONUS Training CourseThe basic ladder logic Programmingsoftware

Software is FREE, cost includeexamples and data compilation

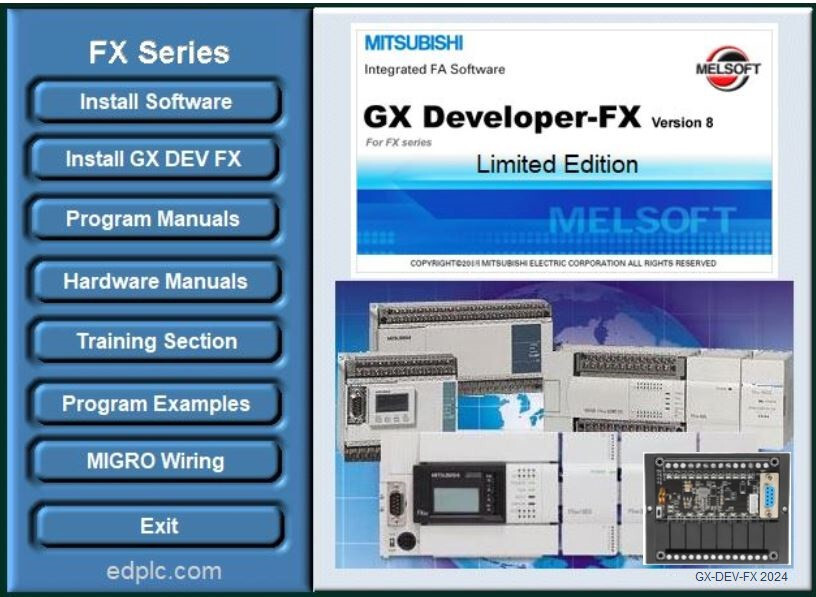

GX Developer Programming SoftwareGX-DEV FX- 8.25

Features: 1000 steps LadderDiagram,andInstructionList

Software supports all this FX processors

FX0/FX0S, FX0N, FX1S, FX1N, FX(FX2/FX2C) FX2N/FX2NC.

FX3u

FX MELSEC single user FX Win Version 8.25, 1000 step for FX PLCs controllers series.
This is the standard software easy to use and simple, intuitive interface and a short learning curve.

Full upload and download, monitor, test and program all the Mitsubishi FX-series PLC
package includes CD with the software and manuals in electronic format for programming and hardware installation .

Operating Voltage:DC24（V）
Wide Power SupplyVoltage: 10-28VDC
Baud Rate: 9600
Programming Software:for GX-Developer, for GX-work2.
Size: Approx. 86 x 73x 20mm / 3.4 x 2.9 x 0.7inch
Weight: 120G Module function:
This module isprogrammable control, can achieve thousands of functions, stable and reliableworking performance, built-in watchdog timer circuit, to ensure that the modulefor a long time to run!!!
Some of the commonfeatures are shown as follows:

• Turn on the power supply, the relay 1 is closed for N seconds and then disconnect the relay 2 for N seconds.
• When the power supply is turned on, the relay 1 is switched off after N seconds, and then the relay 2 is closed for N seconds and then is turned off.
• The power supply is switched on, the relay 1, 2 have no action, when a signal or trigger button, relay 1 closed off after N seconds; then relay 2 closed off after N seconds, until the next trigger, repeat the same action.
• Through the signal 1, 2 programming, the control can be achieved on the relay 1 and 2 arbitrarily.
• When the signal 1 has a signal, the relay 1 is closed, the relay 2 is disconnected; when the signal 2 has a signal, the relay 1 is turned off, and the relay 2 is closed.
• Can be connected to the NPN sensor signal, the sensor signal programming, to achieve arbitrary control of the relay.
• When the signal 1 is triggered, the relay 1 is controlled, and when the signal 2 is triggered, the relay 2 is controlled.
• Turn on the power supply, the control motor is turning N seconds, and then reverse N seconds, followed by the cycle.
• When the signal 1 has a signal, the motor is controlled to rotate; when the signal 2 has a signal, the motor is reversed.

• Input high speed pulse C235, C251 and FX1N compatible.
• Output relay 1A output, Rated current 5A, can directly drive DC solenoid valve, AC solenoid valve, AC contactor, AC motor, etc,.

• The PLC with two programming port. The 232 interface, you can directly use the USB-232 serial port with a computer to download the program directly. The TTL interface.
• Built-in Analog input AD, corresponding to internal data register D5030.(Not D8030)
• Built-in Analog output DA, corresponding to internal data register D5101.
• When the PLC need to connect with the touch screen or text, can be used to connect 232 programming port.
