Sirio CELL 918 Mariner 880-960 MHz & 1700-2170 MHz Dual Band GSM Base Antenna
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Sirio CELL 918 Mariner 880-960 MHz & 1700-2170 MHz Dual Band GSM Base Antenna
Price: BE $43.67

Sirio CELL 918 Mariner 880-960 MHz & 1700-2170 MHz Dual-Band GSM Base Antenna

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

INCLUDING STAND & CABLE

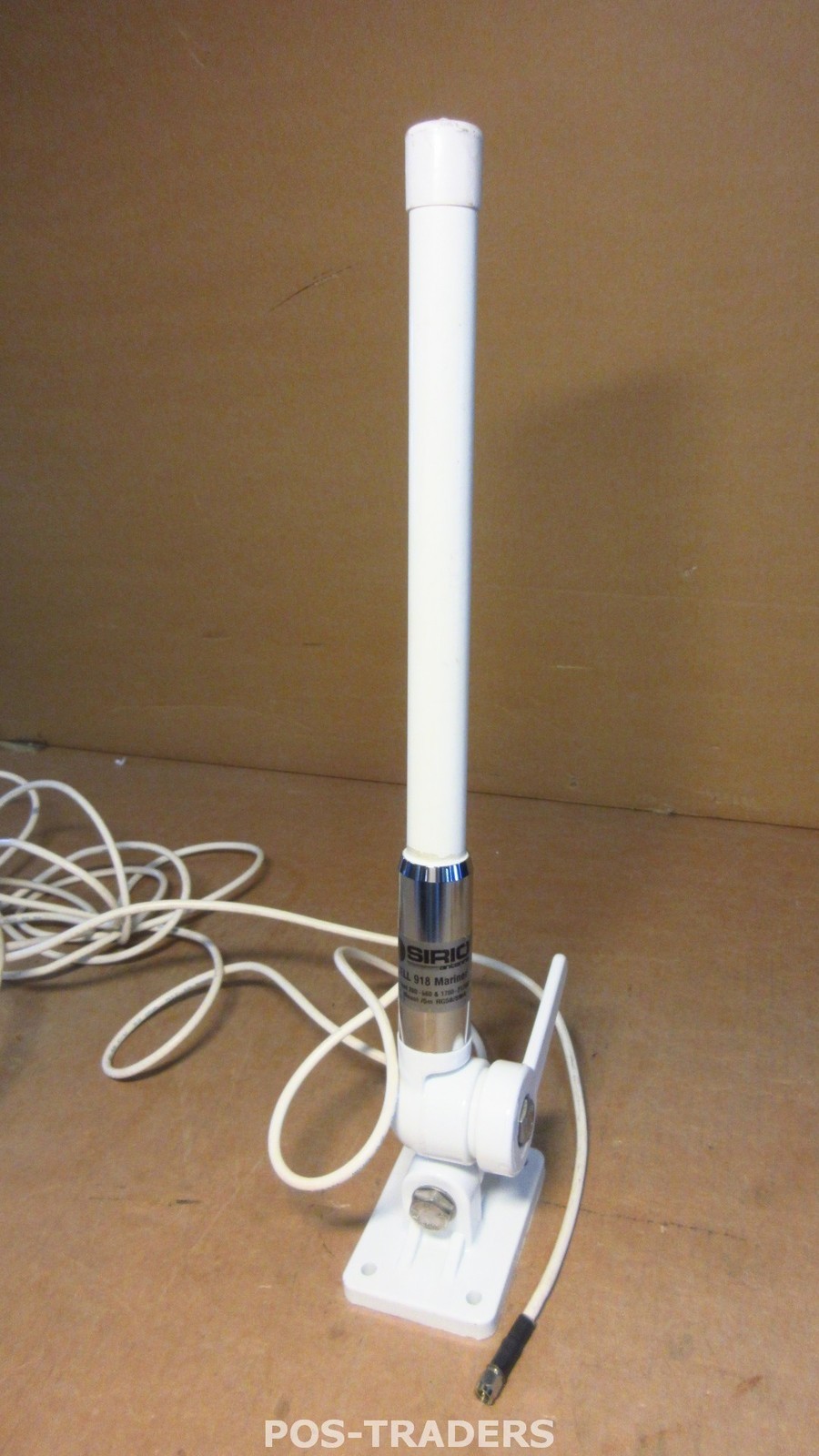

See photos for actual item!

Price is for 1 item.

Features:

  • Marine antenna, Dual-band
  • Unity-gain, Omnidirectional
  • Perfect protection against the worst weather conditions
  • Protection from static discharges DC-Ground
  • Chrome-plated brass ferrule
  • 180° inclination and adjustable whip
  • Supplied with white coaxial cable RG-58 C/U directly connected
  • For GSM 900 & 1800,PCN,DECT and UMTS systems

    Electrical Data

  • Type: 1/2λ dipole
  • Frequency range: 880-960 MHz & 1700-2170 MHz for GSM 900 & 1800,PCN,DECT and UMTS systems
  • Impedance: 50Ω
  • Radiation (H-plane): 360° omnidirectional
  • Radiation (E-plane): beamwidth @ -3 dB = 50°
  • Radiation angle: 0°
  • Polarization: linear vertical
  • Gain: 0 dBd - 2.15 dBi
  • SWR in bandwidth: ≤ 2
  • Max. power (CW) @ 30°C: 20 Watts
  • Standard mount: "M-8" NY
  • Cable length / Type: 5 m / white RG 58
  • Connector: SMA-Male

    Mechanical Data

  • Materials: Materials: Chromed Brass, Fiberglass, Nylon
  • Height (approx.): 420 mm
  • Weight (approx.): 470 gr
  • Operating temperature: -20° C to +80° C

    • Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
