Compact design with a depth of 140mm for easy integration
80 PLUS Gold certification
100% modular cables
24/7 continuous power output with 40? operating temperature
Class-leading single +12V rail
Strict ±2.5% voltage regulation and low ripple & noise (V2.0)
Silent running 120mm fan with 18dBA minimum

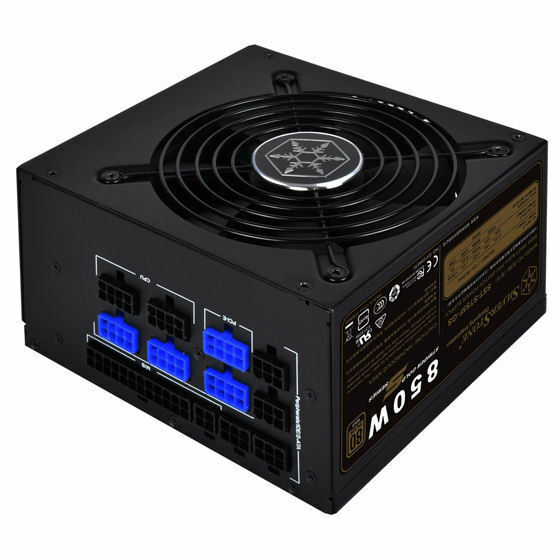

Model No.
SST-ST85F-GS (V2.0)
Max. DC Output
850W
Load Range (%)±2.5%±2.5%±2.5%±5%±5%
Line density
471W per liter
Color
Black (lead-free paint)
Combined +3.3V & +5V
120W
Combined +12V
850W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.(PF>0.95 at Full Load)
Efficiency
87%~90% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector(600mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
4 x 8/6-Pin PCIE connector(”550mm/150mm” x 2)
2 x 8/6-Pin PCIE connector (550mm x 2)
8 x SATA connector("600mm /150mm / 150mm / 150mm" x 2)
6 x 4-Pin Peripheral connector(”600mm / 150mm / 150mm” x 2)
2 x 4-Pin Floppy connector(100mm x 2)
Cooling System
Single 120mm silent fan
Form factor
ATX
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.55 kg
Certification
80 PLUS Gold
