￭ Top-level efficiency with 80 PLUS Titanium certification
￭ All Japanese capacitors
￭ 100% modular cables
￭ 24/7 continuous power output with 50℃ operating temperature
￭ Class-leading single +12V rail
￭ Strict ±3% voltage regulation and low ripple & noise
￭ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support
￭ Ultra silent 135mm fan with intelligent semi-fanless operation

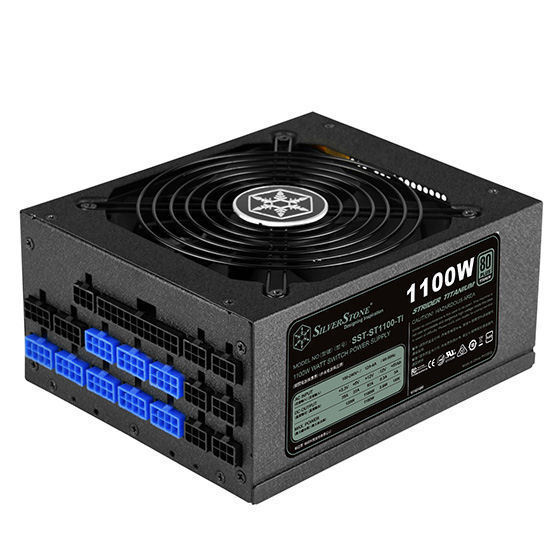

Model No. SST-ST1100-TI Max. DC Output 1100W (Peak 1200W) Power density 474W per liter Load Range +3.3V +5V +12V1 +12V2 +5VSB -12V Max.(Amps) 25A 22A 92A / 3.0A 0.3A Peak (Amps) / / / / / / Min.(Amps) 0A 0A 0.15A / 0A 0A Range (%) ±3% ±3% ±3% / ±5% ±10% Line Reg.(%) ±1% ±1% ±1% / ±1% ±1% Ripple(mVp-p) 50mV 50mV 120mV / 50mV 120mV Color Black (lead-free paint) combined +3.3, +5V 120W Combined +12V 1100W Input Voltage 90 ~ 264 Vrms Input Frequency Range 47Hz ~ 63Hz PFC Active PFC (PF>0.9 at full load) Efficiency 90% ~ 94% at 10% ~ 100% loading MTBF 100,000 hours Operating temperature 0 ~ 50°C Protection Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection Connectors 1 x 24 / 20-Pin motherboard connector (550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)
8 x 8 / 6-Pin PCIE connector ("550mm" x 8)
16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4)
6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2)
1 x 4-Pin Floppy adapter connector (100mm) Cooling System Single 135mm silent fan Form factor ATX Noise Level 0 ~ 36 dBA Dimension 150 mm (W) x 86 mm (H) x 180 mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D) Weight 3.96 kg Certification 80 PLUS Titanium Other
Compatible with ATX12V v2.4
