Signal amplifier: 2.4GHz gain, wireless WIFI router, network card, AP amplifier

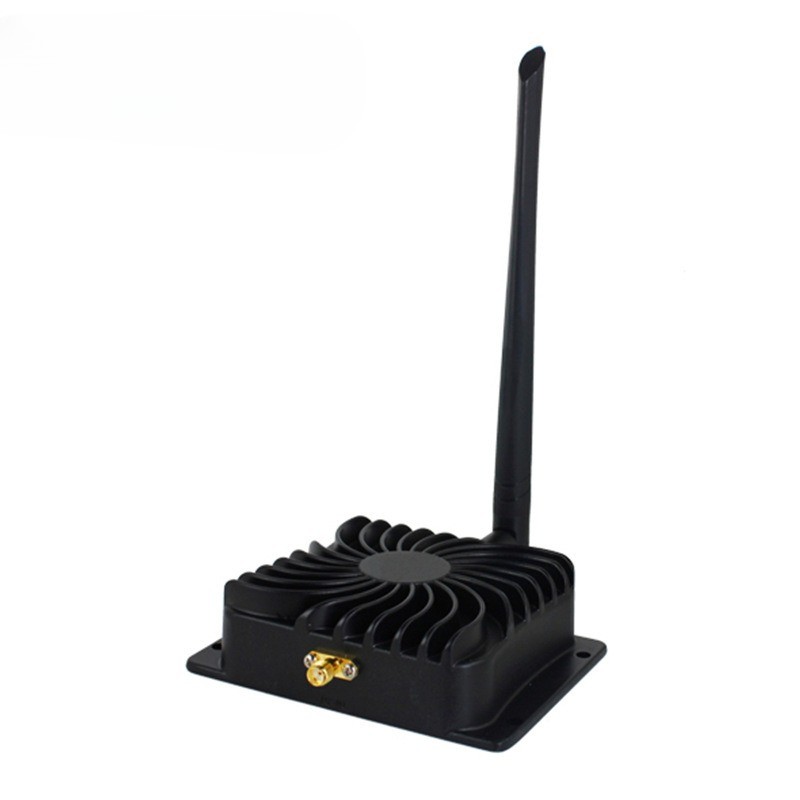

EDUP 5W 11b/g/n Tri-Band Wireless Signal Amplifier/Wireless WIFI Amplifier
The wireless signal amplifier is suitable for home/office and public places, routers, wireless network cards, and wireless monitoring equipment.
Product standard: IEEE802.11 B/G/N
Frequency of 2500 MHz: 2400 -2500MHz
Impedance: 50Ω
RF Output Power: 3000MW [35dBm]
Emission gain: 13-17 dB
Receiver Gain: 8 - 12dB
Noise factor: 3.0 dB (typical)
Operating temperature: -40°C to +70°C
Operating humidity: up to 95°
Housing: Aluminum
Weight: 400g
Size: 6.5X3.0×1.5 cm
Usage:
1. First remove the antenna on the wireless AP or wireless router.
2. Take out the SMA cable (RG316) and connect the wireless AP (wireless router or wireless network card) to the TO radio port of the signal amplifier.
3. Connect the antenna to the other end of the signal amplifier (TO Antenna).
4. Plug in the power supply and you're done.
Usage:
1. First remove the antenna on the wireless AP or wireless router.
2. Take out the SMA cable (RG316) and connect the wireless AP (wireless router or wireless network card) to the TO radio port of the signal amplifier.
3. Connect the antenna to the other end of the signal amplifier (TO Antenna).
4. Plug in the power supply and you're done. FAQs
1. How much can the signal of this product be amplified?
Answer: The power of our ordinary home wireless router is generally 80-100mW (milliwatts), and the maximum power output can reach 2500mW (milliwatts) after adding this product.
2, What kind of wireless products can support this product?
A: Our products support 2.4GHz WLAN 802.11b, 802.11b+, 802.11g, 802.11b+g+N, wireless 2.4G AP, 2.4G wireless bridge, 2.4G wireless router, 2.4G wireless network card, 2.4G wireless monitoring, 2.4G wireless microphone, 2.4G Bluetooth device, etc.
3. Can the router be encrypted after adding this product?
A: Any encryption such as WEP/WPA/WPA2 can be supported!
4, Is this product suitable for outdoors?
A: This product cannot be placed outdoors! But it can be packed in a waterproof box!
5. How big is the difference between 2.4bg and 2.4bgN?
Answer: The maximum transmission rate of 2.4BG is 54MB, but the maximum transmission rate of 2.4BGN is 150MB, and the relative bandwidth will be much better than BG, provided that your router must support BGN specification router to reach, if you are using BG specification route, the maximum output is still 54MB
