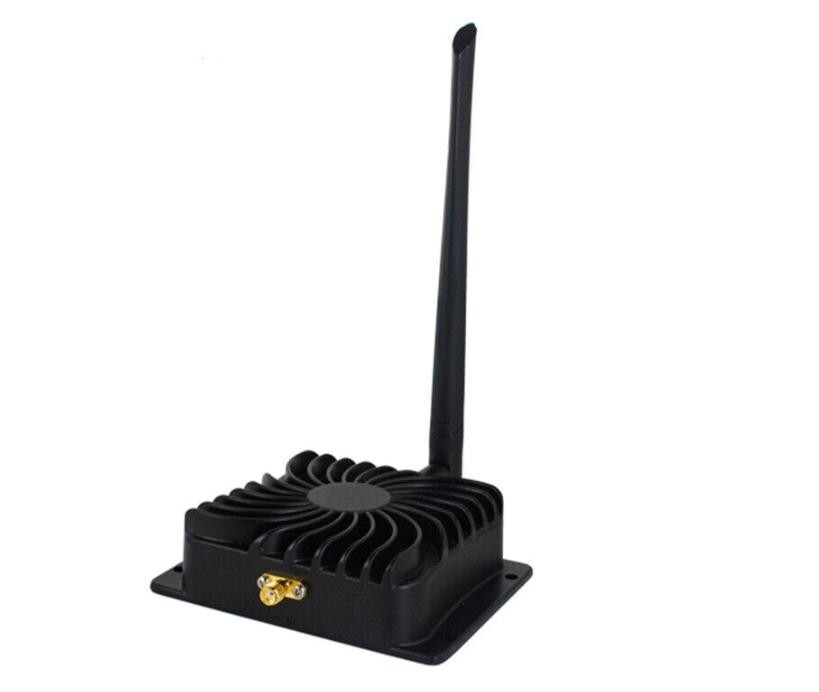

2.4GHz 5W 802.11b/g/n Signal Booster——HS2405X1
Note:The item need connect with router or access point which is NOT included
Packing List (bulk pack):
- 1 x Booster
- 1 x Power adapter
- 1 x SMA cable
- 1 x 6dBi Antenna
Key Features
20X the power, Improving the link quality and coverage of certified WLAN devices
Ultra-low noise, improve the receiving sensitivity, and extended receiving distance
Wide 6V to 16V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and play, no software is required
Wide 6V to 16V operating input range
Operating mode is TDD, 2.4GHzor 5.8GHz are extensible
Simply plug and play, no software is required
All metal covering, improve heat dissipation
Specifications
Frequency Range:2.4~2.5GHz
Operating Voltage: 6~16V
Receiving Gain: 10dB±1(2.4GHz)
Transmission Gain: 13dB±1(2.4GHz)
Input Trigger Power:Min: 3dBm Max: 30dBm
Maximum Output Power (P1dB): 37dBm(5W)
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current:435mA@Pout 28dBm 9V
Noise Figure:＜2.5dB(2.4GHz)
TX/RX Switch Time Delay：＜1us
LED Indicator: Transmitter: Green; Receiver: Red; Transducers: Orange
Operating Ambient Temperature:-40℃～+70℃
Operating Humidity:＜95%RH
Net Weight:115g
Installation Instructions
Step 1:Disconnect power supply to AP/Router;
Step 2:Detach the antenna from your certified wireless AP/Router
Step 3:Connect Rg316 cable to the booster and AP/Router
Step 4:Connect the antenna to the other end of the booster
Step 5:Connect the power supply to the booster first and subsequently the AP/Router
