Sena Parani UD100 Bluetooth USB adapter up to 1000 meters wireless distance with 5 dBi antenna + soft
This is a new item with no original package
Including:
1.Sena Parani UD100
2.5 dBi Dipole Antenna - RP-SMA Plug Right-hand ThreadApplicable Models:
Parani-MSP1000 / Parani-ESD1000 / Parani-SD1000
Parani-UD100 / Parani-ESD110V2 / Parani-BCD110
Parani-BCD210
Note:
This one will work with bothBluesoleilandToshibasoftware!
We will provide old and new Toshiba software on CD that is included
Working distance in an open field:
Normally 300 meters, up to 600 meters using 5 dipole antenna
1000 meters using patch antenna.

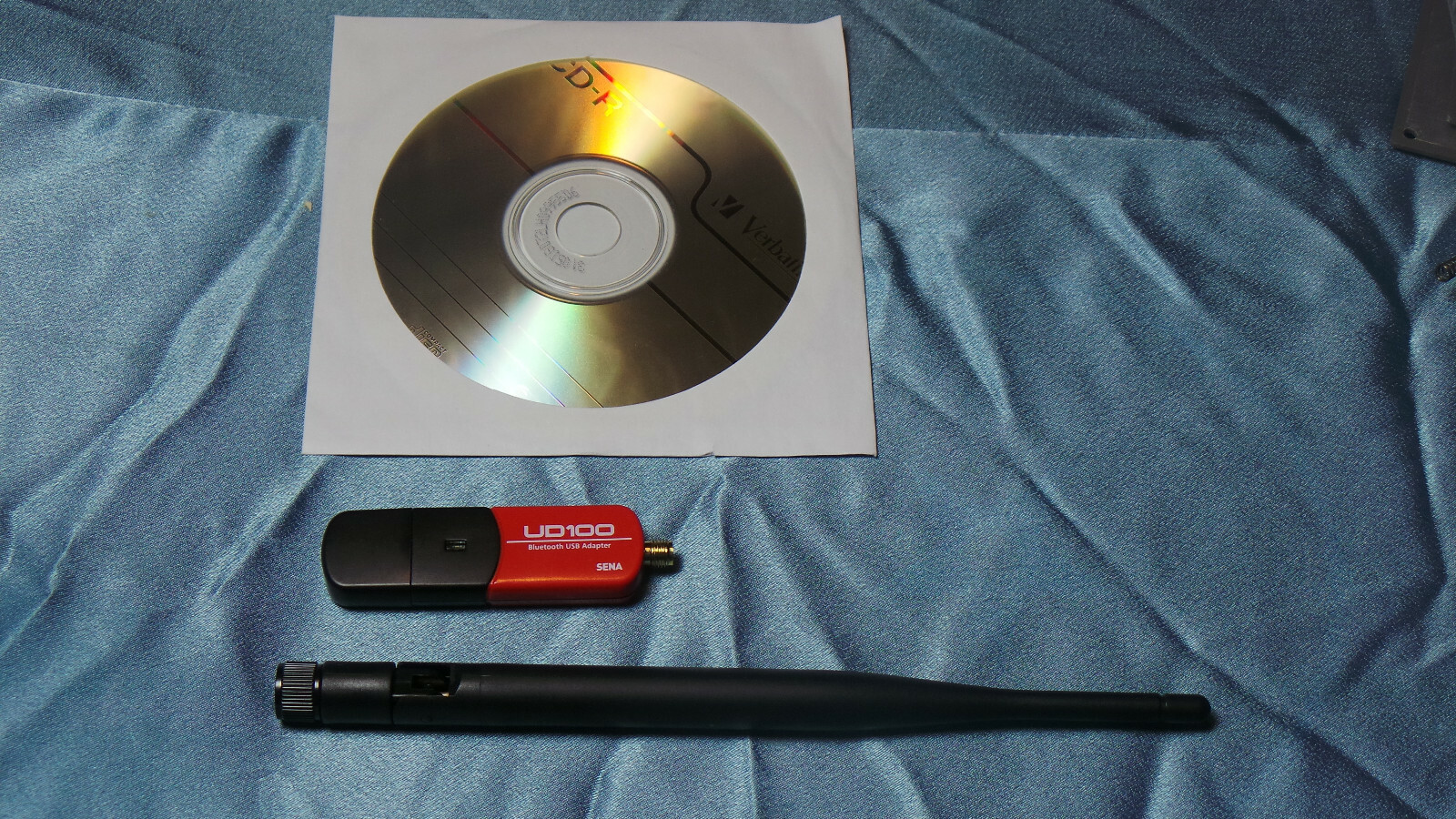

In this sale:
1. Sena Parani UD100USB adapter – tested and in good working order
2. Quick start guide on CD
3. CD with manual and Toshiba BT software for x32 and x64 Windows operation system (refer to pictures)
The Parani-UD100is a class 1 type Bluetooth USB adapter
That supports 300 meters of wireless transmission distance by
default. The working distance can be further extended up to 1000
meters using optional replacement antenna. Thanks to its longer
communication distance than other regular Bluetooth USB adapters,
it is suitable for industrial or special applications. Parai-UD100 is
compatible with other SENA Bluetooth devices perfectly.
Standards
- Bluetooth 2.0+EDR Class 1
- USB 2.0
Max Transfer Rate :3 Mbps (EDR)
Frequency Range :2.402 ~ 2.480GHz
Transmit Output Power :+19dBm (+6dBm EDR) E.I.R.P
Receive Sensitivity
- Basic 1Mbps : -88 dBm
- EDR 2Mbps : -87dBm
- EDR 3Mbps : -82dBm
Antenna Connector :RP-SMA
Antenna Gain
- Default Stub Antenna : 1 dBi
- Optional Dipole Antennas : 3 dBi & 5 dBi
- Optional Patch Antenna : 9 dBi
Working Distance(In Open Field)
- Stub antenna – Stub antenna: 300 m
- Dipole (3 dBi) – Dipole (3 dBi) : 400 m
- Dipole (5 dBi) – Dipole (5 dBi): 600 m
- Patch antenna – Patch antenna: 1 km
*working distance can vary depending on install environment
Bluetooth stack software:Toshiba
Computer OS Support
- Windows 2000/XP/Vista (32/64bit)
- Linux (3rd party driver required)
- MAC OS X (MAC OS X driver required)
Size :72(L) x 22(W) x 10(H) mm
Operating Temperature:-20 ~ +70˚C
Storage Temperature:-40 ~ +85˚C
Humidity:90% Non-condensing
Regulatory Approvals:FCC, CE, TELEC, KCC, Bluetooth SIG
