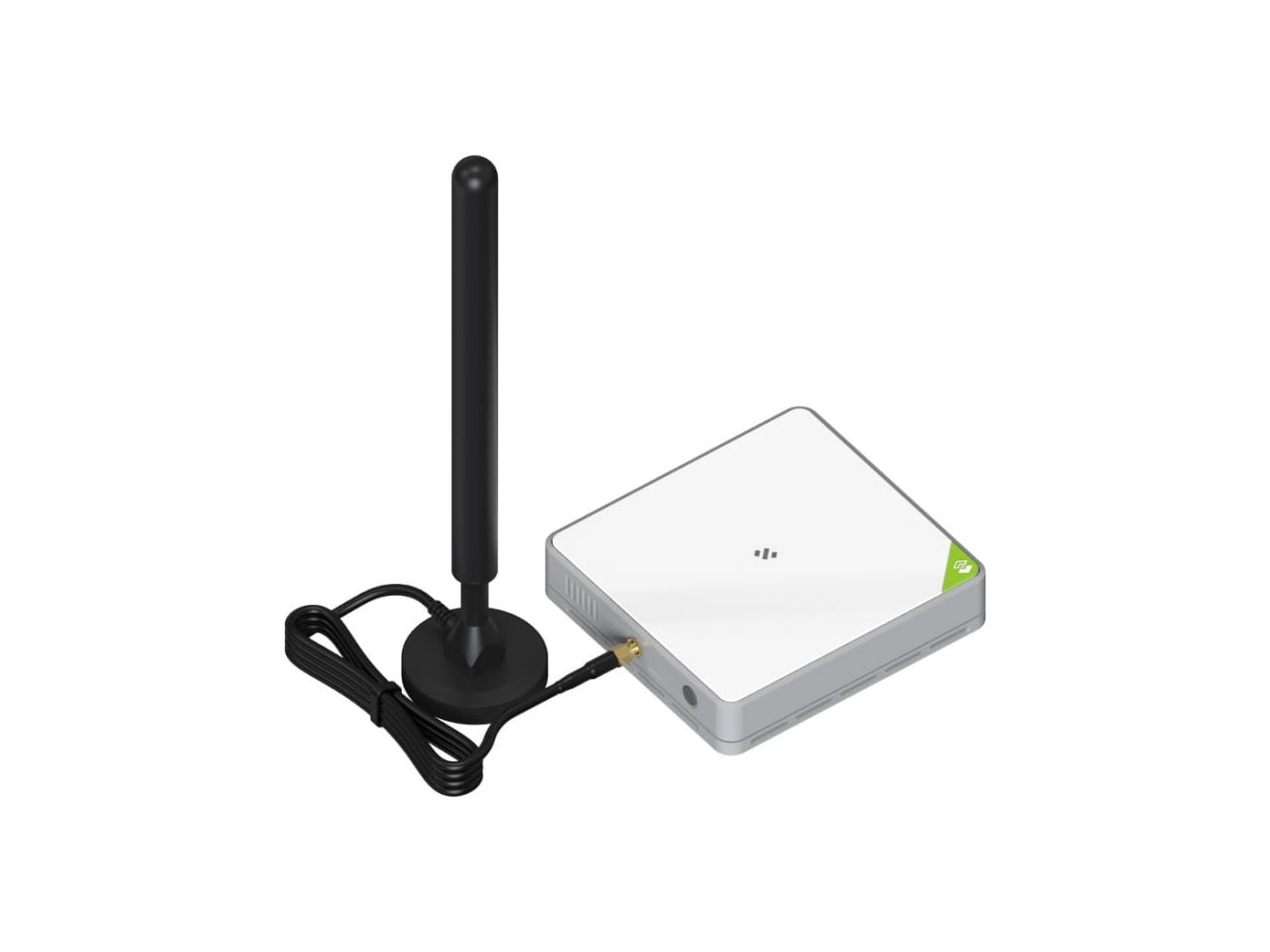

Seeed Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (US915 Band, Semtech SX1302) with PoE Support, Web Management Console, Omni Antenna, Magnetic Base, and 12V 2A Power Adapter

Product Overview:The Seeed Studio SenseCAP M2 is a carrier-grade, high-efficiency 8-channel indoor LoRaWAN gateway powered by the advanced Semtech SX1302 baseband processing engine. Tuned specifically for the US915 frequency band (902–928 MHz), this multi-platform edition is built for commercial building automation, smart agriculture, municipal metering, environmental monitoring, and private IoT deployments.

Equipped with factory Multi-Platform firmware, this gateway provides out-of-the-box native connectivity with major cloud LoRaWAN Network Servers (LNS), including The Things Network (TTN), AWS IoT Core, ChirpStack, and standard Packet Forwarder / Basics Station protocols.

Key Features & Technical Specifications:

• Flexible Dual Power Architecture: Operates via the included 12V 2A DC wall adapter or through standard Power-over-Ethernet (IEEE 802.3af PoE), eliminating the need for dedicated AC electrical lines during ceiling/wall mounting.

• • 1x 10/100M RJ45 Ethernet Port (PoE enabled)

  • 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth (BLE) for rapid provisioning via Web UI / SenseCAP Local Console

  • 1x Nano-SIM Card Slot and LTE Status LED for cellular backhaul expansion

  • 1x MicroSD Card Slot for localized logging and storage

  • 1x USB Type-C Console Management Port

  • 1x Standard SMA Female LoRa Antenna Connector

• Complete RF Antenna Kit: Includes a high-gain omnidirectional whip antenna and a heavy-duty magnetic stand with integrated low-loss coaxial extension cable for flexible window/desk positioning.

Technical Data:

• Operating Frequency: US915 (902 - 928 MHz)

• Channel Capacity: 8 Upstream channels / 1 Downstream channel

• Power Input: 12V DC / 2A (Barrel Jack) or 48V PoE (802.3af)

• Dimensions: 143.6 mm x 135 mm x 34 mm
