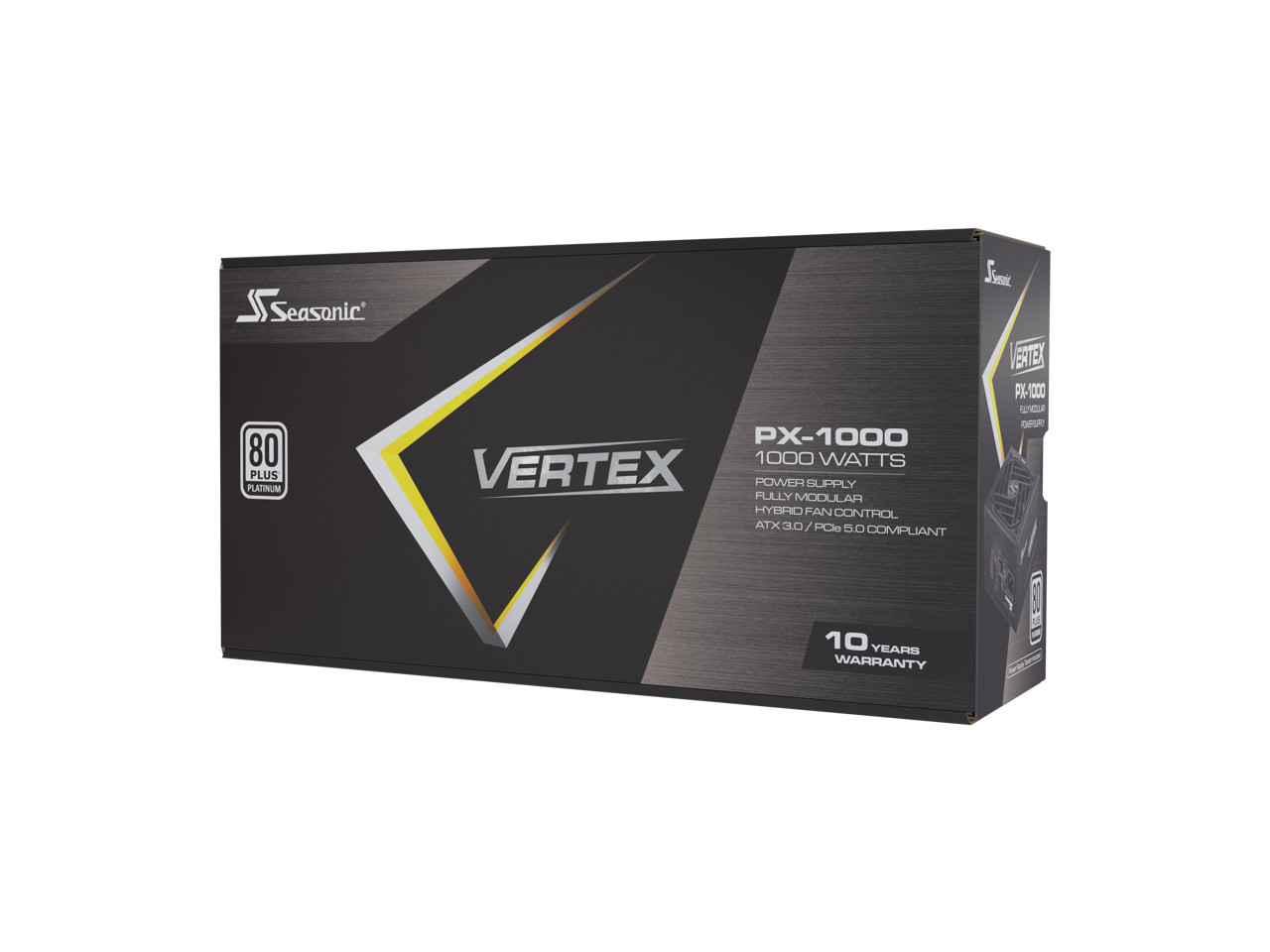

Seasonic VERTEXPX1000 Vertex Platinum 1000W Modular Power Supply Seasonic VERTEXPX1000 Vertex Platinum 1000W Modular Power Supply
International Customers: All electronic products are packaged for sale in the US with US voltage.
Certifications & Standards: cTUVus TUV CB CCC BSMI EAC CE
Energy Efficiency Compliance: Energy-related Products Directive Lot 6 (ErP Lot 6)
Energy Star: Yes
Energy Efficiency Certification: 80 Plus Platinum
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Product Description
This item is brand-new, factory sealed.
ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic's latest VERTEX ATX 3 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Digital Hybrid Fan Control
Seasonic's vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
- Reduced noise without increase in temperature
- Extended fan life due to the reduced number of fan rotations
- Optimized heat dissipation at all times
- Unsurpassed silent performance in Fanless Mode
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
SpecificationPower DescriptionInput Frequency50 Hz - 60 HzNumber of +12V Rails1Output Power1000 WOutput Current
Input Voltage Range100 V AC - 240 V ACInput Voltage
Output Voltage Detail
- 3.3 V DC @ 25 A
- 5 V DC @ 25 A
- 12 V DC @ 83 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
Physical CharacteristicsForm FactorATX/EPSProduct ColorBlackHeight3.4"Color Warranty12 YearInterfaces/PortsNumber of (6+2 pin) PCI Express Power Connectors3Number of 4-pin Molex Power Connectors3PCI Express Version5.1Number of (4+4 pin) CPU Power Connectors2Number of SATA Power Connectors18PCI Express ConnectorYesGeneral InformationBrand NameSeasonicMarketing Information ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6) Seasonic's latest VERTEX ATX 3 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards. Digital Hybrid Fan Control Seasonic's vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level. Reduced noise without increase in temperature Extended fan life due to the reduced number of fan rotations Optimized heat dissipation at all times Unsurpassed silent performance in Fanless Mode Fluid Dynamic Fan Bearing High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage. More from the Manufacturer Product TypePower SupplyProduct NameVertex PX 1000W Power SupplyManufacturerSea Sonic Electronics Co., LtdManufacturer Part NumberVERTEXPX1000Product ModelVERTEX PX-1000Product SeriesPXProduct LineVertexTitleProduct TitleSeasonic Vertex PX 1000W Power Supply (VERTEXPX1000)Technical InformationFan Diameter135 mmATI CrossFire SupportedYesSpecification ComplianceATX 3.1NVIDIA SLI SupportedYesEfficiency92%Number of Fans1Fan Bearing TypeFluid Dynamic BearingProtection Type
- Over Current
- Over Power
- Over Temperature
- Over Voltage
- Short Circuit
- Under Voltage
FeaturesLow NoiseModularYesPower Factor Correction (PFC)ActiveModular TypeFully ModularReliabilityMTBF100000 HourEnvironmental ConditionsMaximum Operating Temperature122°F (50°C)Minimum Operating Temperature32°F (0°C) Shipping
