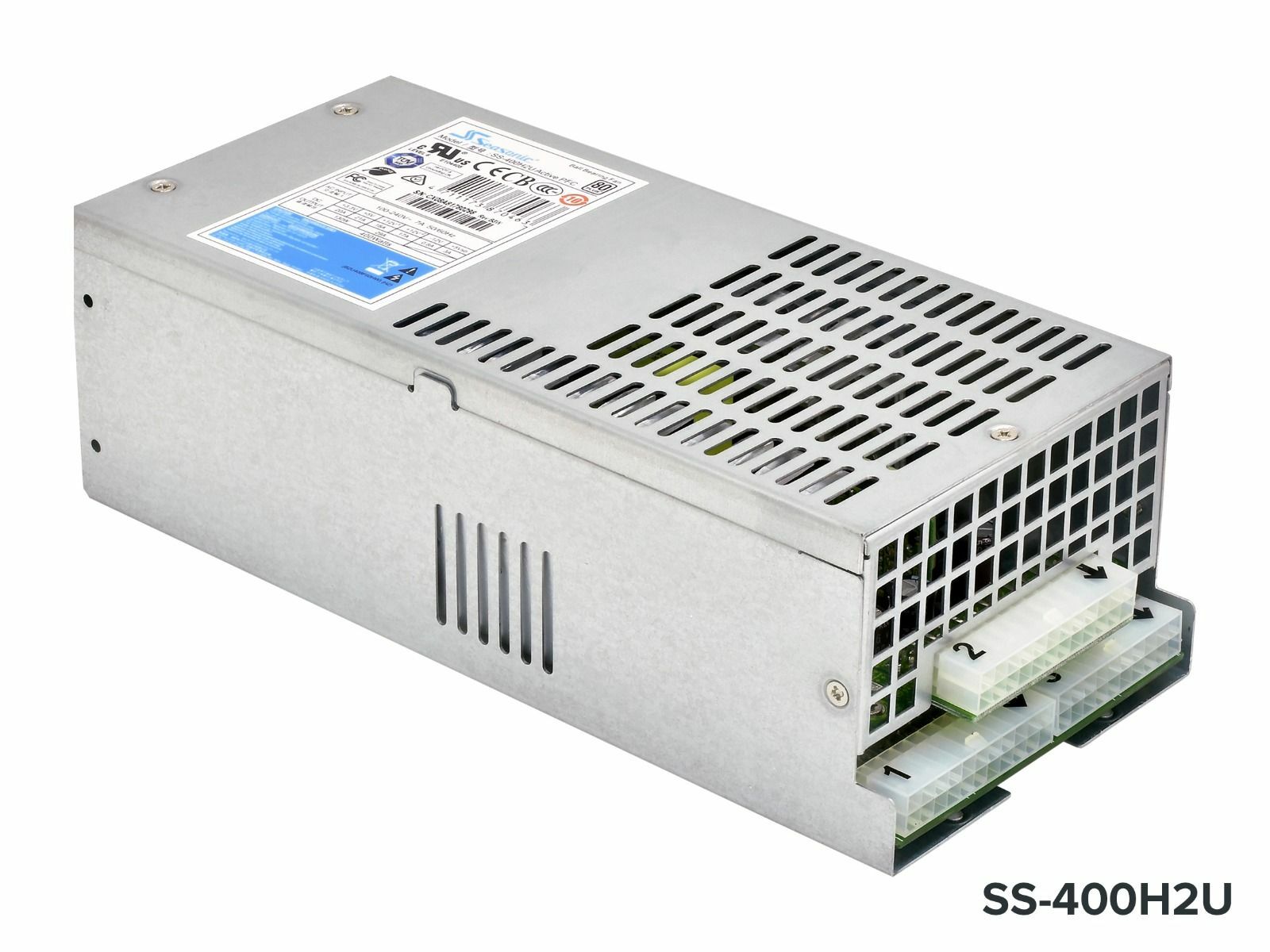

H2U 2U POWER SUPPLY

This full AC input range industrial level power supplyoffers the total power capacity of up to 600 Watts and uses APFC (Active PowerFactor Correction) circuit design. It has quality components built in toprovide 80 PLUS® efficiency and long term reliability. This product complieswith IEC1000-3-2 and EN61000-3-2 PFC harmonics standards and Seasonic’sproprietary Smart and Silent Fan Control (S2FC) makes this unit operate at lownoise levels. Most importantly, the SS-600H2U is a fully modular power supplythat will make installation straightforward and easy.

SPECIFICATIONS

SS-600H2U

Specifications

Input frequency 50/ 60 Hz

Hold up time, full load 16ms (typical)

Efficiency (220 V AC - 240 V AC, full load) 83 % (typical)

Efficiency (100 V AC - 120 V AC, full load) 80 % (typical)

Dielectric withstand, input to frame/ground 1800 VAC, 1 sec

Dielectric withstand, input to output 1800 VAC, 1 sec

Line regulation ± 1 %(typical)

Load regulation ± 5 %(typical)

Cross regulation ±5 % (typical)

MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours

Active Power Factor Correction 99 % (typical)

DC Outputs

+3.3 V +5 V +12 Combined -12 V +5 Vsb Total continuous power Input Type

20 A 25 A 45 A 0.8A 3 A 600W 100–240 VAC

150 W (max.) 544 W 9.6 W 15W
