EthernetData Rate10/100/1000Base-TData Input Port1 × RJ45 Ethernet Data InputPoE Output Port1 × RJ45 PoE Output (Data + Power)Power over EthernetPoE StandardIEEE 802.3at / IEEE 802.3bt / LTPoE++Input Voltage12–48V DCMaximum PoE Output95WEnvironmentalOperating Temperature-40°C to 80°CProtectionRJ45 Surge Protection: 1KV
Power Surge Protection: 500V
ESD Protection: 4KV / 8KVMechanicalDimensions95 × 70 × 30 mmMountingDIN-Rail / Wall-MountPower Input & OutputDC Input12–48V DCMaximum PoE Output95WPoE StandardIEEE 802.3at / IEEE 802.3bt / LTPoE++PoE BudgetUp to 95W at 24V/48V DC input; up to 60W at 12V DC input.InterfacesEthernet Data Input1 × RJ45 Ethernet Data InputPoE Output1 × RJ45 PoE Output (Data + Power)InstallationMountingDIN-Rail / Wall-MountDimensions95 × 70 × 30 mmNetwork & PoE CompatibilityPoE StandardsIEEE 802.3at / IEEE 802.3bt / Temperature-40°C to 80°CProtectionRJ45 Surge Protection: 1KV
Power Surge Protection: 500V
ESD Protection: 4KV / 8KVHow To Set Up:

a) Connect the Ethernet port of the injector to a LAN switch with a network cable.

b) Connect the PoE Out port to the PoE device.

c) After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.

d) After all cables are correctly connected, the indicators will be lit as per port status LEDs.

Package Content:

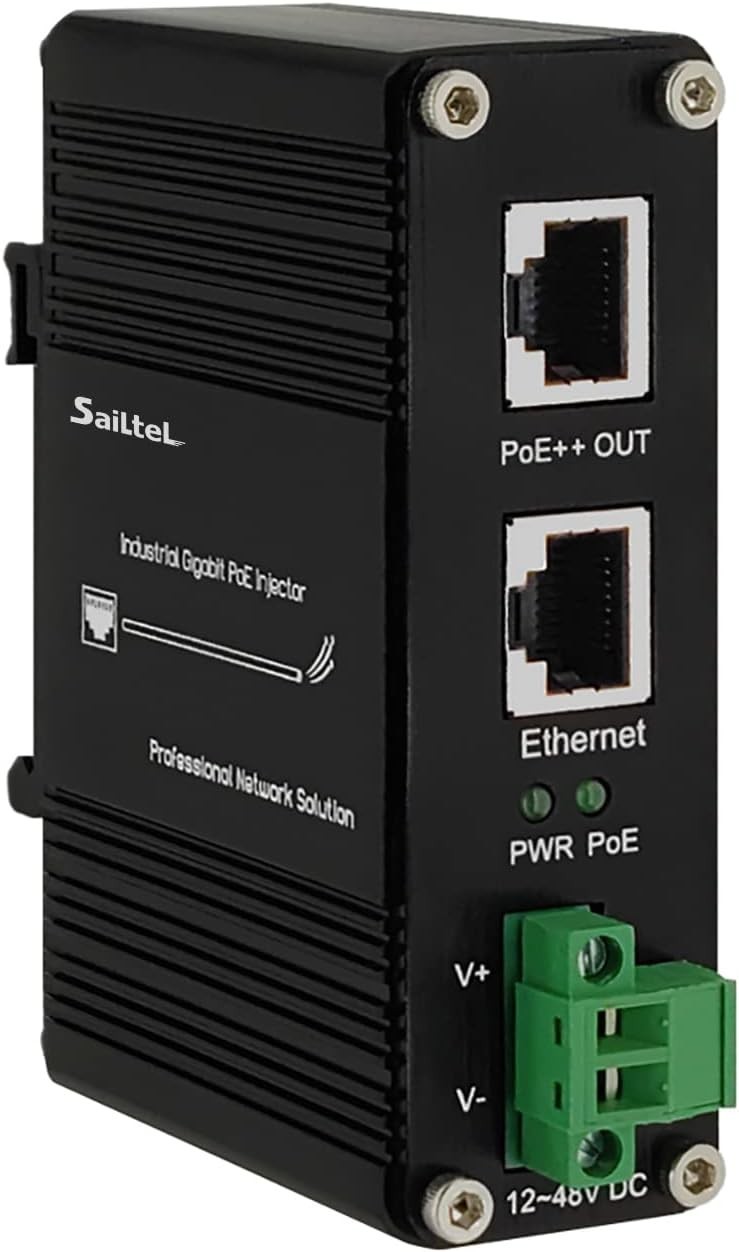

1 * SaiLteL 95W PoE Injector

1 * Quick Start Guide

1 * L-Shaped Wall Mount Bracket
