Manufacturer: APC

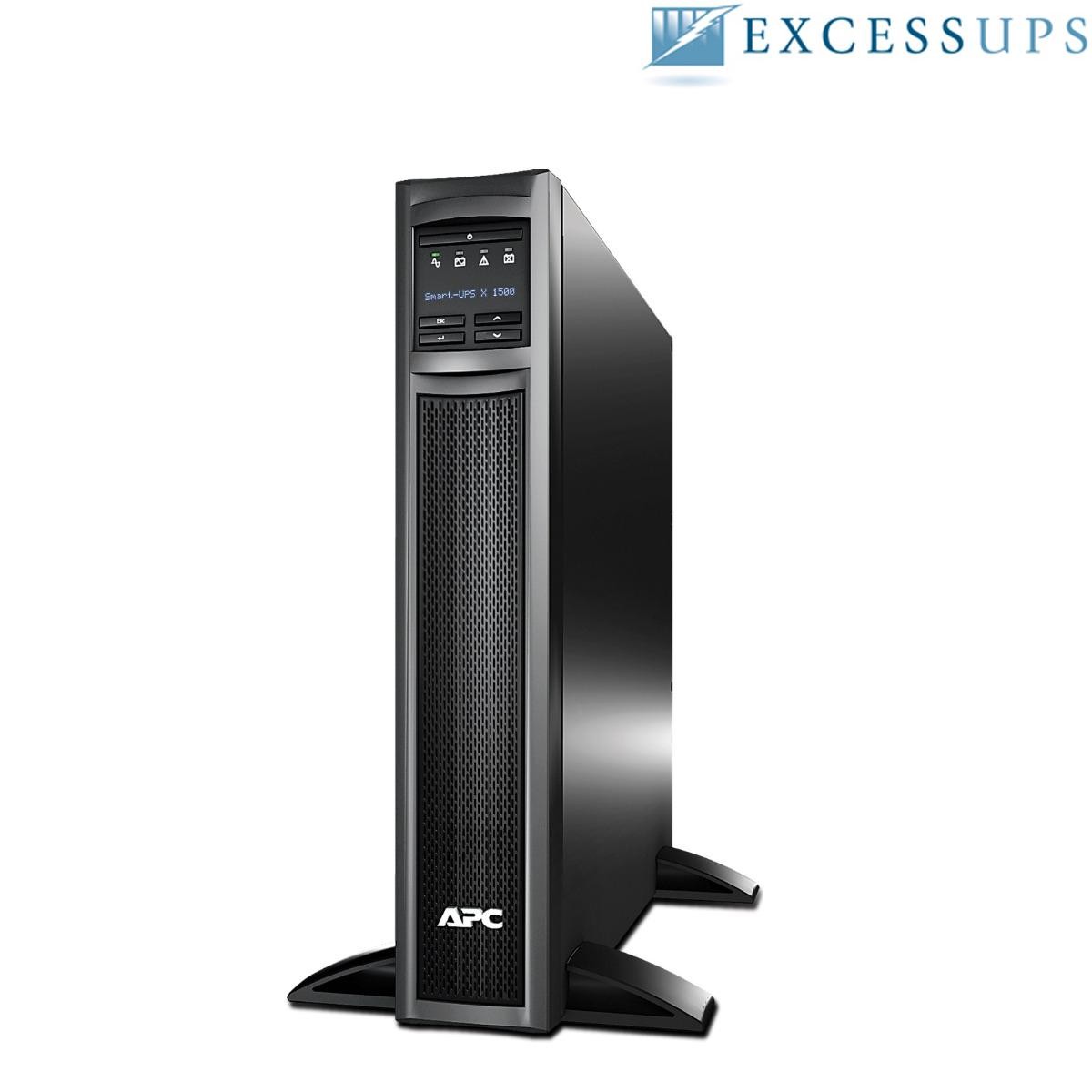

Model: APC Smart-UPS X 1500VA 1200W, Tower, 120V
Condition: New batteries, refurbished UPS
Part Number: SMX1500RM2U
Maximum output: 1200W / 1500VA
Typical backup time at half load: 17.2 minutes (600 Watts)
Typical backup time at full load: 5.8 minutes (1200W Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS X 1500VA 1200W 120V SMX1500RM2U - User Manual
SMX1500RM2U - APC Smart-UPS X Specifications:
Main:
Main Input Voltage
120V
Main Output Voltage
120V
Rated Power in W
1200W
Rated Power in VA
1440VA
Input Connection Type
NEMA 5-15P
Output Connection Type
(8) NEMA 5-15R
Number of Rack Unit
2U
Cable Length
8 ft (2.44 m)
Number of Cables
1
Battery Type
Lead-Acid Battery
Batteries & Runtime:
Extendable Run Time
0
Included Battery Modules
0
Battery Slots Empty
3 h
Battery Life
3 - 5 year(s)
Replacement Battery
APCRBC115
Battery Power in VAH
311 VAh runtime
Battery Charge Power (Watts)
103 W rated
Battery Option
SMX48RMBP2U 1 933 VAh
SMX48RMBP2U 2 1555 VAh
SMX48RMBP2U 3 2177 VAh
SMX48RMBP2U 4 2800 VAh
SMX48RMBP2U 5 3421 VAh
General:
Number of Power Module Filled Slots
0
Number of Power Module Free Slots
0
Product Web Sub-Family
Extended run
Redundant
No
Physical:
Color
Black
Height
3.5 inches (89mm, 8.9cm)
Width
17 inches (432mm, 43.2cm)
Depth
19.3 inches (490mm, 49.0cm)
Net Weight
54.6 lbs. (24.82 kg)
Mounting Location
Front
Mounting Preference
Lower
Mounting Mode
Rack-mounted Tower
Two Post Mountable
0
USB Compatible
Yes
Input:
Maximum Input Current per Phase
12 A
Maximum Short Circuit Withstand (Icw)
1000kA
Switching Current Capacity
20A
Efficiency at Full Load
75 - 154 V adjustable
82 - 143 V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output:
Harmonic Distortion
Less than 5%
Maximum Configurable Power in VA
1440VA
Max Configurable Power (Watts)
1200W
Topology
Line Interactive
Waveform Type
Sine Wave
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz sync to mains
Conformance:
Product Certifications
CUL Listed
Environmental:
Acoustic Level
40 dBA
Heat Dissipation
133 Btu/h
Operating Altitude
0 - 10000 ft
Ambient Air Temperature for Operation
32 - 104 °F (0 - 40 °C)
Ambient Air Temperature for Storage
5 - 113 °F (-15 - 45 °C)
Storage Altitude
0 - 50000 ft (0.00 - 15240.00 m)
Relative Humidity
0 - 95 %
Storage Relative Humidity
0 - 95 %
Communications & Management:
Control Panel
Multi-function LCD status and control console
Emergency Power Off (EPO)
Yes
Free Slots
1
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering:
Surge Energy Rating
645 J
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
