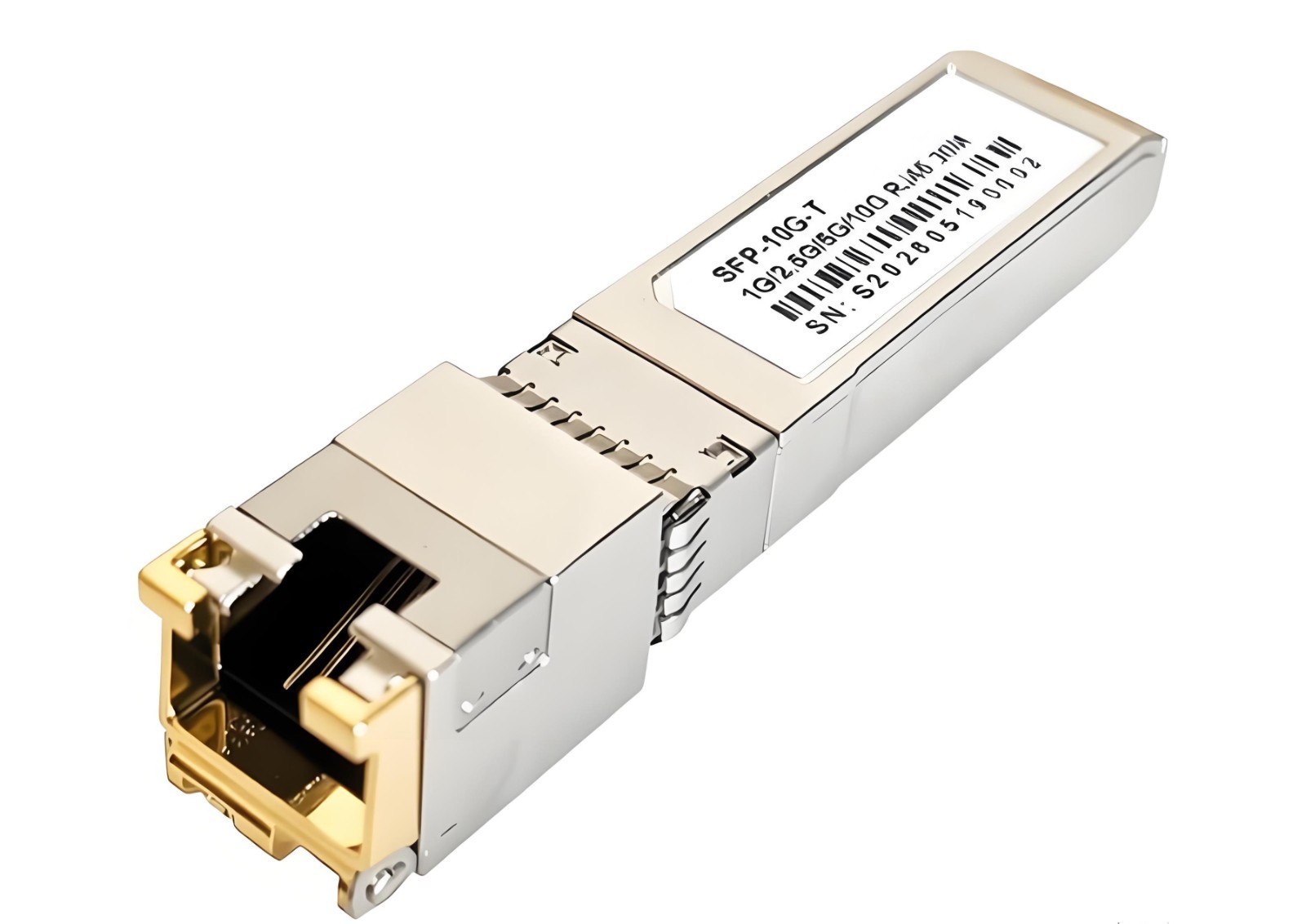

SFP-10G-T 10G SFP+ to RJ45 Copper Transceiver Module

TheSFP-10G-Tis a high-performance 10GBase-T copper SFP+ transceiver. It provides a cost-effective solution for connecting a 10-Gigabit Ethernet network over twisted-pair copper cabling.

This 10G SFP+ to RJ45 Copper Transceiver, 10GBase-T SFP-10G-T Module. Supports Cat6a/Cat7 up to 30m. Compatible with Cisco, Ubiquiti, MikroTik, Netgear, Intel, Mellanox and more. Hot-pluggable, low power consumption, 100% compatible replacement for original modules.

Key Features

• Form Factor: SFP+ (Hot-pluggable)

• Interface: RJ45

• Data Rate: 10Gbps (also backward compatible with 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps when used with auto-negotiation capable switches)

• Cable Type: Cat6a / Cat7 (shielded twisted pair recommended)

• Maximum Distance: Up to 30 meters on Cat6a (or better) cabling

• Compliance: IEEE 802.3an (10GBase-T)

• Operating Temperature: 0°C to 70°C (commercial grade)

• Low Power Consumption: Approximately 2.5W typical

Here's a quick reference table for different speeds and cable types:

Data RateCable TypeMaximum Distance10GbpsCat6a / Cat730 meters5Gbps / 2.5GbpsCat5e / Cat6 / Cat6a100 meters1GbpsCat5e / Cat6 / Cat6a / Cat7100 metersNote: When operating at 1G (1000BASE-T), the module follows the standard Ethernet distance limit of 100 meters over Cat5e or better cabling, which is the same as a regular Gigabit SFP module (e.g., GLC-T).This SFP-10G-T module is designed to work with the following major brands:Networking (Enterprise)

• Cisco (Meraki):Replaces SFP-10G-T-S, SFP-10G-T, GLC-TE (for 1G fallback)

• Juniper:Replaces SFP-10/5/3-T, EX-SFP-10GE-T

• Arista:Replaces SFP-10G-T

• Dell:Replaces SFP-10G-T, GP-SFP-10T-30

SMB & Pro-sumer

• Ubiquiti (Ubiquiti / UniFi):Replaces UF-RJ45-10G (Compatible with UniFi Switch Pro Aggregation, US‑16‑XG, EdgeRouter Infinity, etc.)

• MikroTik:Replaces S+RJ10 (Works for CRS305, CSS326, CCR1009, etc.)Note: Often requires cooling/fan check for high-density use.

• QNAP:Replaces QXG-10G1T, NAS compatibility (TVS-872XT, TS-453BT3)

• Synology:Replaces E10G18-T1, E10G21-F2 (Copper specific)

Server & NIC Brands (Computer/Server)

• Intel:Compatible with Intel X710-DA2, XL710-QDA1, or any SFP+ port on Intel network cards (requires Intel coded EEPROM, check your NIC supports third-party optics)

• Mellanox (NVIDIA):Compatible with ConnectX-3, ConnectX-4, ConnectX-5 (Often requires command style="margin-top: 6px;">

  Chelsio:Compatible with T5/T6 series

Switch Brands (Consumer/SMB)

• Netgear:Compatible with AXM765, M4300, M4200, XS708E series

• TP-Link:Compatible with TL-SM5310-T (for TL-SX3008F, TL-SG3428X)

• Zyxel:Compatible with SFP-10G-T

Important Notes for Customers

1. Heat Notice:SFP-10G-T modules typically run hot (50-60°C). This isnormalfor copper PHY-based transceivers. Do not install them next to each other (leave a gap) if your switch has poor airflow.

2. Cable Requirement:For stable 10G speeds, youMUSTuse Cat6a (Shielded recommended) or Cat7 cables. Using Cat5e or Cat6 will result in link errors or failure to negotiate 10G.

3. Auto-Negotiation:Some older switches (e.g., early Cisco Nexus or certain Intel NICs) may require manual setting of speed/duplex or enabling "unsupported transceiver" commands.

4. Not for 1G only switches:Please ensure your SFP+ cage supports 10G, not just 1G (GLC-T).

SFP-10G-T SFP+ copper rj45 10gbase-t 10gbe ethernet transceiver 30m cat6a cat7 for cisco ubiquiti unifi mikrotik sfp+ to rj45 module 10 gigabit copper dac alternative replacement

Compatibility Disclaimer:
This product isbrand compatible, not an OEM original part. The mentioned third-party trademarks (including Cisco, Ubiquiti, MikroTik, Intel, Mellanox, Netgear, etc.) are the property of their respective owners. Our use of these names is forcompatibility description onlyand does not imply endorsement, sponsorship, or affiliation. We do not claim these are original modules. Our modules are programmed to function as replacements for the listed part numbers.

SFP-10G-T – Short FAQ：1. Compatibility

Q: Is this compatible with my switch?
A:Yes. Works withCisco, Juniper, Arista, Extreme Networks, Fortinet, Ubiquiti, MikroTik, Netgear, D-Link, TP-Link, Dell, Supermicro, Mellanox, and more.

Q: Will it work in a 1G SFP port?
A:No. Requires anSFP+ port(10G). Not compatible with standard 1G SFP ports.

Q: Will it work in a 25G SFP28 port?
A:Yes, but only at 10G speed.

2. Performance & Cabling

Q: What is the maximum distance?
A:

• Standard version:30 meters(98 ft) over Cat6a/Cat7

• Long-reach version:80 meters(262 ft) – available upon request

Q: What cable do I need?
A:UseCat6a or Cat7for best performance. Cat6 works for shorter distances (<15m). Cat5e is not recommended for 10G.

Q: Does it support 1G speeds?
A:Yes. Auto-negotiation down to 1000BASE-T (1G) and 100BASE-TX (100M).

Q: How much power does it use?
A:Approximately2.5W – 3.5W. Runs warmer than fiber modules.

3. Temperature Options

Q: What temperature versions are available?
A:Three versions to choose from:

VersionTemperature RangeBest ForCommercial (Standard)0°C to 70°CIndoor data centers, office switchesLow-Temperature-20°C to 70°CCold start environments, unheated roomsIndustrial-40°C to 85°COutdoor cabinets, factories, extreme environments

Q: Which version should I choose?
A:

• Standard:Most indoor applications

• Low-Temp:Garages, basements, cold climates

• Industrial:Outdoor deployments, military, heavy industry

4. Troubleshooting

Q: Switch shows "Unsupported transceiver" – what do I do?
A:Some switches require coding. We can program the module to match your brand. Contact us with your switch model.

Q: The module gets very hot. Is that normal?
A:Yes. 10G-T modules run hot. Ensure good airflow around the switch.

Q: Link is only 1G, not 10G.
A:Check: 1) Cable is Cat6a/Cat7, 2) Length within spec, 3) Both devices support 10G.

Q: Module is not recognized.
A:Try: 1) Reseat the module, 2) Test another SFP+ port, 3) Ensure your switch supports copper SFP+ modules.

5. Ordering

Q: Can I get a free sample?
A:Yes – one free sample for qualified customers. Contact us with your switch model.

Q:Do you offer an 80m version?

A：Yes, we offer an 80m version. Please note that this extended‑reach model has a different price. Contact us for a quote.

Q: Do you offer low-temp or industrial versions?
A:Yes.Low-temperature (-20°C)andIndustrial (-40°C to 85°C)versions available，but price is differrent. Pls contact with us.

Q: What is the warranty?
A:3-year warranty with lifetime technical support.

Sale Policy：

• 10+ pieces per order– Enjoy an additional 5% discountoff the selling price.

• 50+ pieces per order– Enjoy an additional 6% discountoff the selling price

• 100+ pieces per order– Enjoy an additional 10% discountoff the selling price, plus1 free spare unitof the same product.

• High-quality positive review– Receive an additional 2% discount rebateon your order.

We offer flexible customization services, including branded packaging and module labeling with your company name, part numbers, and other specifications. Reach out to us to discuss your specific requirements.

Pls feel free to contact us.

Packaging Options

OptionDescriptionSingle UnitAnti-static bag (ESD-safe)2-Piece PackPlastic case for 2 pieces10-Piece PackPlastic case for 10 pieces

What's Included

• 1x SFP-10G-T transceiver module (Generic / MSA compliant)

• ESD-safe anti-static packaging

• Dust cap

Warranty & Returns

• 30-day money-back guarantee – If not satisfied, return for full refund

• 3-year warranty against defects – Replacement or refund offered

• Lifetime technical support

For bulk orders, custom coding, or compatibility verification with specific switch models, please contact us.
