• Massive Storage Expansion: The 6 - port PCIe X4 SATA III Expansion Card allows your PC to access 6 SATA drives together, perfect for creating a large storage pool or setting up software - RAID in Windows, Mac OS, and Linux (no hardware RAID support).
• Swift Data Transfer: Powered by ASM1166, it has a PCI - Express 3.0 X2 upstream speed of 16GT/s. Each of the 6 downstream SATA ports can reach 277MB/s max bandwidth, ensuring fast and stable data transfer for your storage needs.
• Clear Status Indication: Featuring 6 built - in LEDs, drive monitoring is easy. A steady red light means normal operation, while a flashing one signals data read or write, keeping you updated.
• Wide Compatibility: Designed for simple use, this card is plug - and - play with Windows (except XP), Mac OS, Linux, and NAS systems. No need to worry about driver installs or compatibility.

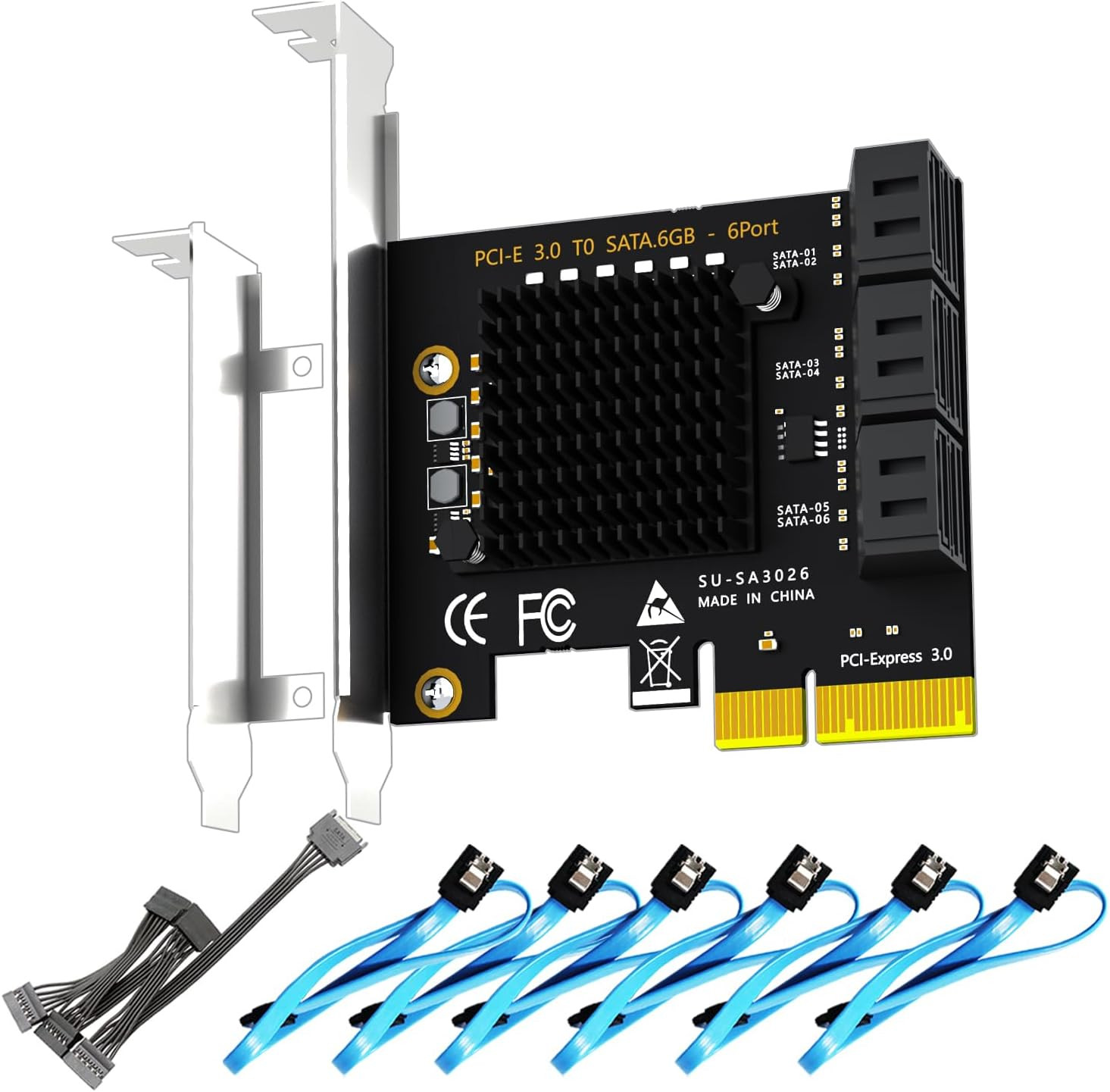

• Easy Installation & Full Kit: It fits PCI - Express X4/X8/X16 slots for simple setup. The package comes with 6 SATA III cables, a 1:5 SATA power splitter cable, and 12 - cm regular & 8 - cm low - profile brackets, suitable for any PC case.

Product description Model: SA3026 Internal Interface PCI-Express 3.0 X2 External Interface 6 x SATA III Total Bandwidth 8GB/s Chip Solution ASM1166 OS Boot No OS Compatibility Windows/Mac OS/Linux/NAS (no support Windows XP) SATA Controller Mode AHCI LED Indicator Red color is working status, Red flashing is data reading/writing Accessaries 6 x SATA III Cable (350mm/13.5inch); 1 x 1:5 SATA Power Cable 6 Port PCIe 3.0 X2 SATA Adapter

• PCI-Express X2 extends 6 x SATA III 6Gbps ports, so the Desktop PC/Server/NAS can access 6 x SATA drivers at the same time.
• Set up a storage pool with 6 x SATA disks, and configure Software RAID in windows/Mac OS/Linux. (Note: Not support Hardware RAID)
• Widely OS Compatibility: No need extra driver. Plug and play in Windows/Mac OS/Linux/NAS/UBUNTU/ESXI. (Note: Not support OS Booting)
• Includes all accessories, ready for operation: 6 x SATA III cable; 1 x 1:5 SATA Splitter Power Cable

PCI-Express 3.0 X2 Bandwidth

• Use PCI-Express X4/8/16 interface to connect a 6-port SATA hard drive storage pool
• This is a high-capacity storage solution with the advantage of PCI-Express 3.0 X2 (2GB/s) speed

Bandwidth Allocation

• SATA1: ~277MB/s
• SATA2: ~277MB/s
• SATA3: ~277MB/s
• SATA4: ~277MB/s
• SATA5: ~277MB/s
• SATA6: ~277MB/s

Package Including

1. SA3026
2. 6 x SATA III cable (350mm)
3. 1 x 1:5 SATA Splitter Power Cable (170mm:80mm:80mm:80mm)
