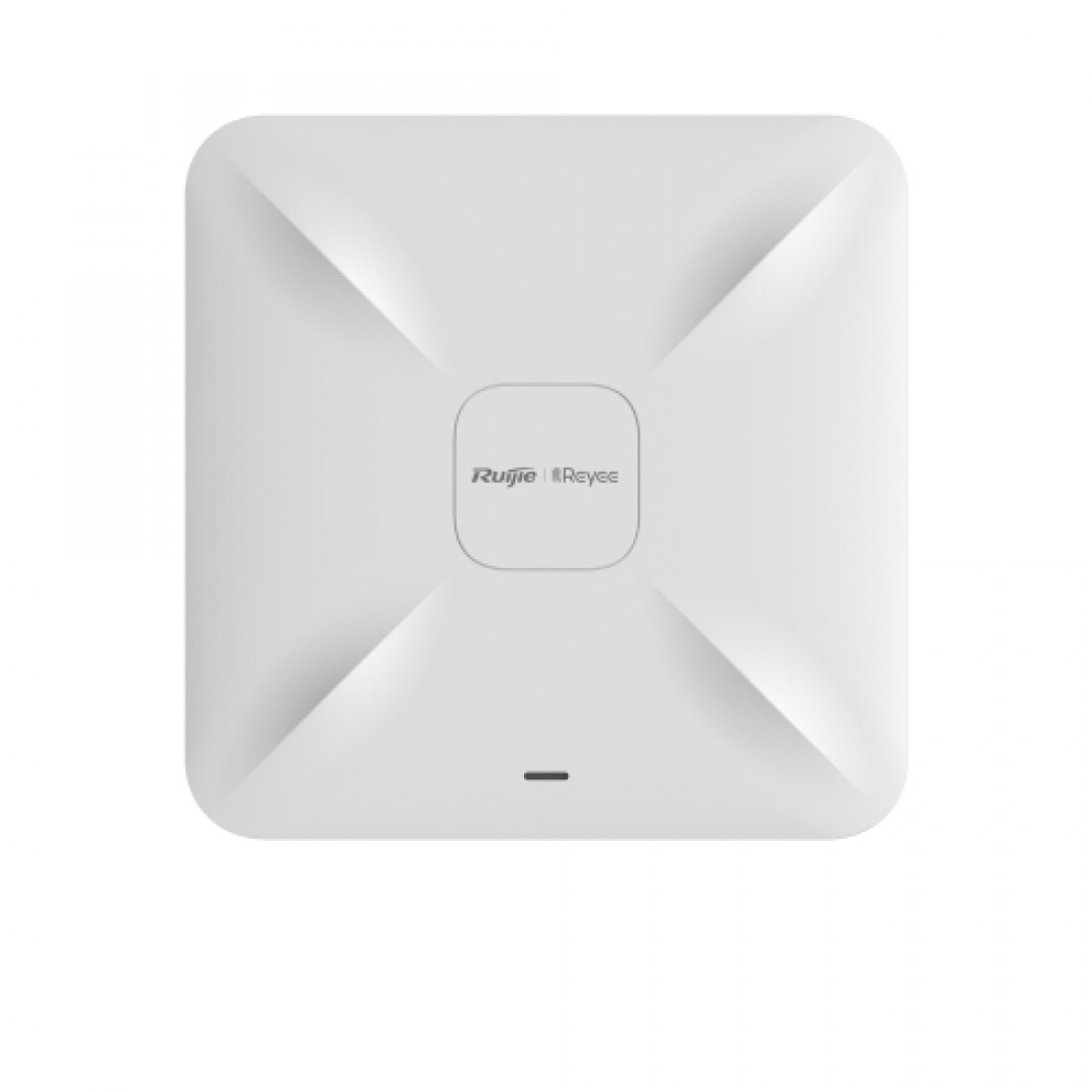

Reyee AC1300 Dual Band Ceiling Mount Gigabit Access Point (RG-RAP2200-E)
MODEL
Hardware specifications
Radio
Dual-stream dual-band
Protocol
Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands
Antenna
Spatial Streams
2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput
Up to 400Mbps at 2.4G
Up to 867Mbps at 5G
1.267Gbp per AP
Modulation
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
11ac HT20: -83dBm (MCS0), -57dBm (MCS9)
11ac HT40: -79dBm (MCS0), -57dBm (MCS9)
11ac HT80: -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power
Adjustable Power
1dBm
1dBm
Dimensions
Weight
0.45kg (excluding mounting kits)
0.45kg (excluding mounting kits)
Service Ports
2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
2 10/100Base-T Ethernet ports,
PoE/LAN1 port supports PoE
Management Port
NA
NA
LED Indicator
NA
NA
Power Supply
Single indicator (green light)
Power Consumption
Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
802.3af/802.3at PoE
Operating temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Operating humidity: 5%~95%(non-condensing)
Storage humidity: 5%~95%(non-condensing)
Safety Standard
GB4943, IEC 62368-1
EMC Standard
GB9254,EN301 dir=\"ltr\" style=\"margin-top:0; margin-bottom:0;\">Vibration Standard
IEC61373
Radio Standard
EN300 328, EN301 893
MTBF
SOFTWARE FEATURES
Operating Mode
AP mode and routing mode
WLAN
Maximum number of clients: 110
Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz)
Recommended number of clients: 48 (16 at 2.4GHz, 32 at 5GHz)
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming
Support Layer 2 and Layer 3 roaming
Security
Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing
Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform
Platform management features
Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
