RAM No-Drill Mount for '12-23 RAM 2500-5500 RAM Products!

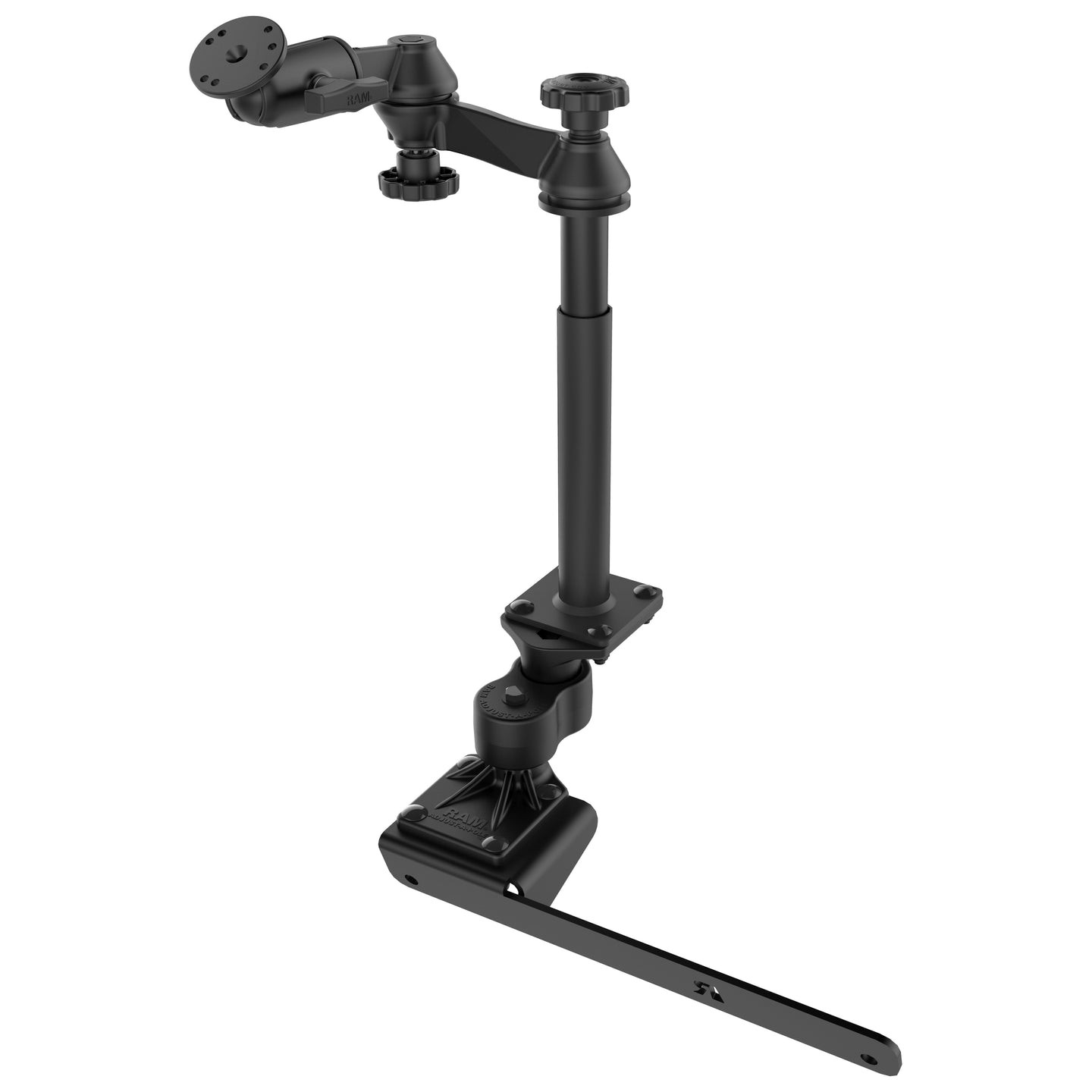

This RAM No-Drill mounting system installs quickly and easily into a range of Ram 1500 and Ram 2500 trucks using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12" to 18". Dual swing arms provide articulation and 12" of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.hardware included Assembly Hardware(2) M8-1.25 x 60mm Hex Bolts(2) 3/4 INCHES Stand-Offs(2) 5/16 INCHES Flat Washershole pattern 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES DiameterSeat Bolt Distance: 13.25 INCHES center to centerplate size 2.5 INCHES Diameterball size C Size (1.5 INCHES )weight capacity Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials Powder coated steelMarine grade-aluminumpackaging type BoxWeight 14.0 lb Additional Information Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)hardware included
Assembly Hardware(2) M8-1.25 x 60mm Hex Bolts(2) 3/4 INCHES Stand-Offs(2) 5/16 INCHES Flat Washershole pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES DiameterSeat Bolt Distance: 13.25 INCHES center to centerplate size
2.5 INCHES Diameterball size
C Size (1.5 INCHES )weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials
Powder coated steelMarine grade-aluminumpackaging type
BoxWeight
14.0 lb
