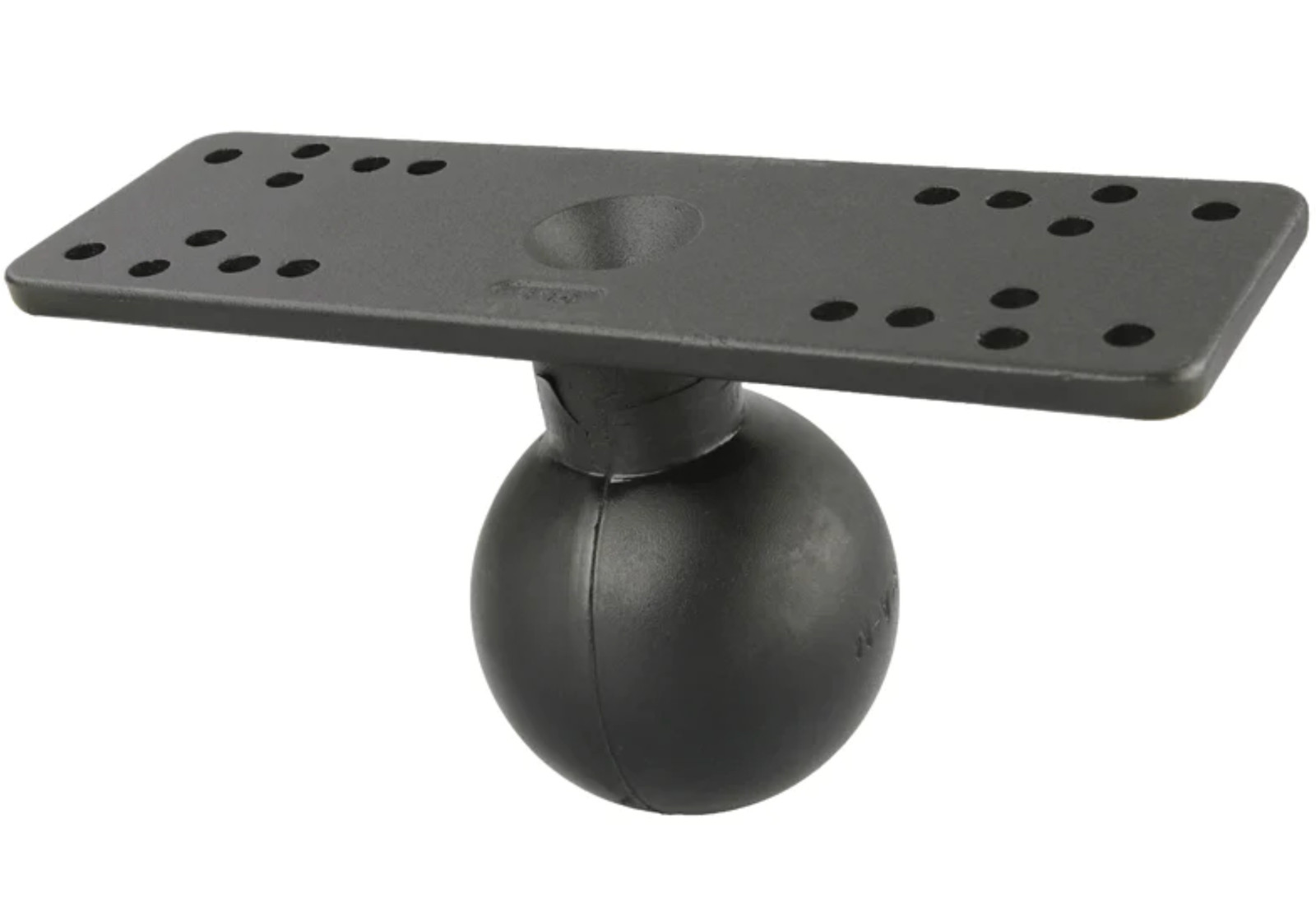

RAM-D-115BU RAM D-Size Marine Electronics Ball Adapter with 2.25-Inch Ball

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

OTHER ITEMS SHOWN IN PHOTOS ARE NOT INCLUDED!

SPECIAL NOTE: THIS PRODUCT FEATURES A LARGE 2.25-INCH D-SIZE BALL. IT IS NOT COMPATIBLE WITH RAM MOUNTS B AND C SIZE COMPONENTS. ABSOLUTELY NO REFUNDS OR EXCHANGES FOR REASON "TOO BIG FOR MY PROJECT" - NO EXCEPTIONS.

FEATURES

• D size ball adapter for 9"-12" fishfinder gimbal brackets
• RAM ® Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty
• Arm and base shown in second photo are not included

OVERVIEW The RAM-D-115BU, universal mounting plate, consists of a 2.25" diameter rubber ball, connected at right angles to a flat 6.25" x 2" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices. HOLE PATTERN

See Drawing

PLATE SIZE

6.25" x 2"

BALL SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.64 lb

ADDITIONAL INFORMATION The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
