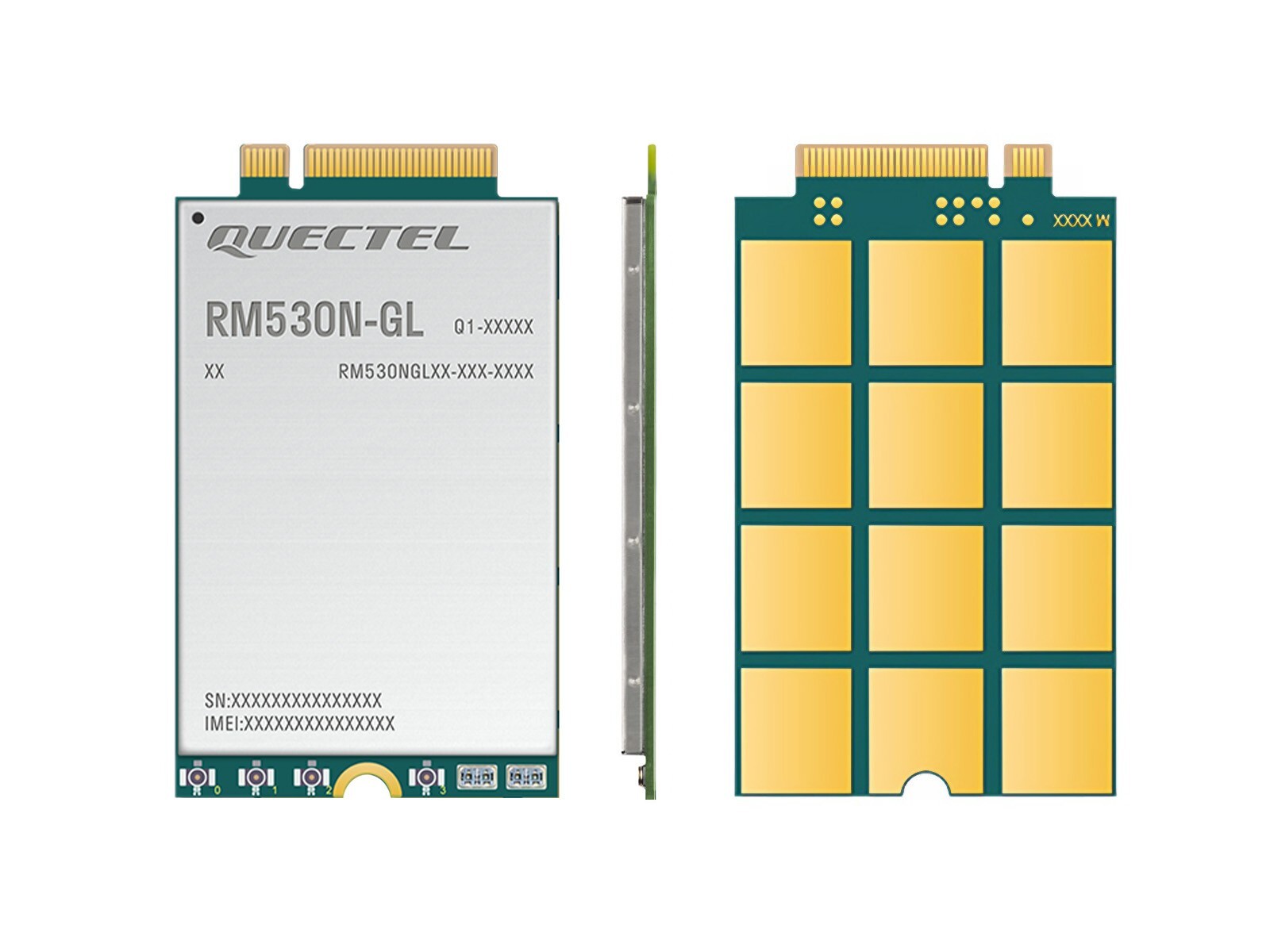

Quectel RM530N-GL IoT 5G Global Band Module, 5G Sub-6G & mmWave Module, M.2 Form
Price: CN $370.36
DESCRIPTION
Prohibited by the module manufacturer QUECTEL, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.Quectel RM530N-GL IoT 5G Global Band Module, 5G Sub-6G & MmWave Module, M.2 Form Factor With 3GPP 5G Release 16 SpecificationQuectel RM530N-GL
IoT 5G Global Band Module

5G Sub-6G & mmWave Module, M.2 Form Factor With 3GPP 5G Release 16 Specification


Features At A Glance

TheRM530N-GLis a 5G Sub-6GHz module specially optimized for IoT/eMBB applications. Adopts 3GPP Release 16 specification and supports 5G non-standalone (NSA) and standalone (SA) modes. Designed in an M.2 form factor,RM530N-GLis compatible with QuectelRM520N5G module series, easy for users to design the devices with single Sub-6 support or both Sub-6 & mmWave support. This module is an industrial-grade module for industrial and commercial applications only.

TheRM530N-GLseries nearly covers all the mainstream carriers worldwide. The integrated multi-constellation high-precision GNSS receiver (supports GPS, GLONASS, BDS and Galileo) greatly simplifies the product design and provides quicker, more accurate positioning capability.

Built in a rich set of network protocols, integrates multiple industry-standard interfaces and supports multiple drivers and software functions (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, and Android), which can be adopted in a wide range of eMBB and IoT applications including industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, video surveillance and digital signage.

  • Designed for IoT/eMBB applications, support 5G/4G/3G, M.2 form factor
  • Full coverage of multi network standards including 5G and LTE-A
  • Supports NSA and SA modes
  • Multi-constellation GNSS receiver available for applications requiring fast and accurate positioning in any environment
  • Supports multi functions: DFOTA and VoLTE (optional)

Specifications5G Standard3GPP R153GPP R165GSub-6 GHzSub-6G & mmWaveRegion / ProviderChinaGlobal (except US)Global (except China)GlobalOperating temperature-30 °C ~ +75 °CExtension temperature-40 °C ~ +85 °CDimensions30.0 × 52.0 × 2.3 (mm)Weight8.9 (g)8.7 (g)8.8 (g)Power supply3.3~4.4 V, typical 3.7 V3.135~4.4 V, typical 3.7 VPower consumption90 μA @ shutdown
3.7 mA @ hibernate
TBD @ USB 2.0, idle
TBD @ USB 3.0, idle70 μA @ shutdown
4.0 mA @ hibernate
32 mA @ USB 2.0, idle
54 mA @ USB 3.0, idle80 μA @ shutdown
4.2 mA @ hibernate
39 mA @ USB 2.0, idle
54.5 mA @ USB 3.0, idle195 μA @ shutdown
4.7 mA @ hibernate
41 mA @ USB 2.0, idle
60 mA @ USB 3.0, idle173 μA @ shutdown
5.1 mA @ hibernate
51 mA @ USB 2.0, idle
69 mA @ USB 3.0, idleFREQUENCY BAND5G5G NR-n257, n258, n260, n2615G NR NSAn41, n78, n79n41, n77, n78, n79n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n795G NR SAn1, n28, n41, n77, n78, n79n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79LTELTE-FDDB1, B2, B3, B5, B7, B8, B20, B28B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71LTE-TDDB34, B38, B39, B40, B41B34, B38, B39, B40, B41, B42, B43, B48LAA-B46UMTSWCDMAB1, B2, B5, B8B1, B2, B3, B4, B5, B6, B8, B19B1, B2, B4, B5, B8, B19GNSS-GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (only supported by RM520N-GL and RM530N-GL)DATA RATE5G mmWave-downlink 4 Gbps;
uplink 1.4 Gbps5G SA Sub-6downlink 2 Gbps;
uplink 1 Gbpsdownlink 2.1 Gbps;
uplink 900 Mbpsdownlink 4.2 Gbps;
uplink 450 Mbpsdownlink 2.4 Gbps;
uplink 900 Mbps5G NSA Sub-6downlink 2.2 Gbps;
uplink 575 Mbpsdownlink 2.5 Gbps;
uplink 600/650 Mbpsdownlink 5 Gbps;
uplink 650 Mbpsdownlink 3.4 Gbps;
uplink 550 MbpsLTEdownlink 600 Mbps;
uplink 150 Mbpsdownlink 1.0 Gbps;
uplink 200 Mbpsdownlink 2 Gbps;
uplink 200 Mbpsdownlink 1.6 Gbps;
uplink 200 MbpsUMTSdownlink 42.2 Mbps;
uplink 11 Mbpsdownlink 42 Mbps;
uplink 5.76 Mbps
Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer
Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

DimensionsResources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.


PACKAGE CONTENT


Weight:0.009 kg

This is an M.2 module without antenna or base board, it is recommended to used with the5G antennaand5G DONGLE HAT.

RM530N-GL x1
