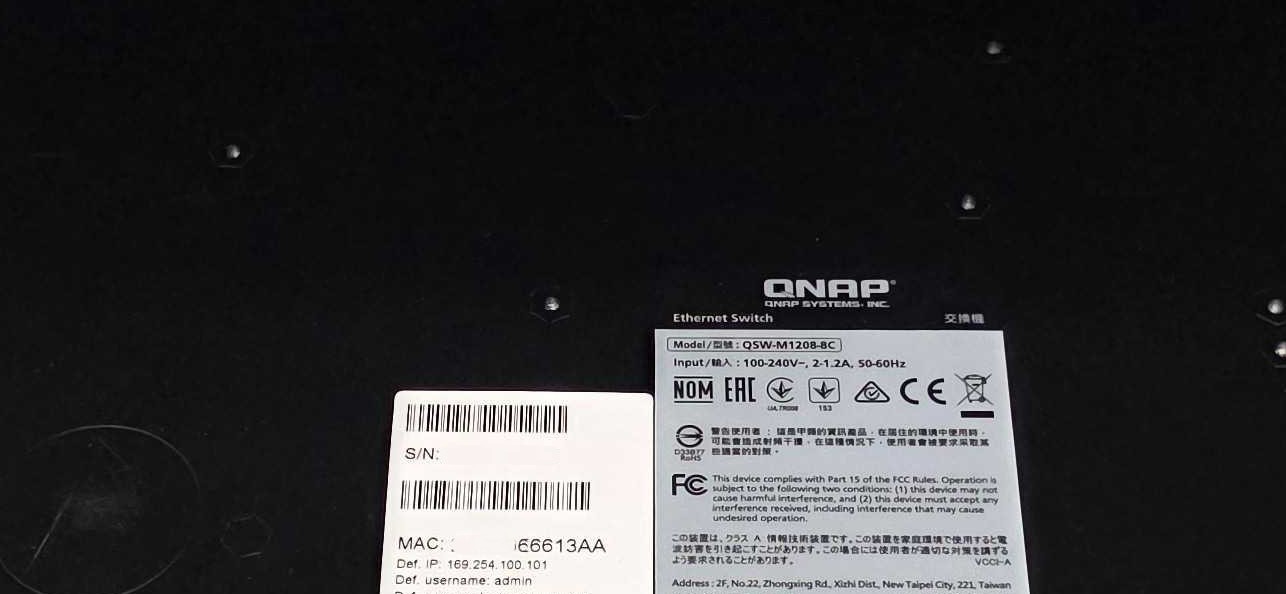

QNAP QSW-M1208-8C 12-Port 10GbE Web Managed Switch (8x Combo / 4x SFP+)
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
QNAP QSW-M1208-8C 12-Port 10GbE Web Managed Switch (8x Combo / 4x SFP+)
Price: US $585.00
The QNAP QSW-M1208-8C 12-Port 10GbE Managed Switch is a high-performance Ethernet switch designed for enterprise networking and server connectivity. With 12 ports featuring a combination of RJ45 and SFP+ interfaces, this switch supports 10 Gigabit Ethernet technology with a maximum LAN data rate of 10 Gbps. It is fully managed and rack-mountable. The QNAP QSW-M1208-8C offers fast data transfer rates and a reliable network management solution for businesses seeking high-speed connectivity.Management Ports: Web-managed via the dedicated rear RJ45 MGMT port or serial console.
  • Switching Capacity: 240 Gbps
  • Total Non-Blocking Throughput: 120 Gbps
  • MAC Address Table Size: 32K
  • Jumbo Frames Support: 9K
  • Supported Layer 2 Standards: IEEE 802.1Q VLAN Tagging, IEEE 802.3ad LACP (Link Aggregation), IEEE 802.1w RSTP, LLDP, and IGMP Snooping.
  • Port Multi-Gigabit Compatibility: The 8x RJ45 Combo Copper ports natively support 5 auto-negotiating speeds (10G / 5G / 2.5G / 1G / 100M).
  • Fiber Port Backward Compatibility: The 4x SFP+ ports support both 10GbE SFP+ and standard 1GbE SFP transceivers.
  • Out-of-Band Management: 1x Dedicated 1GbE RJ45 web management interface port + 1x RS232 Serial Console port.
  • Physical Form Factor: 1U Rackmount / Desktop profile.
  • Cooling System: 4x Internal 4cm smart fans (Quiet operation measured under <31 dB(A)).
  • Power Delivery: Internal Power Supply Unit (100–240VAC, 50/60Hz universal input). Max power draw is 70W.

Management TypeWeb ManagedNumber of Ports1210GbE SFP+410GbE SFP+/RJ45 Combo Ports8Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).Management Port1 x 1GbE RJ45Power Supply DescriptionInternal Power Supply UnitMax. Power Consumption70WInput Power TypeACInput Voltage Range100 ‒ 240VAC, 50/60HzMAC Address Table32KTotal Non-Blocking Throughput120GbpsSwitching Capacity240GbpsManagement InterfaceWebConsoleRS232FanSystem: 4 x 4 cm (12V)Sound Level<31 db(A)Supported StandardsIEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
(IEEE 802.1p Class of Service)Form FactorRackmountLED IndicatorsPer Port: Speed/Link/Activity
Per System: Power/StatusButtonsReset buttonDimensions (HxWxD)46.65 x 285 x 236.6 mmWeight (Net)4.85 lbsOperating Temperature0°C to 40°C (32°F to 104°F)Relative Humidity5%–95% (non-condensing)CertificationsFCC, CE, VCCI, BSMI, RCM, WEEEElectromagnetic ComplianceCLASS AJumbo Frames9K
