New, originally purchased from Digi-Key and never used. FLIR lepton sensor is not included and must be purchased separately.
Copied description:

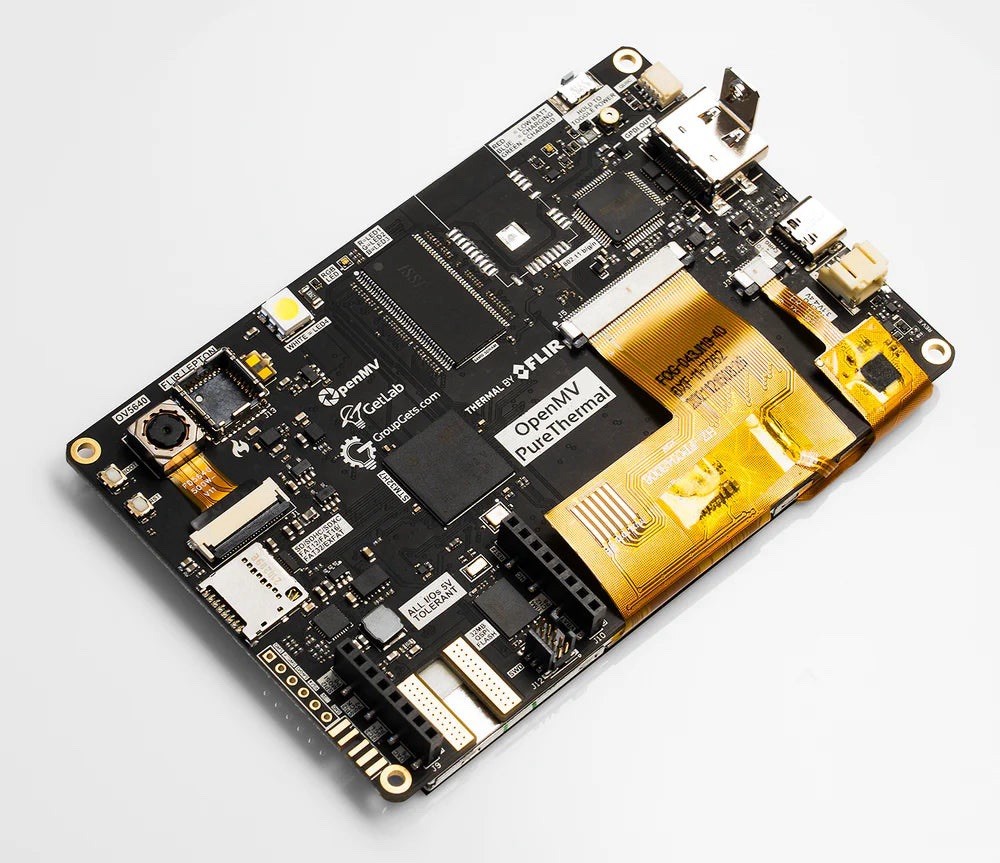

The PureThermal OpenMV by GetLab is a co-designed collaboration product between GetLab and OpenMV to produce a high-end mixed color and thermal camera for professional applications. For sensors the board features a 5MP OV5640 camera module, a FLIR Lepton socket capable of supporting any FLIR Lepton, and the VL53L0X laser range finder to assist in drawing the thermal image on the color image using the right offset/scaling. Live video can be displayed on the 4.3” 800x480 IPS TFT capacitive touch LCD onboard, mirrored to an HDMI monitor, or streamed over WiFi via RTSP. Finally, the PureThermal OpenMV can be programmed like any OpenMV Cam in Python to make it do anything you like via the MicroPython API. The PureThermal OpenMV is the product you’ve been waiting for!
The PureThermal OpenMV is based on the OpenMV Cam H7 Plus by OpenMV. You program it with the amazing OpenMV IDE. It’s got TensorFlow support and can run Neural Networks, it can track colored objects, do person detection, and much more! For a complete description of all the functionality onboard and what can be done see the API. Here’s what’s onboard:
The STM32H743XI Arm® Cortex®-M7 SoC running at 480 MHz
w/ 64 MB of SDRAM running at 400 MB/s
w/ 32 MB of QUADSPI flash running at 50 MB/s
RTC for date/time stamp keeping when battery backed
The OV5640 5MP (2592x1944) Color Camera Sensor
w/ Autofocus Support
A FLIR Lepton Socket
Supports the FLIR Lepton 1/2/2.5/3/3.5
Supports non-radiometric/radiometric Leptons seamlessly
SUPPORT FOR GETTING THE TEMPERATURE PER PIXEL IN CELSIUS!
This is a frequently asked question. Yes, this product can do everything.
The VL53L0X Laser Range Finder (can measure up to 2 meters)
A microSD Card socket
Supports SD/SDHC/SDXC microSD Cards
Supports FAT12/FAT16/FAT32/exFAT
An RGB LED Indicator
A High-brightness White LED Illuminator
A buzzer with volume and frequency control for audio notifications
The WINC1500 WiFi Soc (FCC Certified)
Can stream MJPEG compressed images at up to 12 Mb/s using RTSP
Or can be used for internet connectivity for any purpose
A 4.3” 800x480 IPS TFT capacitive touch LCD
24-bit color refreshed at 60 Hz
Backlight dimming supported
Up to 5 point at a time touch detection for Rich GUI support
Gesture Detection
Pinch Zoom In/Out
Swipe Left/Right/Up/Down
HDMI Display Output - can mirror the display or run without the onboard display
Up to 1280x720 at 60 Hz is support
In special cases 1920x1080 is supported
Can do 1920x1080 at 30 Hz dynamic images
Can do 1920x1080 at 60 Hz static images
USB-C for power, battery charging, and connecting to the PC
Files on the 32 MB QUADSPI or microSD card can be accessed over USB
Appears as a 12 Mb/s Virtual COM port for command and control
Sparkfun qwiic connector for attaching external I2C devices
Can connect the board to Seeed Studio Grove Connector
Can connect the board to Adafruit Stemma Connector
1S Lipo connector for battery support
Battery will be charged when USB-C is connected
10 GPIO Pins with special function support for:
1 DAC/ADC Pin (3.3V)
2 Async Serial RX/TX Ports (up to 7.5 Mb/s)
1 CAN Bus (up to 1 Mb/s)
1 SPI Bus (up to 80 Mb/s)
1 I2C Bus (up to 1 Mb/s)
2 Servo Channels
PWM on every GPIO Pin
Interrupts (rising/falling) on every GPIO Pin
Standard ARM SWD-JTAG Connector
