Single 250µm fiber. 2.5mm diameter after shrinkage, Length 45mm (60mm/40mm is optional)
Highest Quality, Factory wholesale price, Free Shipping,Fast Delivery.
ZL/PZ-XXB Pre-shrunk Series are high quality, long-term reliability Fibre Optic Fusion Splice Protector Sleeves. Designed to restore the mechanical strength, environmental protection and optical performance of single optical fiber after fusion splicing
KEY FEATURES
- Clear sleeve make it easy to detect splice before shrinkage
- Airproof structure keeping the splice point's good resistance of humidity and temperature
- Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
- Easily use and avoid any damages to the optical fiber during installation
- Single holed(pre-shrunk)ends eliminates improper fiber threading
- Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
- Extended liner length prevents contact between the fiber and ther backbone
- High quality and reliability with Industry Standard
- Specialist Manufacturer with 15 years proven reliability
- Single fiber entry hole for faster installation
- Encapsulated reinforcing pin
- UL Approved high quality materials
- Compatible with most fibers, splice trays and ovens
- Over one Million ZL/GTseries held in stock
MATERIAL SPECIFICATION
- Application Type: Single Fiber 250/900µm
- Compatibility: Most splice trays, ovens and coated fibers
- Outer Material: Cross-linked Polyolefin Heat Shrinkable Tubing +135°C MIL Spec.
- Inner Material: Hot-melt adhesive Ethylene Vinyl Acetate (EVA) Copolymer
- Reinforcing Pin: Stainless Steel 304 with polished and rounded edges
- Colours: Clear for easy visual inspection
- Splice Operating Temperature: -40°C to +70°C (Heat shrink outer rated at -55°C to +135°C)
- Storage Temperature: -40°C to +70°C
- Package Quantity: Bags of 100pcs. 500pcs/large bag.
Product specifications
- Whole length: 45mm
- Outer diameter after recovery: OD2.5 mm +/- 0,1mm
- Hole diameter before recovery: OD1,3mm
- Stainless steel needles diameter: OD 1.2mm
- Minimum installation(shrinking) temperature: 110°C
- Max installation time: 60 seconds
- Standard color: Clear
- Low Temperature property: No crackle at -55°C lasting 4 hours
- RoHS compliant
- Packing: 100 pcs per bag (Others for special order)
Construction:
Our fiber optic fusion splice protector sleeves are manufactured pre-shrunk in a heat-bonded assembly that consists of three components:
- An outer of heat-shrinkable tubing
- A reinforcing strength member
- An inner tube of hot-meltable adhesive
The hot-melt adhesive inner tube bonds to both the fiber and the heat shrinkable outer tube to encapsulate the fusion splice joint and provides vibration damping and an environmental seal, protecting the fiber from damage and contaminants.
The outer high quality irradiation cross-linked polyolefin heat shrinkable tubing provides an instant shrink-force and drives the adhesive liner into all areas of the splice and excludes all the air.
Packing Contents

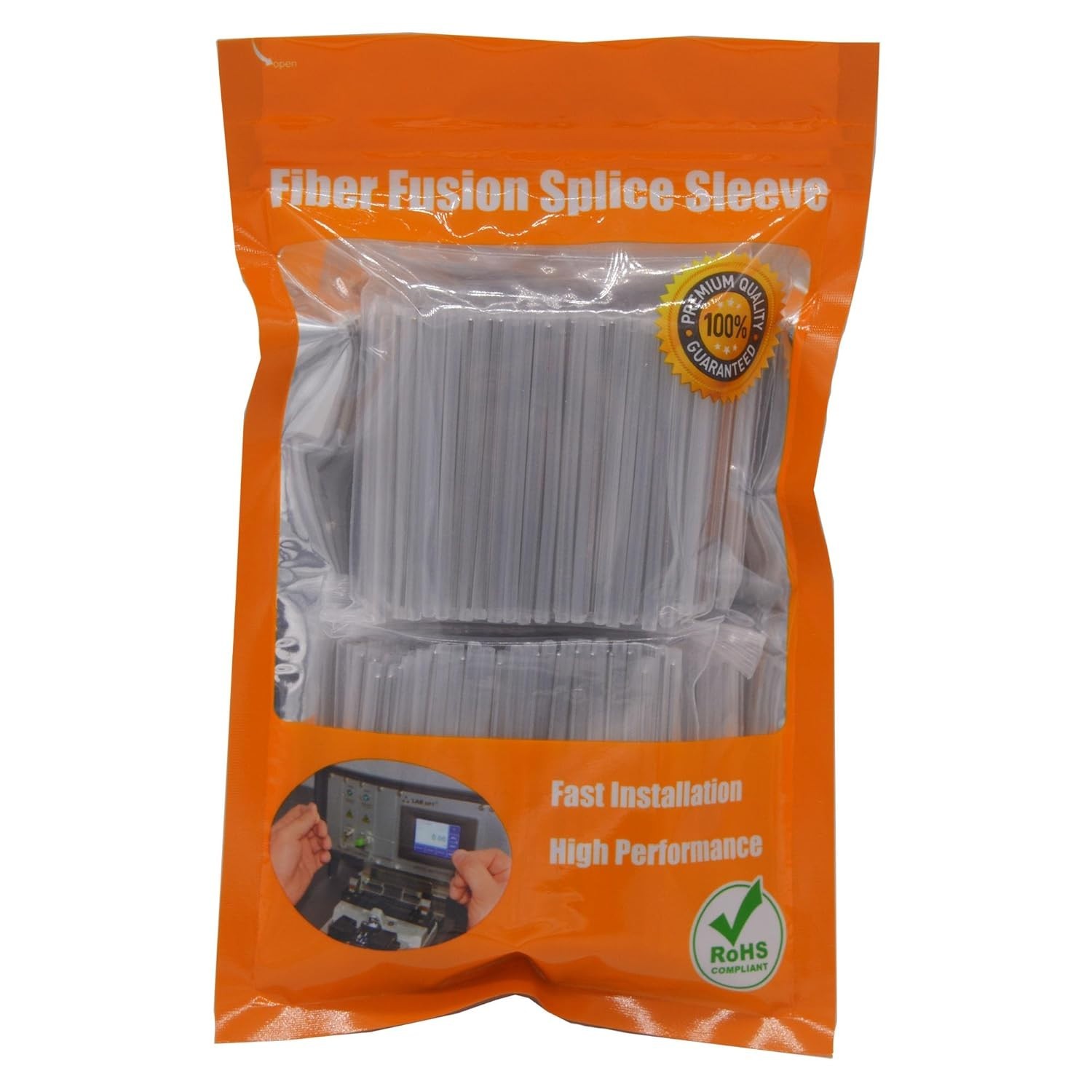

- 400pcs x (PZ-45B) Pre-shrunk fiber optic protector sleeve
