Overview

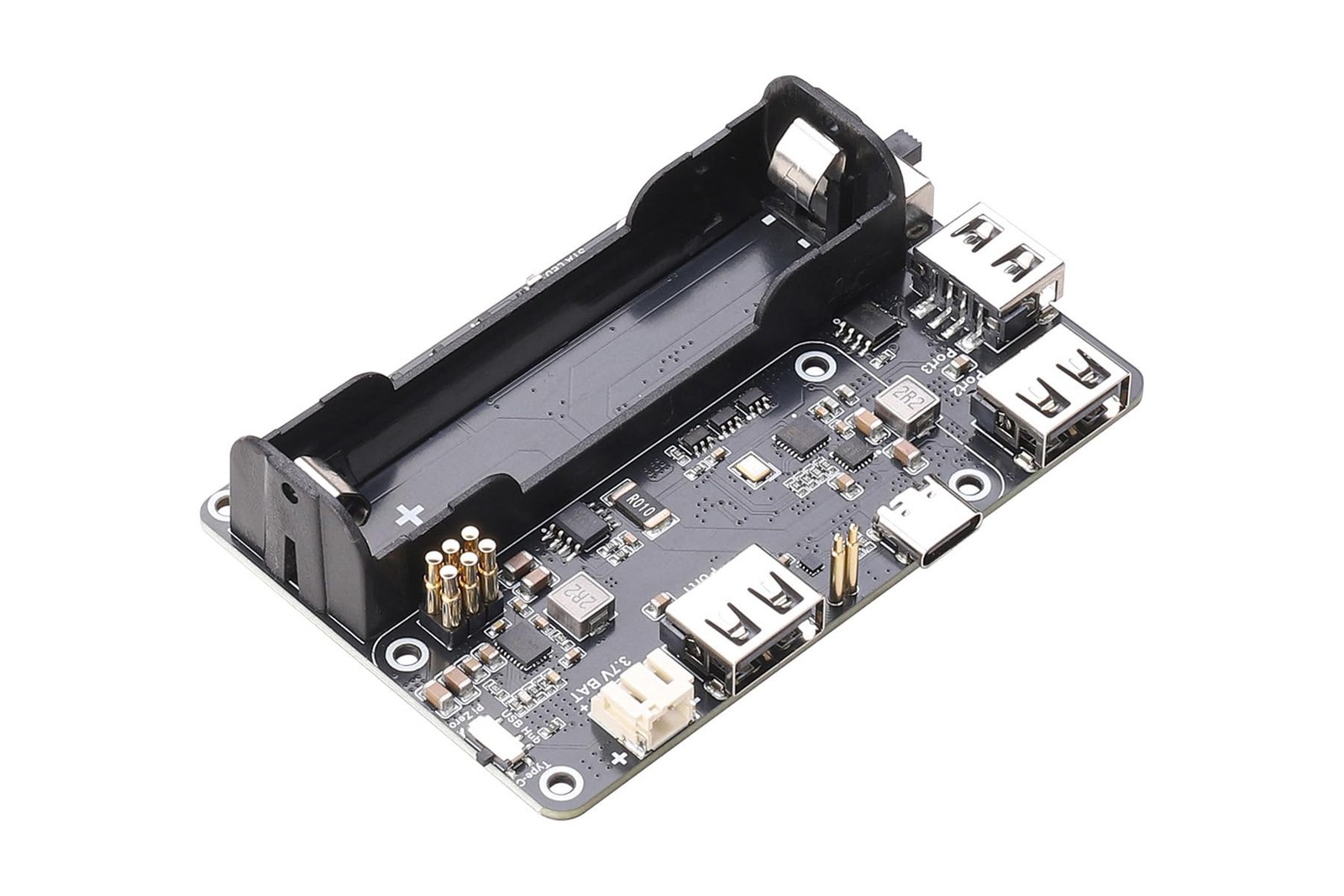

The Pi Zero UPS HUB HAT combines a UPS (uninterruptible power supply) and 3-port USB 2.0 hub into a single compact module, designed to enhance the performance and reliability of Rasp-Pi Zero
systems. It provides continuous power delivery and multiple USB expansion options, ideal for IoT, automation, or portable applications.
This module ensures your Pi Zero remains powered during unexpected outages. With a power-path charging chip, it automatically switches between external input and the connected 3.7V 18650 ba-ttery
without rebooting the system. You can safely run your applications or record data without the risk of corruption caused by sudden power loss.
The integrated 3-port USB hub expands the Pi Zero’s limited connectivity, allowing you to connect a variety of devices such as flash drives, sensors, and input peripherals. A physical mode switch lets you
toggle between Normal HUB and Pi Zero HUB modes, making it versatile for different usage scenarios.
Built-in status indicators clearly display power and communication activity for each USB port, along with ba-ttery charge and discharge status. The boost converter circuit ensures a stable 5V output, while
the ba-ttery monitoring chip helps track voltage and current in real time — perfect for developers who need performance response in low-power environments.
With its reverse-connection protection and reliable circuit design, this UPS hub board is safe to use and easy to install. It directly connects to the Pi Zero via pogo pins or headers, keeping the setup neat and
compact.
Key Highlights:
Designed for Rasp-Pi Zero / Zero W / Zero 2W
3-Port USB 2.0 expansion with indicators
charging & power-path management
18650 ba-ttery holder and monitoring circuit
Compact design with secure power protection
Ideal for portable devices, IoT nodes, gateways, or small servers that demand both stable power and additional USB connectivity.
With the Pi Zero UPS HUB HAT, your projects stay powered, protected, and connected — anywhere, anytime.
Package Contents
1. Pi Zero UPS USB HUB x 1
2. M2.5 x 10 + 4mm copper standoffs x 4
3. M2.5 x 7mm dual-channel x 6
4. M2.5 screws x 7
✅ UPS Power Backup for Pi Zero Projects — Designed for Rasp-Pi Zero series, this UPS expansion board keeps your system powered during outages, preventing unexpected shutdowns and data loss.
✅ 3-Port USB 2.0 Hub Expansion — Features three standard USB 2.0 ports, supporting simultaneous connection of keyboard, storage, and peripherals — perfect for extending Pi Zero functionality.
✅ Charging Circuit with Power-Path Management — Equipped with an intelligent charging management IC, enabling seamless transition between external power and ba-ttery supply for true uninterrupted operation.
✅ 18650 Ba-ttery Holder with Indicators — Built-in 18650 ba-ttery holder and external connector offer flexible power options; indicators show charging, discharging, and power status clearly.
✅ Safety Protection & Easy Installation — Includes reverse-polarity protection, voltage boost, and selectable Normal / Pi Zero HUB mode via onboard switch. Compact and plug-and-play for any Pi Zero setup.
