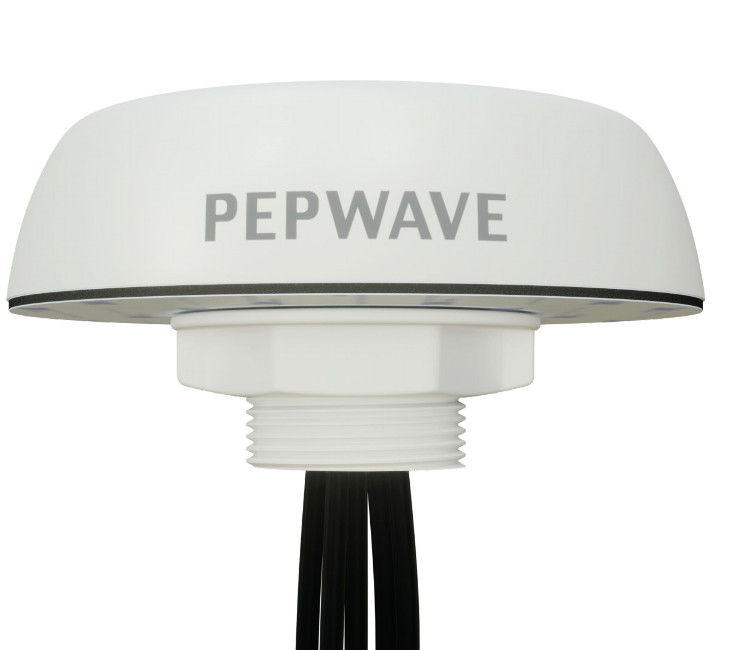

The Peplink Mobility 40G is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.

The Mobility 40G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments.

• 4x4 MIMO 5G ready cellular antenna system with GPS receiver
• Cellular frequencies 600-6000 MHz
• B71 Support
• Durable and UV-stable housing
• Black or white color options
• IP68 rated

Cellular frequency bands

• 0.3dBi@ 617-960MHz
• 5.1dBi@ 1710-2700MHz
• 5.8dBi@ 3400-4200MHz
• 7.0dBi@ 4900-6000MHz

Cellular BandsLTE bands B1 to B86 (except B31, B72, B73, B87, B88), 5G bands n1 to n99
GPS frequency bands 1.6dBi, LNA 28dB: 1561-1602MHz

Coax cable type
CFD-200 (4G/5G)
RG-174 (GPS)

ANT-MB-40G-S-W-6: 4xLTE, 1xGPS 600-6000MHz, IP68, SMA, White, 6.5ft / 2m

Mounting Supported types
Panel, wall, pole
Mounting hole 1 11/16" / 43mm
Max panel thickness 19/32" / 15mm
