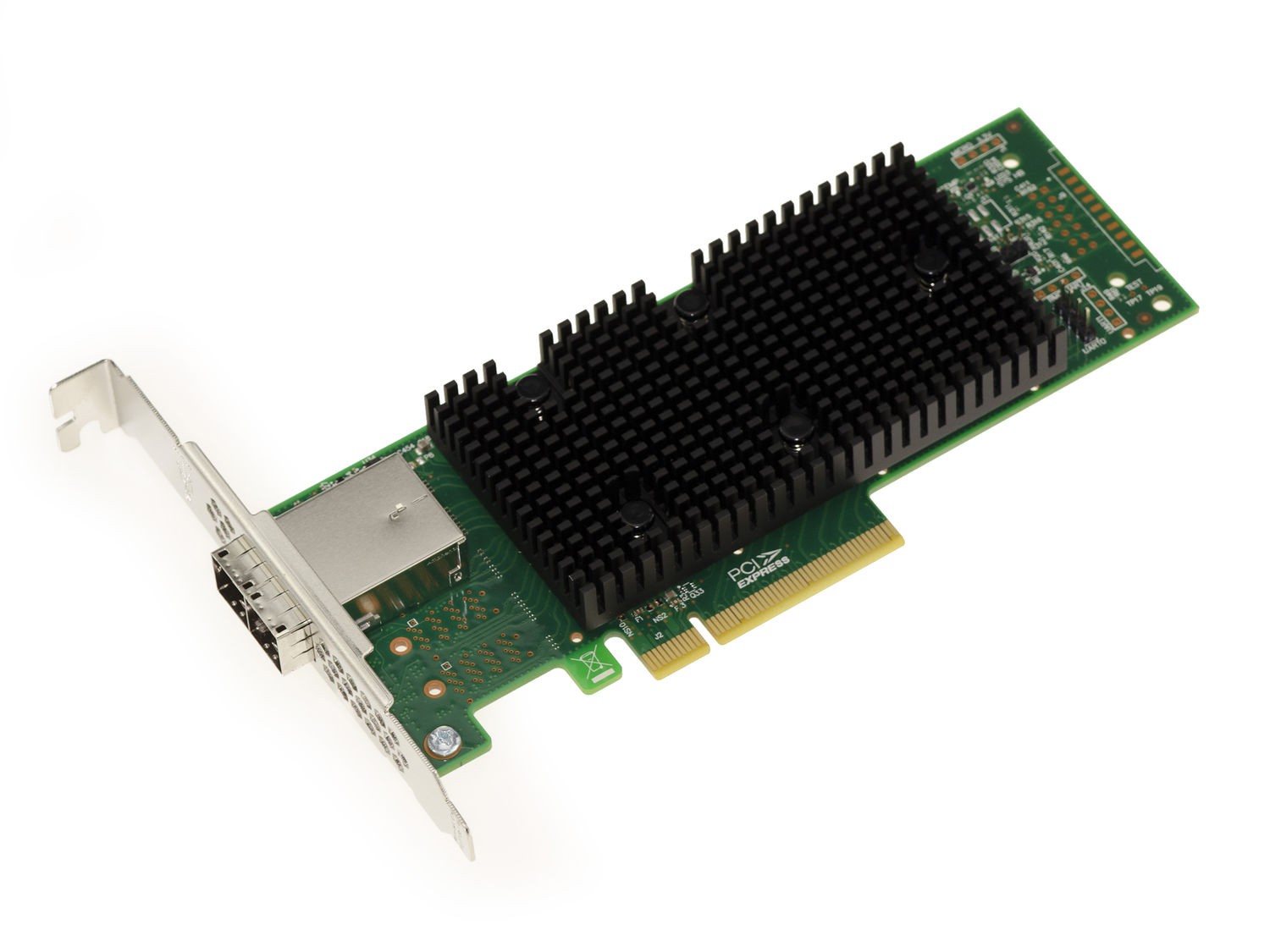

Card delivered in "OEM" version, that is to say delivered in a neutral box and with drivers to download. It allows you to add 8 external SAS ports to a PC or server via an 8x (or 16x) PCIe 3.1 (or higher) connector.
Advantages:
SAS and SATA support.
PCIe 3.1 x8,
High performance, with transfer rates of 12GB/s and multiple SAS cores,
Description:
SAS 3408 controller.
8 external ports through 2 Mini SAS HD SFF8644 connectors each supporting 4 drives.
Data transfer rate 12Gb/s compatible with SAS 3.0.
Maximum number of devices supported: 1024 SATA or SAS HDD / 24 NVMe SSD.
PCIe 3.1 type 8x bus. Form factor: Low Profile, supplied with Low and High Profile brackets. Support for Passive Copper, Active Copper, Active Optical connectors.
Operating voltage +12V +/-8% 3.3V +/-9%.
Power consumption 9.48W.
Environment: operation from 0°C to 55°C, storage from -45°C to 105°C, RH 5 to 90%.
Lifespan greater than 4,500,000 hours.
Compatible with the following OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS, Linux, Debian Linux, Oracle Enterprise Linux, Fedora, and FreeBSD.Card delivered in "OEM" version, that is to say delivered in a neutral box and with drivers to download. It allows you to add 8 external SAS ports to a PC or server via an 8x (or 16x) PCIe 3.1 (or higher) connector. 8 external ports through 2 Mini SAS HD SFF8644 connectors each supporting 4 drives. Maximum number of devices supported: 1024 SATA or SAS HDD / 24 NVMe SSD. PCIe 3.1 type 8x bus. Form factor: Low Profile, supplied with Low and High Profile brackets. Support for Passive Copper, Active Copper, Active Optical connectors. Environment: operation from 0°C to 55°C, storage from -45°C to 105°C, RH 5 to 90%. Compatible with the following OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS, Linux, Debian Linux, Oracle E Recommended products Provided by Pcie 3.0 Controller Card SAS + SATA - 12GB - 24 Internal Ports - OEM 9305-24i View product PCIE 3.0 SAS SATA 12GB - 8 Internal Ports - OEM 9300-8I - SAS 3008 Fusion View product KALEA-INFORMATIQUE PCIe IDE Controller Card (2 Ports) + SATA/eSATA (2 Ports) View product PCIe 3.0 X4 Controller Card 5 SATA 3.0 6G Hard Drive Ports JMB585 View product PCI EXPRESS (PCIE) SATA III Controller 6GB / 2 Ports View product Pcie Raid Sata III 6GB 4 Ports Marvell 88se9230 View product Controller Card PCIe 2.0 x1 to SATA 3 6G 8 Ports - CHIPSET MARVELL 88SE9215 View product Pcie Sata III 6GB Controller 2 Ports ASM1061 High Low Profile Compact View product
