Panorama Antennas L[G]M[H]M4[B]-6-60[-24-58] Antenna Panorama Antennas L[G]M[H]M4[B]-6-60[-24-58] Antenna

International Customers: All electronic products are packaged for sale in the US with US voltage.

Application/Usage:

Cellular Product Description

This item is brand-new, factory sealed.

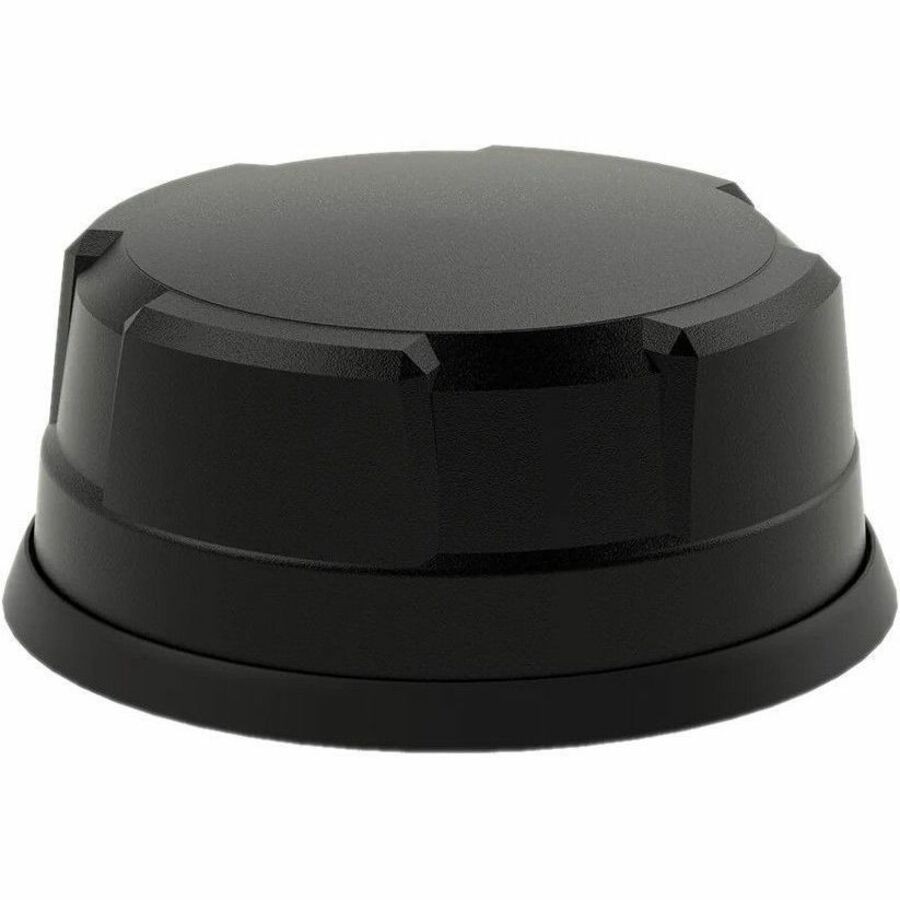

The MAKO® 5G Dome is a range of high-performance 44 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 22, 33 or 44, or 66 MiMo/Diversity at 2.4/5.0/7.2GHz.

The MAKO® 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.

Although the LTE elements are designed for 44 MiMo operation, it is possible to utilize these as 2 pairs of 22 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.

Guidance on the correct connection of the LTE antennas is provided in the installation instructions. Please Note: This antenna is not intended for use with a router that has 2 SIMS to provide concurrent or aggregated data operation, as there is not sufficient isolation between the MiMo pairs.

SpecificationPhysical CharacteristicsForm Factor

• Panel Mount
• Magnetic Mount

Product ColorBlackHeight3.15"Color Type

• 617 MHz to 960 MHz
• 1710 MHz to 3800 MHz
• 4900 MHz to 6000 MHz
• 1562 MHz to 1612 MHz

Antenna Gain26 dBAntenna Gain (Isotropic)9 dBi Shipping
