The black Panduit CGJT tool is used to terminate this jack.

Description:

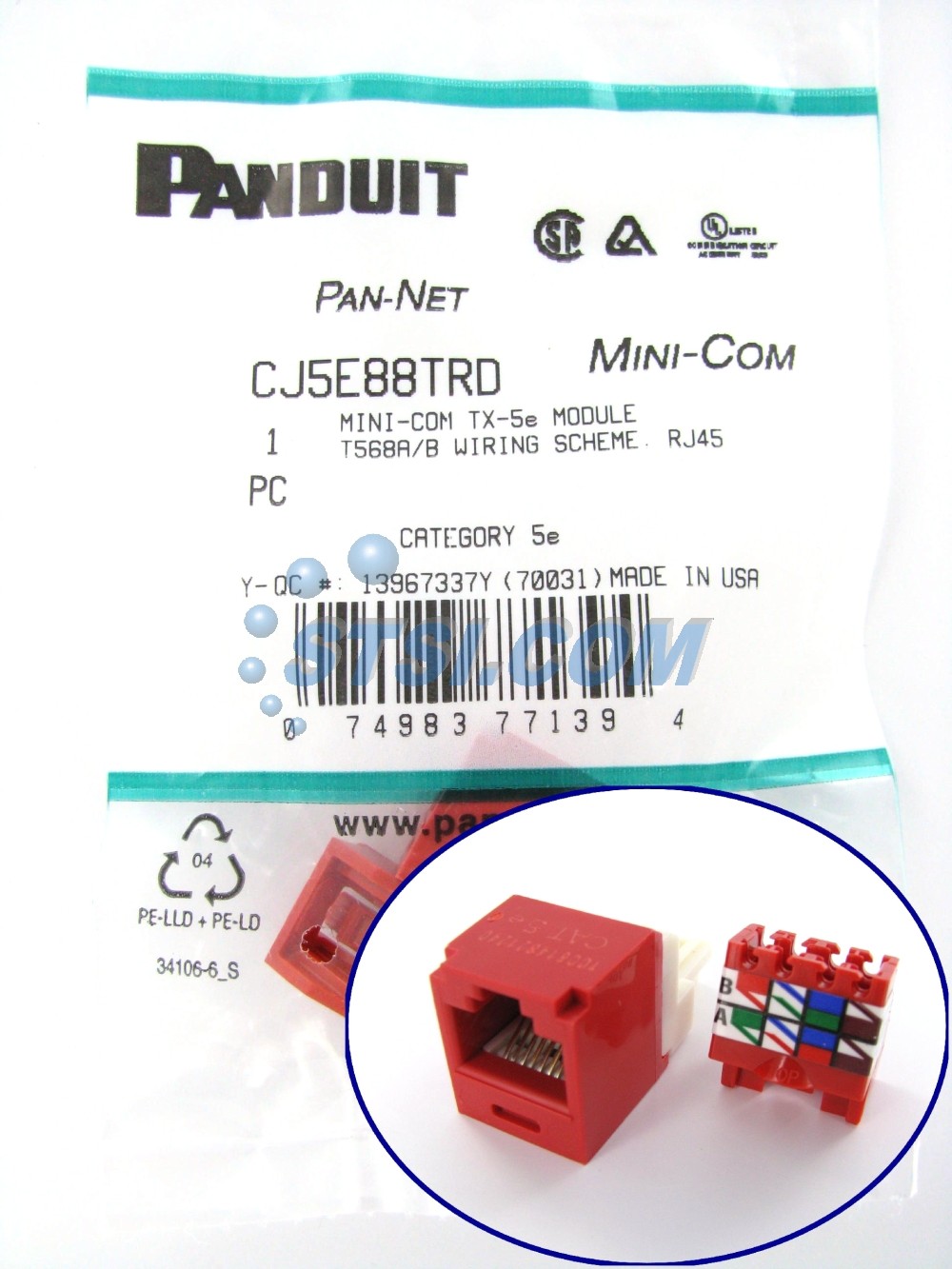

The Mini-Com® Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Red.
Features:

• Exceed requirements of ANSI/TIA-568-C.2 Category 5eabd ISO 11801 Class D channel standards
• Exceed ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D component standards
• Meet requirements of IEEE 802.af and IEEE 802.3at for PoE applications
• Each jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability
• Utilize patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
• Contacts plated with 50 microinches of gold for superior performance
• No punchdown tool required; termination tool (CGJT) ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
• Red termination cap designates Category 5e performance
• Terminate 4-pair, 24 – 22 AWG, 100 ohm, solid twisted pair cable
• Universal termination cap is color-coded for T568A and T568B wiring schemes
• Can be clearly identified with optional labels and icons
• Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Number CJ5E88TRD
• RoHS Compliancy Status Compliant
• Part Description Category 5e, 8 position, 8 wire universal module.
• Product Type Giga-TX Copper Module
• Color Red
• Depth (In.) 1.43
• Depth (mm) 36.4
• Height (In.) 0.71
• Height (mm) 18.1
• Width (In.) 0.62
• Width (mm) 15.8
• CE Compliant No
• Modular Jack Type RJ45
• No. of Module Spaces 1
• Performance Level Category 5e/Class D
• Pricing Description Mini-Com Module, Cat 5e, UTP, 8 pos 8 wire, Red, T Style
• Wiring Scheme T568A and T568B
