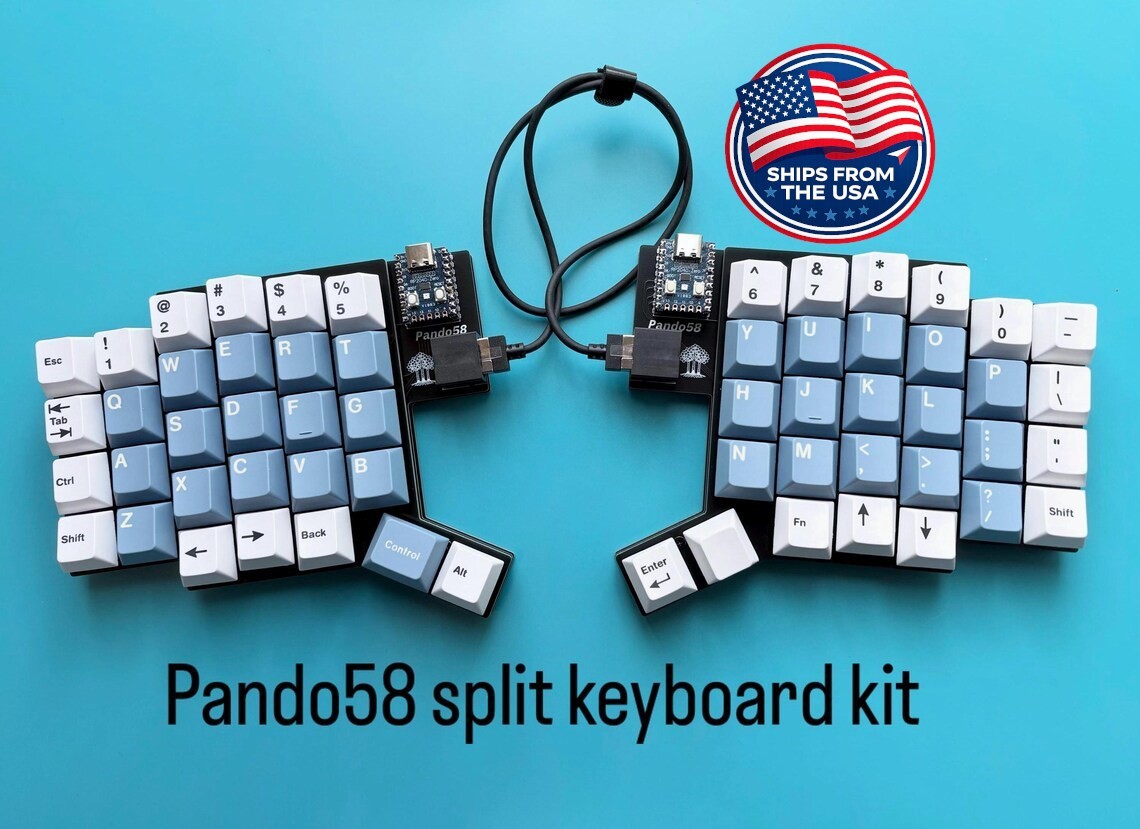

PANDO58: 58-KEY COLUMN-STAGGERED SPLIT KEYBOARD KIT
The Pando58 is a modern, open-source split keyboard designed for reliability, ergonomics, and customization. Built around the powerful RP2040-Zero, this 58-key column-staggered layout offers a solid ergonomic foundation for programmers, writers, and keyboard enthusiasts.
--- WHY CHOOSE PANDO58? ---
Unlike most split keyboards that use fragile TRRS cables (which can short and damage your microcontrollers if plugged in while powered), the Pando58 uses industrial-grade RJ45 interconnects. This makes the board much more reliable, allows safe hot-plugging, and significantly reduces the risk of damage over time.
Pando58 uses through hole components and is designed to be builder friendly.
--- OPTION 1: PCB SET ---
Perfect for builders who already have a parts bin.
- 2 x Pando58 PCBs (dedicated Left and Right)
- 2 x FR4 Switch Plates (top layer)
- 2 x FR4 Bottom Plates (base layer)
--- OPTION 2: FULL KIT ---
Includes everything needed for the hardware side of the build:
- Everything in the PCB Set
- 2 x RJ45 Ports (high-reliability interconnects)
- 1 x RJ45 Interconnect Cable
- 60 x Through-Hole Diodes
- Hot-swap MCU sockets (male + female headers)
- 10 x M2 8mm Brass Standoffs
- 20 x M2 4mm Screws
- 8 x 3M SJ5302 Transparent Bumpons (rubber feet)
--- REQUIRED TO COMPLETE THE BUILD ---
You will need to provide:
- 2 x RP2040-Zero MCUs (Waveshare or compatible)
- 58 x MX-style switches (supports hot-swap sockets or direct soldering)
- 58 x MX-style keycaps
- 1 x USB-C cable
Optional upgrade: 58 x MX hot-swap sockets (if you prefer not to solder switches directly)
--- TECHNICAL SPECIFICATIONS ---
- Layout: 58-key split, column-staggered
- Controllers: Dual RP2040-Zero
- Firmware: Full VIAL support (remap keys, macros, and layers in real-time with no reflashing)
- Build style: Beginner-friendly through-hole diodes
--- SHIPPING & SUPPORT ---
Pando58 is proudly designed in Washington, USA.
All kits are carefully packed and shipped from Washington, USA.
**This is a DIY kit — basic soldering is required.**
Message me anytime if you need the full build guide, source code, firmware files, 3D printed case files or help with your build. I'm happy to support buyers through the entire process.
