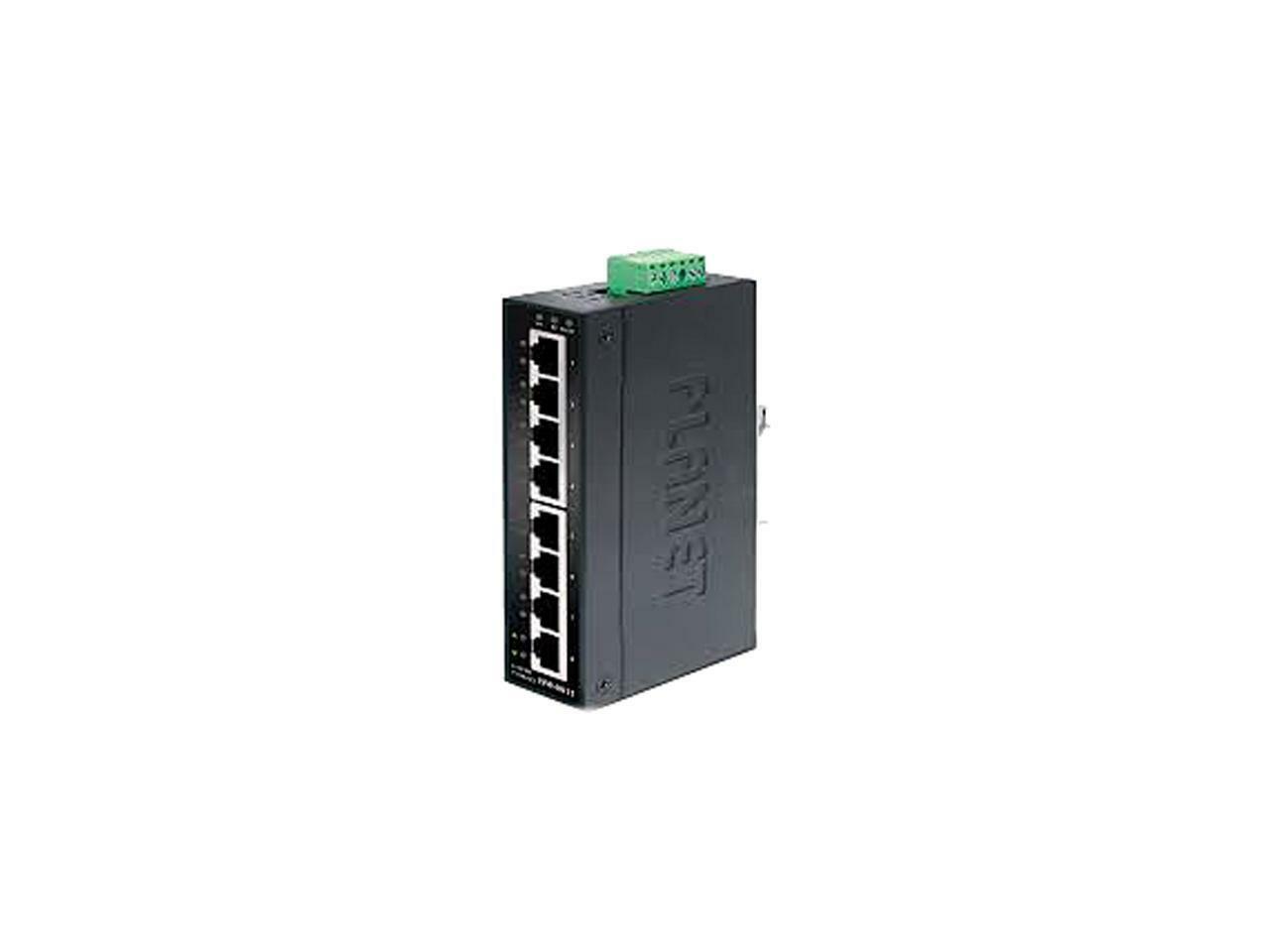

Slim type with more practicability and convenience After PLANET ISW / IFT series Fast Ethernet Switch / Converter products being popular PLANET now releases the advanced industrial hardened Fast Ethernet Switch series with slim type IP-30 metal case. The compact IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The ISW-801T one of the new series model equips with 8 10/100Mbps auto negotiation ports and operates reliably in Heavy Industrial demanding environments. Stable operate performance under difficult environments The ISW-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 Degree C the ISW-801T can be placed in almost any difficult environment. The ISW-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Robust Switch performance The ISW-801T offers high performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 2K MAC Address table the ISW-801T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables the ISW-801T to provide fast and reliable data transfer. All of the RJ-45 copper interfaces in the ISW-801T support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 3 4 or 5 cables. The standard Auto-MDI / MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Learn more about PLANET & StandardsFormatWall MountableStandardsIEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3x Full Duplex Flow ControlIEEE 802.3az Energy Efficient EthernetNetwork Management TypeUnmanagedPorts & InterfacePrimary Ports8 x RJ45Primary Port Speed10/100MbpsData TransmissionMAC Address Table1KSwitching MethodStore and ForwardDetailsBuffer MemoryEmbedded 448K bits packet bufferLEDs3 x LED for System and PowerGreen: DC Power 1Green: DC Power 2Green: Power Fault1 x LED for each Copper PortGreen: 10/100 LNK / ACTPowerPower Requirements: 12~48V DC, redundant power with polarity reverse protection function, 24V AC power supportPower Consumption / Dissipation: 2.1 watts / 7.1 BTUFeaturesFeatures8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X functionComplies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standardBackplane (switching fabric): 1.6 GbpsAutomatic address learning and address agingIP30-rated metal case12 to 48V DC, redundant power with polarity reverse protection functionDIN rail and wall mount designDimensions & WeightDimensions1.26" x 5.31" x 3.43"Weight0.94 lb.EnvironmentalTemperatureOperating Temperature: -40 ~ 75 degree CelsiusStorage Temperature: -40 ~ 75 degree CelsiusHumidityOperating Humidity: 5% ~ 95% non-condensingStorage Humidity: 5% ~ 95% non-condensingShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
