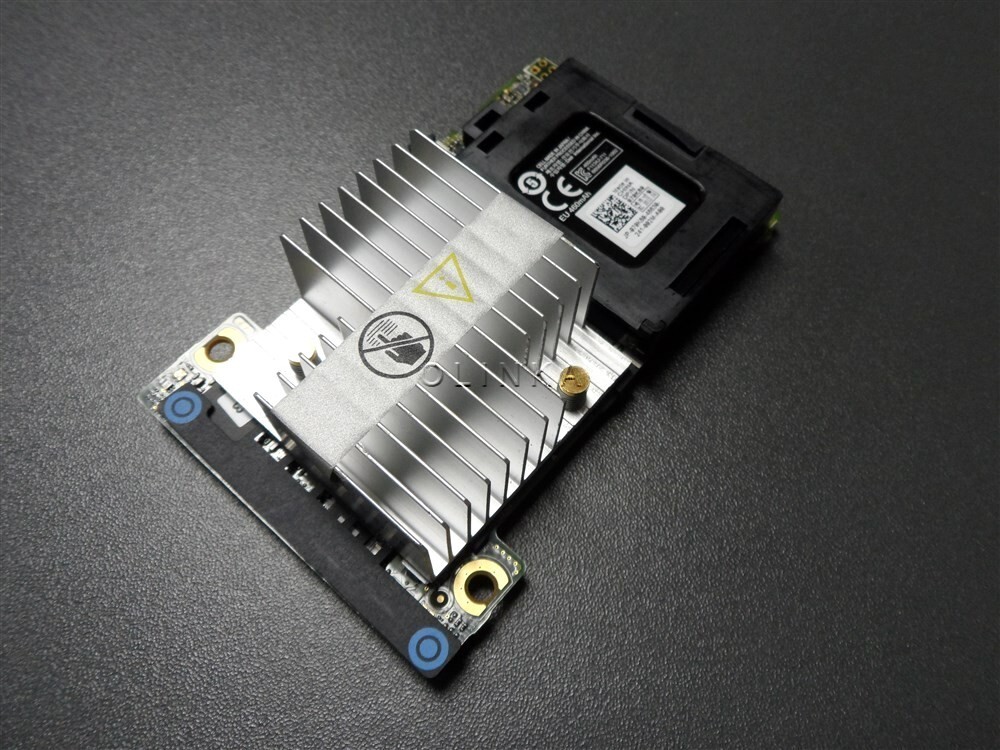

PERC H710P MINI TY8F9 TTVVV N3V6G RAID 6G 1GB BATTERY DELL POWEREDGE SERVER R320
OUR DELL SERVERS CAN BE CUSTOMIZED TO FIT YOUR NEEDS AND BUDGET
SOME SERVICE TAGS MIGHT HAVE BEEN REMOVED BY DELL AND NO LONGER VALID
DELL WARRANTY NOT OFFERED UNLESS IT ISMENTIONED IN THE LISTING
WE OFFER 30 DAYS IN HOUSE WARRANTY ON ALL PRODUCT WE SELL
PICTURES ARESTOCK PHOTO AND NOT OF THE ACTUAL ITEM
BUSINESS HOURS AREFROM 10 AM TO 4 AM MONDAY THROUGH FRIDAY (CENTRAL TZ)
CLOSEDON ALL FEDERAL HOLIDAYS
COMPATABILITY:R320
SPECS:See table bellow
INCLUDED:Raid card with battery
PART NUMBER:TY8F9 TTVVV
CONDITION:New pull
An eight-port, 6Gb/s PCI Express RAID controller, the Dell PowerEdge RAID Controller (PERC) H710P provides high server RAID performance for database and multimedia applications. The PowerEdge RAID Controller (PERC) H710P,with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 1GB cache memory. You can deploy the PERC H710P in hard-drive-based server environments for significant performance gains. If you are implementing hybrid server platforms based on solid-state storage, these next-generation PERCs exploit the potential of solid-state drives (SSDs) for unsurpassed performance and enterprise-class reliability. Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, RAID 50, RAID 60 and NVCache, further strengthen the data-protection capabilities of the PERC H710P. Dell NVCache technology backs up the data to non-volatile storage in a power- loss event, and can store it safely for a nearly unlimited period of time.
Feature
PERC H710P technical specification
Solution provided
Eight-port internal SATA+SAS solution supporting up to 32 SAS or SATA hard-disk drives (HDDs) or solid-state drives (SSDs)
Physical dimensions
167.6mm (6.6in) x 64.4mm (2.5in) (MD2 low profile)
Connectors
Two internal mini-SAS SFF8088
Device support
Up to 32 (SAS, SATA)
Host bus type
8-lane, PCI Express 2.0 compliant
Data transfer rates
Up to 6Gb/s per port
SAS controller
LSISAS2208 dual-core PowerPC ROC
Cache size
1GB
Operating temperature
Maximum ambient temperature: 60°C
Operating voltage
+3.3V
