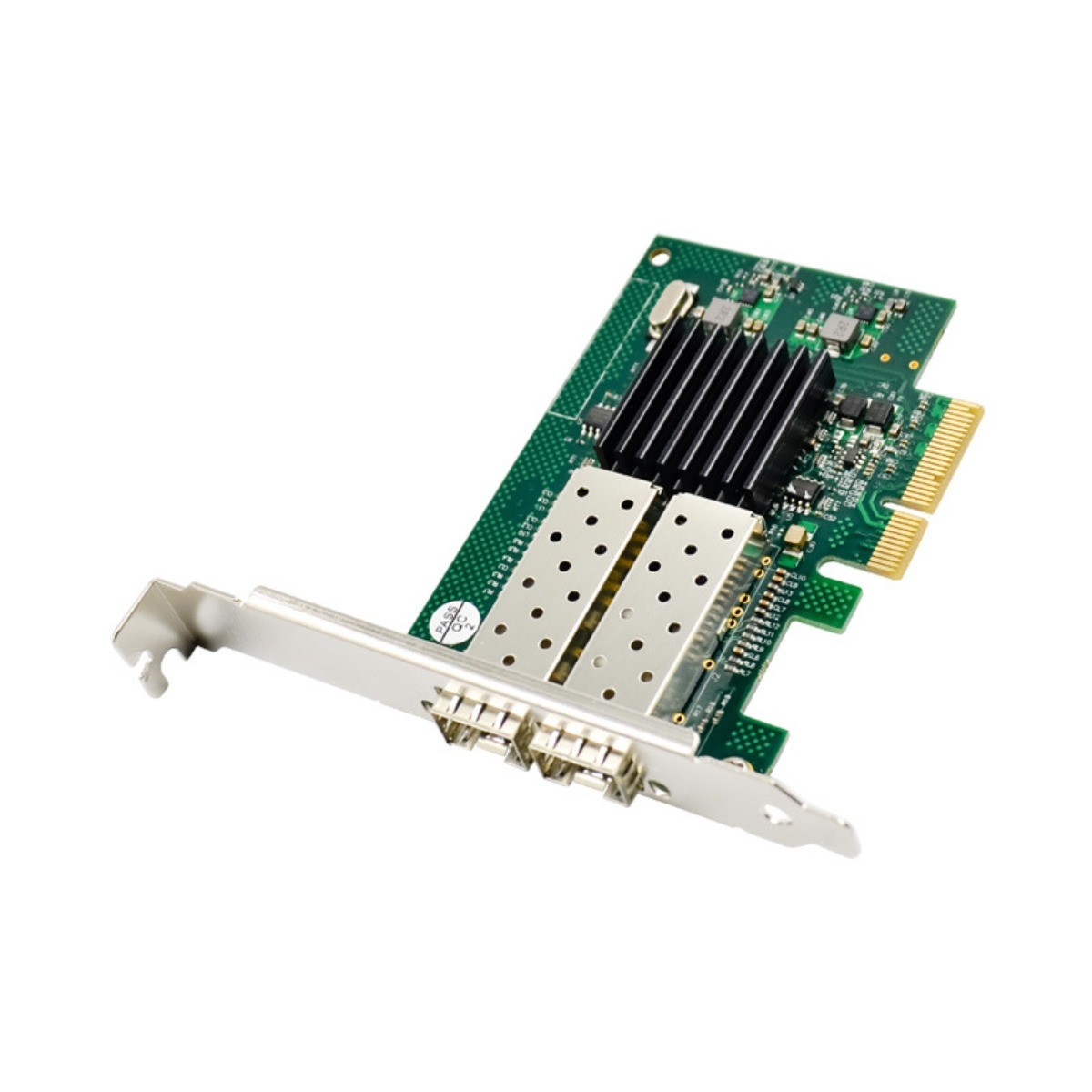

PCIe x4 Intel82576 Dual port/SFP fiber Gigabit server network card
Product Description
The new PCIe Gigabit network card adopts a single-chip, compact, low-power design, integrating a complete Gigabit Ethernet media access control (MAC)
And physical layer ports. Using Intel high-performance chip JL82576EB, based on PCI Express architecture, in a relatively small area
Implemented a dual port design, making it suitable for servers and any other personal computer.
Features
▪ Intel ® Connected Virtualization Technology (VT-c): Supports VMDq and SRIOV to optimize network performance in virtualized environments
▪ I/O Acceleration Technology (Intel) ® I/OAT: Accelerate data copying through DMA and reduce CPU usage
▪ Hardware Security: Supports MACsec (IEEE 802.1AE) end-to-end encryption
▪ Precision Time Protocol: Supports IEEE 1588 for high-precision time synchronization
▪ Intelligent uninstallation: supports TCP/UDP/IP checksum uninstallation, TCP segment uninstallation (TSO)
▪ Wake on LAN (WOL): Supports
▪ PCIe/SCSI boot: supports remote diskless boot
▪ Link aggregation: Supports IEEE 802.3ad
network type
Gigabit Ethernet
Main chipset
Intel JL82576EB
bus type
PCIe 2.0 x4，2.5GT/s
port configuration
2 x SFP
transmission rate
1 GbE
Adapter Cable
Cat5e and above copper cables ≤ 100m; SGMII supports Gigabit SFP optical ports
network topology
IEEE 802.3, IEEE 802.3z, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AE (MACsec), IEEE 1588
VLAN/QoS: 802.1Q 4096 VLANs, 802.1p traffic priority
Hardware flow control: IEEE 802.3x PAUSE
Line sequence adaptive: MDI/MDI-X automatic flipping
Start support
PXE/SCSI remote boot
Giant frame
Maximum 9.5KB bytes
LED indicator light
• unlit light=10 Mb/s; Green=100 Mb/s; Amber=1 Gb/s (copper cable)
Green=1 Gb/s; No light on=No connection (fiber optic)
Barrier configuration
Standard full height baffle; Half height baffle included in the packaging
Hardware Dimensions
113mm × 69mm
Application
▪ Server/Workstation: Dual network ports for link aggregation, sharing traffic, achieving fault tolerance, hardware offloading network tasks, and minimizing CPU resource usage
▪ Virtualization platform: Supports SRIOV multi queue splitting, allowing multiple virtual machines to share network cards and run at full gigabit bandwidth
▪ Soft router/network security device: Multiple WAN ports with overlapping bandwidth, adapted to systems such as AiKuai and ROS, for VLAN partitioning and traffic control
▪ Diskless operation and maintenance scenario: supports remote boot and wake-up via PCIe, facilitating batch deployment of terminal devices
System and driver adaptation
▪ Windows: Supports Windows 7/8/10/11 and Windows Server 2008 R2 to 2022
▪ Linux: Supports mainstream distributions such as RHEL/CentOS, Ubuntu, Debian, SLES, etc., with kernel 2.6. x and above
▪ Virtualization and others: Supports VMware iPadOS 5/6/7/8, FreeBSD, and domestic operating systems (such as Tongxin and Kirin)
▪ Not supported: macOS.
packing.
1 x PCIe x4 82576EB dual port gigabit server network card
1 x User Manual
1 x CD disc
1 x half height baffle
