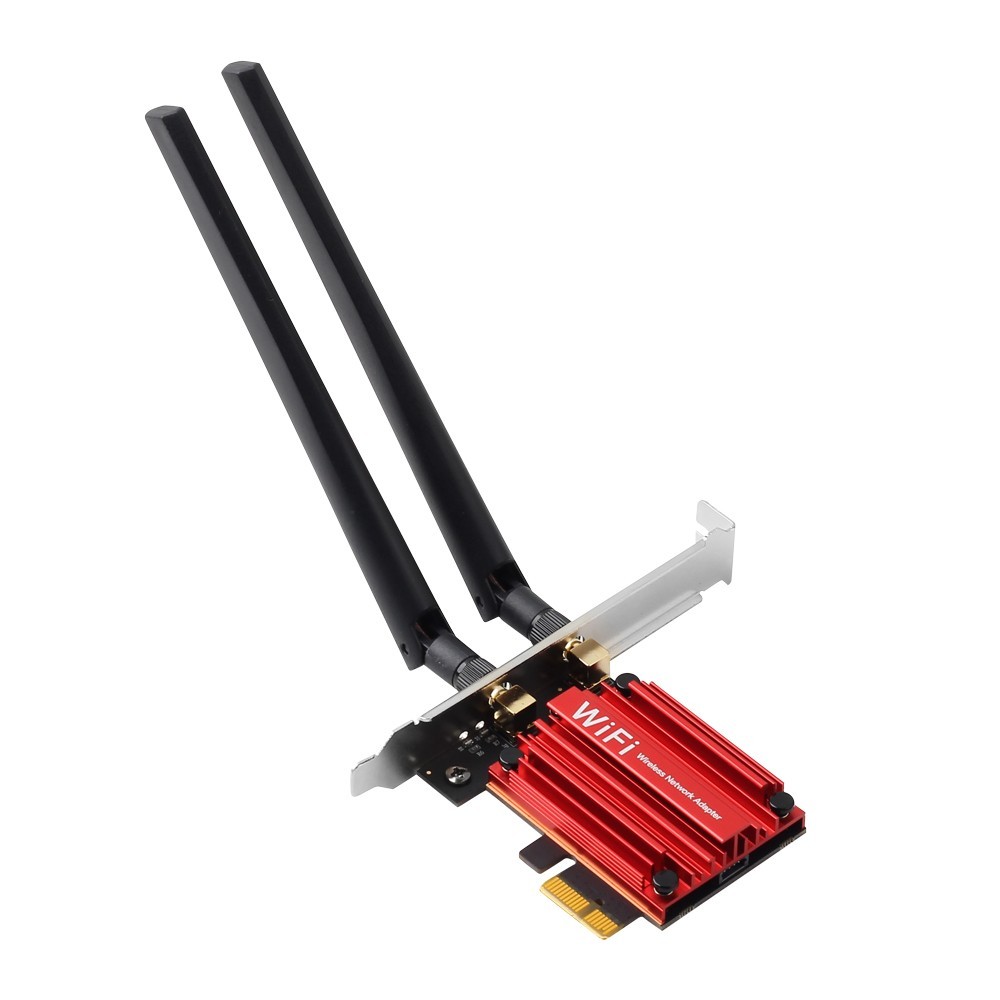

PCIe WiFi 6/6E Desktop Adapter AX200 AX210 Bluetooth Dual/Tri Band Network Card
Product Specifications
Intel AX200NGW
Model: AX3000
WiFi Standard: WiFi 6 (IEEE 802.11ax), backward compatible with WiFi 5 / WiFi 4
Frequency Bands: Dual Band 2.4GHz + 5GHz
Max Total Throughput: 574Mbps (2.4GHz) + 2400Mbps (5GHz) = 2974Mbps
Bluetooth Version: Bluetooth 5.2
Host Interface: PCIe x1 (compatible with PCIe x4 / x8 / x16 slots)
Cooling Solution: Red aluminum passive fin heatsink
Security Encryption: WPA3
Core Technologies: MU-MIMO
Supported OS: Windows 10 64-bit, Windows 11 64-bit
Product Features
1. WiFi 6 Dual Band 2974Mbps High Speed
Adopts Intel AX200 chip, 5GHz up to 2400Mbps for low-latency gaming & 4K video; 2.4GHz up to 574Mbps for long-range transmission and smart home devices. Supports OFDMA & MU-MIMO, reduces network congestion when multiple devices connect. Backward compatible with WiFi5/WiFi4.
2. Bluetooth 5.2 Wireless Connection
Built-in Bluetooth 5.2 module, provides faster pairing and stronger anti-interference performance. Easily connect wireless headsets, game controllers, wireless keyboard, mouse and other Bluetooth peripherals without extra USB Bluetooth dongle.
3. Efficient Red Aluminum Heatsink & 2 High-Gain Antennas
Equipped with full coverage red aluminum heatsink to dissipate heat efficiently, avoid thermal throttling under heavy loads. Two external high-gain antennas greatly boost signal reception and transmission range.
4. PCIe Interface & System Compatibility
Standard PCIe x1 form factor fits all PCIe x1/x4/x8/x16 motherboard slots, easy to install on desktop computers. Supports Windows10 / Windows11 64-bit operating system. Equipped with standard full-height bracket for regular desktop case installation.
Not support all devices which motherboard with AMD chipset.
Intel AX210NGW
Model: AX5400
WiFi Standard: WiFi 6E (IEEE 802.11ax), backward compatible with WiFi 6 / WiFi 5 / WiFi 4
Frequency Bands: Tri-Band 2.4GHz + 5GHz + 6GHz
Max Total Throughput: 5374Mbps (theoretical tri-band combined value)
Bluetooth Version: Bluetooth 5.4
Host Interface: PCIe x1 (compatible with x4 / x8 / x16 slots)
Cooling: Large Red Aluminum Heatsink
Security Encryption: WPA3
Core Technologies: MU-MIMO
Supported OS: Windows 10 64-bit, Windows 11 64-bit
Product Features
1. Tri-Band WiFi 6E Ultra-Fast Connection
Powered by the Intel AX210 wireless controller and compliant with 802.11ax WiFi 6E standard, it delivers up to 5374Mbps total throughput across 2.4GHz, 5GHz and 6GHz bands. The exclusive interference-free 6GHz band cuts latency to a minimum, perfect for competitive gaming, 8K UHD streaming and large file transfers.
2. Integrated Bluetooth 5.4 Module
Upgraded Bluetooth 5.4 delivers enhanced anti-interference, longer transmission range and stable multi-device pairing. You can simultaneously connect wireless gaming headsets, game controllers, mechanical keyboards, mice and smartphones. No extra USB Bluetooth dongle required, saving your desktop USB ports.
3. Large Red Aluminum Heatsink
Premium stacked red aluminum heatsink efficiently dissipates heat during long-hour high-load operation. It prevents thermal throttling, speed drops and random disconnections during continuous gaming, downloading and heavy data transmission, maintaining stable full-speed performance.
4. Dual High-Gain External Antennas
Two rotatable high-gain omnidirectional antennas can be adjusted freely to optimize signal reception. They effectively boost receiving sensitivity and maintain stable connection even when the router is far away or behind walls.
5. PCI-E X1 Wide Compatibility
Standard PCI-E X1 interface, backward compatible with PCI-E X4 / X8 / X16 motherboard slots. Supports Windows 10 64-bit and Windows 11 64-bit systems. A cost-effective solution to add WiFi 6E and Bluetooth to desktops without built-in wireless capability.
Note: Official Intel driver installation is required for full functionality. Please download and install the latest WiFi & Bluetooth driver before use.
