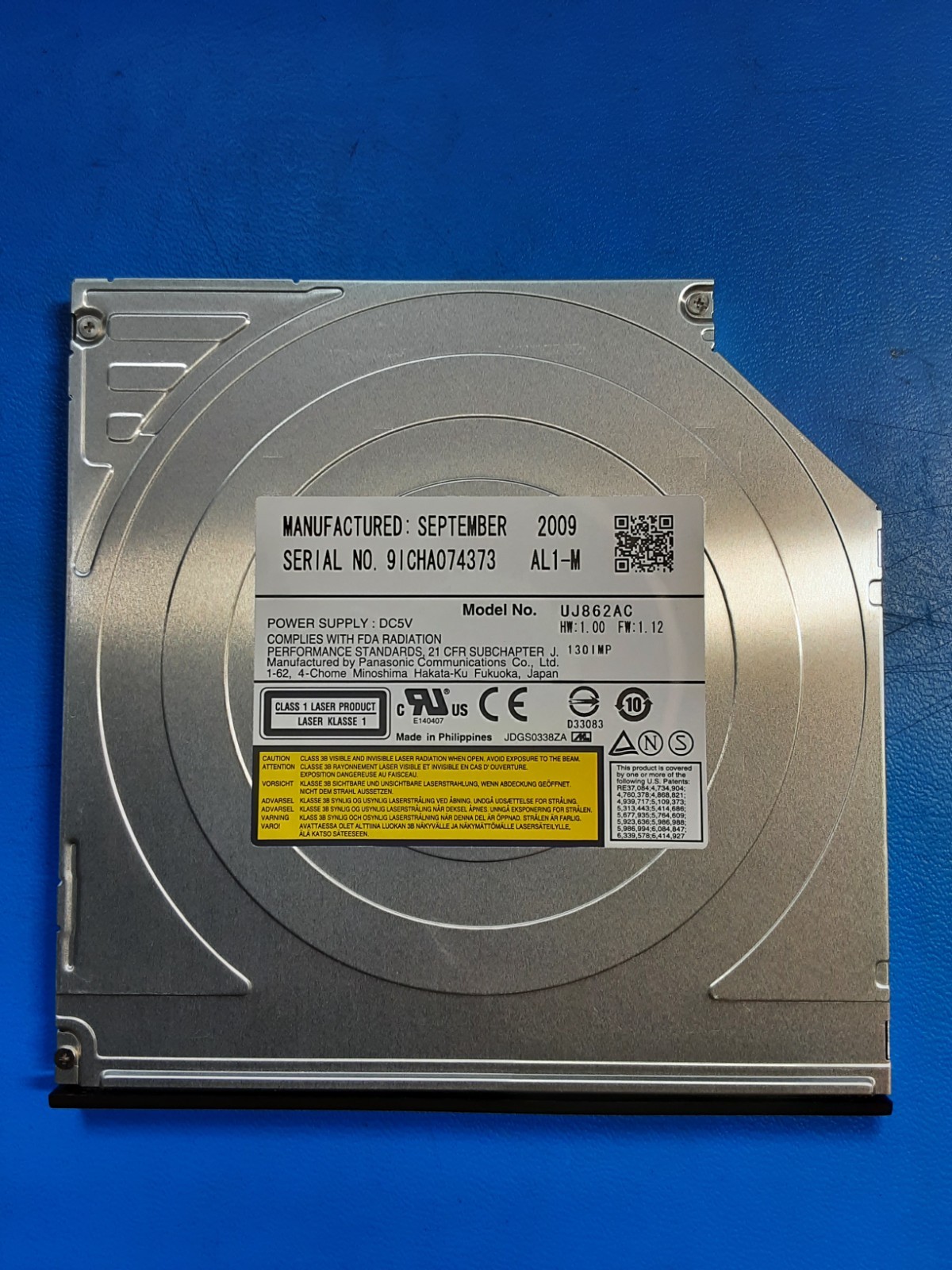

BRAND NEWPANASONIC UJ862A 8X SATA ULTRA SLIM DVD-R-RW SUPER MULTI DRIVE 9.5MM LAPTOP OPTICAL BURNER
General Information

• Model: Panasonic UJ862A

• Drive Type: Internal DVD-R-RW Super Multi Drive

• Interface: SATA

• Form Factor: Ultra Slim 9.5mm

• Loading Type: Tray Loading

• Weight: Approx 105g

• Dimensions: 128mm x 127mm x 9.5mm

Supported Disc Formats

• DVD: DVD-ROM, DVD-Video, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-R DL, DVD+R DL, DVD-RAM

• CD: CD-DA, CD-ROM, CD-R, CD-RW, CD-ROM XA, Photo CD, Video CD, CD-Text, CD-Extra

Write Speeds

• DVD-R: 8X

• DVD+R: 8X

• DVD-RW: 6X

• DVD+RW: 8X

• DVD-R DL: 4X

• DVD+R DL: 4X

• DVD-RAM: 5X

• CD-R: 24X

• CD-RW: 16X

Read Speeds

• DVD: Up to 8X

• CD: Up to 24X

Environmental Requirements

• Operating Temperature: 5C to 50C

• Operating Humidity: 10 to 80 percent role="list">

• MTBF: Approx 150000 hours

Compatibility

• Fits laptops with a 9.5mm SATA optical bay

• Plug-and-play with Windows and macOS

Ideal Uses

• Laptop optical drive replacement

• CD and DVD burning

• Software installation

• Media playback

• Archival backups

PANASONIC UJ862A — FULL TECHNICAL DATA SPEC SHEETProduct Overview

The Panasonic UJ862A is an ultra slim 9.5mm internal optical drive designed for laptops and compact systems. It is part of Panasonic’s Super Multi DVD burner family, supporting nearly every CD and DVD format including DVD RAM. The UJ862A was widely used in OEM laptops from Panasonic, Toshiba, HP, Acer, and Sony.

Physical Specifications

• Model: Panasonic UJ862A

• Form Factor: Ultra slim optical drive

• Height: 9.5mm

• Width: 128mm

• Depth: 127mm

• Weight: 105g

• Loading Method: Motorized tray loading

• Front Bezel: Standard slimline laptop bezel

• Drive Mechanism: Slot guided tray with spindle clamp

Interface

• Primary Version: SATA

• Alternate Version: IDE ATAPI

• Connector Type: Slimline optical drive connector

• Power Input: DC 5V

Note: The UJ862 series was manufactured in both SATA and IDE versions depending on OEM requirements. The UJ862A is most commonly found as SATA.

Supported Disc FormatsDVD Formats

• DVD ROM

• DVD Video

• DVD R

• DVD RW

• DVD plus R

• DVD plus RW

• DVD R Dual Layer

• DVD plus R Dual Layer

• DVD RAM

CD Formats

• CD DA

• CD ROM

• CD R

• CD RW

• CD ROM XA

• Photo CD

• Video CD

• CD Text

• CD Extra

Write SpeedsDVD Write Speeds

• DVD R 8X

• DVD plus R 8X

• DVD RW 6X

• DVD plus RW 8X

• DVD R DL 4X

• DVD plus R DL 4X

• DVD RAM 5X

CD Write Speeds

• CD R 24X

• CD RW 16X

Read SpeedsDVD Read Speeds

• DVD ROM 8X

• DVD Video 8X

• DVD R 8X

• DVD RW 8X

• DVD plus R 8X

• DVD plus RW 8X

• DVD DL 8X

• DVD RAM 5X

CD Read Speeds

• CD ROM 24X

• CD R 24X

• CD RW 24X

• CD DA 24X

Access Times

• DVD: 160ms typical

• CD: 150ms typical

Buffer Memory

• 2MB buffer (Consistent across both SATA and IDE variants)

Reliability

• MTBF: 150000 hours

• Error Correction: CIRC for CD, RSPC for DVD

• Shock Tolerance: Standard slimline laptop optical drive rating

Environmental Specifications

• Operating Temperature: 5C to 50C

• Storage Temperature: minus 20C to 60C

• Operating Humidity: 10 to 80 percent non condensing

• Storage Humidity: 5 to 90 percent non role="list">

• Fits any laptop with a 9.5mm optical drive bay

• Compatible with Windows, Linux, and macOS

• Plug and play with standard OS optical drive drivers

• Used in many OEM laptop models from Panasonic, Toshiba, HP, Acer, Sony, and others

Common OEM Part Numbers

Typical Use Cases

• Laptop optical drive replacement

• CD and DVD burning

• Software installation from disc

• Media playback

• Archival backups

• Legacy system restoration

Brand: PanasonicModel: UJ862AType: Internal Laptop Optical DriveForm Factor: 9.5mm Ultra SlimInterface: SATA (some variants IDE)Write Speeds: DVD‑R 8X, DVD+R 8X, DVD‑RW 6X, DVD+RW 8X, DVD‑R DL 4X, DVD+R DL 4X, DVD‑RAM 5X, CD‑R 24X, CD‑RW 16XRead Speeds: DVD 8X, CD 24XCompatible With: LaptopWritable Formats: DVD‑R, DVD+R, DVD‑RW, DVD+RW, DVD‑R DL, DVD+R DL, DVD‑RAM, CD‑R, CD‑RWUnit Type: Unit
