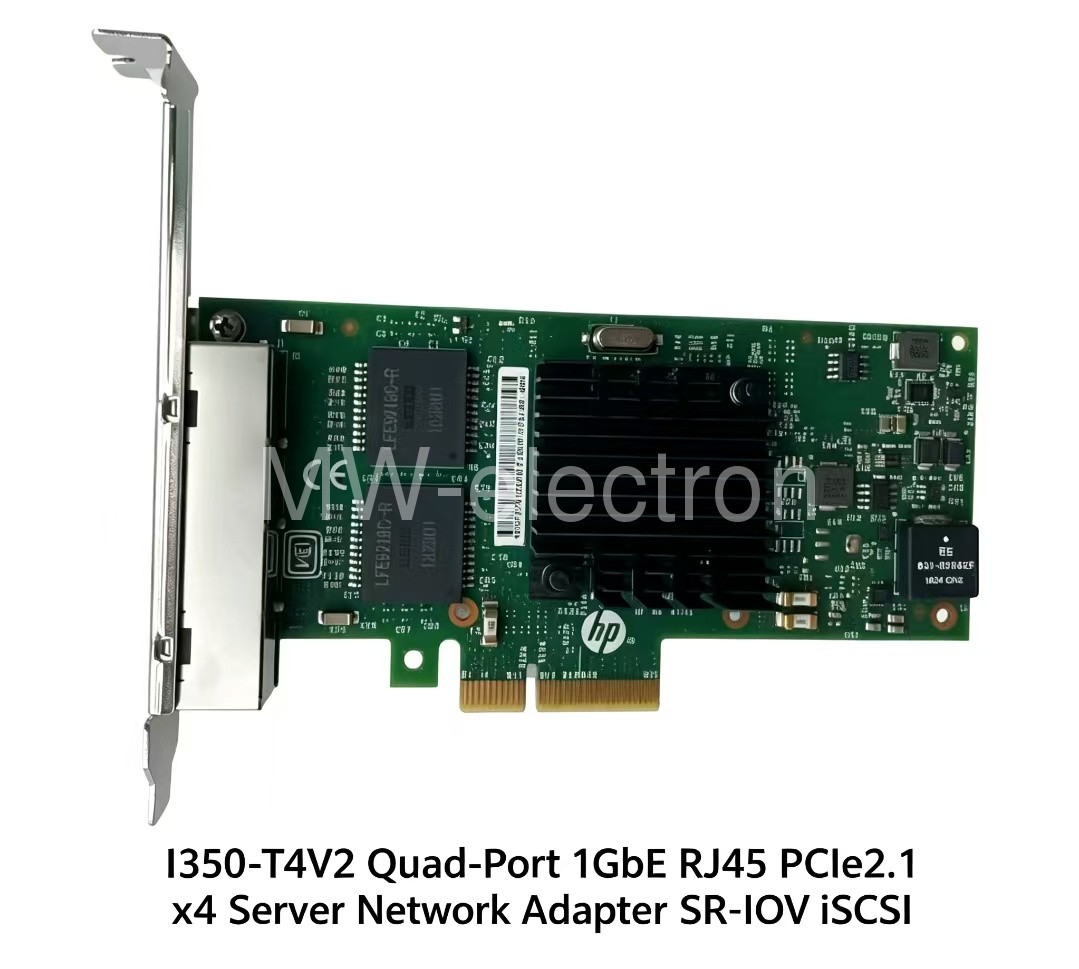

Original Intel I350T4V2 1GbE Quad Port Ethernet Server Adapter I350-T4V2BLK with Hologram I350-T4V2 Intel I350T4G2P20I350‑T4V2
The I350‑T4V2 is a quad‑port copper gigabit server network adapter built upon the Intel I350 Ethernet controller, designed for enterprise servers, virtualization hosts, small‑scale storage, and multi‑NIC network appliance deployments. It features four RJ45 copper ports supporting auto‑negotiation of 10/100/1000 Mbps, working with Cat‑5e or above twisted‑pair cables up to 100 meters.
Host interface is PCIe 2.1 x4 (5 GT/s), compatible with x4, x8, x16 PCIe slots. Both full‑height and low‑profile brackets are included to fit standard and slim 1U rack‑mount servers, typical power consumption is only 5 W.
Rich virtualization functions include Intel VT‑c, SR‑IOV and VMDq, supporting up to 32 virtual ports with on‑chip QoS and flexible port partitioning, effectively lowering CPU overhead for multi‑virtual‑machine environments. Hardware offloads cover TCP/UDP checksum, TCP segmentation, RSS receive‑side scaling and iSCSI boot acceleration, delivering cost‑effective SAN connectivity over Ethernet networks.
Power‑saving technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing reduce power draw under light traffic loads. Supported operating systems include Linux, Windows and VMware ESXi. Widely used for multi‑LAN bonding, virtual machine networking, firewall appliances, iSCSI storage and edge server scenarios.
Key Specifications
- Model: I350‑T4V2
- Controller: Intel I350 Ethernet Controller
- Ports: 4 × RJ45 Copper
- Speed: 10/100/1000 Mbps auto‑negotiation
- Host Bus: PCIe 2.1 x4 (5 GT/s), works in x4/x8/x16 slots
- Brackets: Full‑height & Low‑profile included
- TDP: 5 W typical
- Virtualization: SR‑IOV, VMDq, VT‑c, up to 32 virtual ports
- Main Offloads: Checksum offload, TSO, RSS, iSCSI boot, EEE power management
- Cabling: Cat‑5e / Cat‑6, max 100 m
- OS Support: Linux, Windows, VMware ESXi
- Applications: Server virtualization, network bonding, iSCSI storage, firewall network appliances
