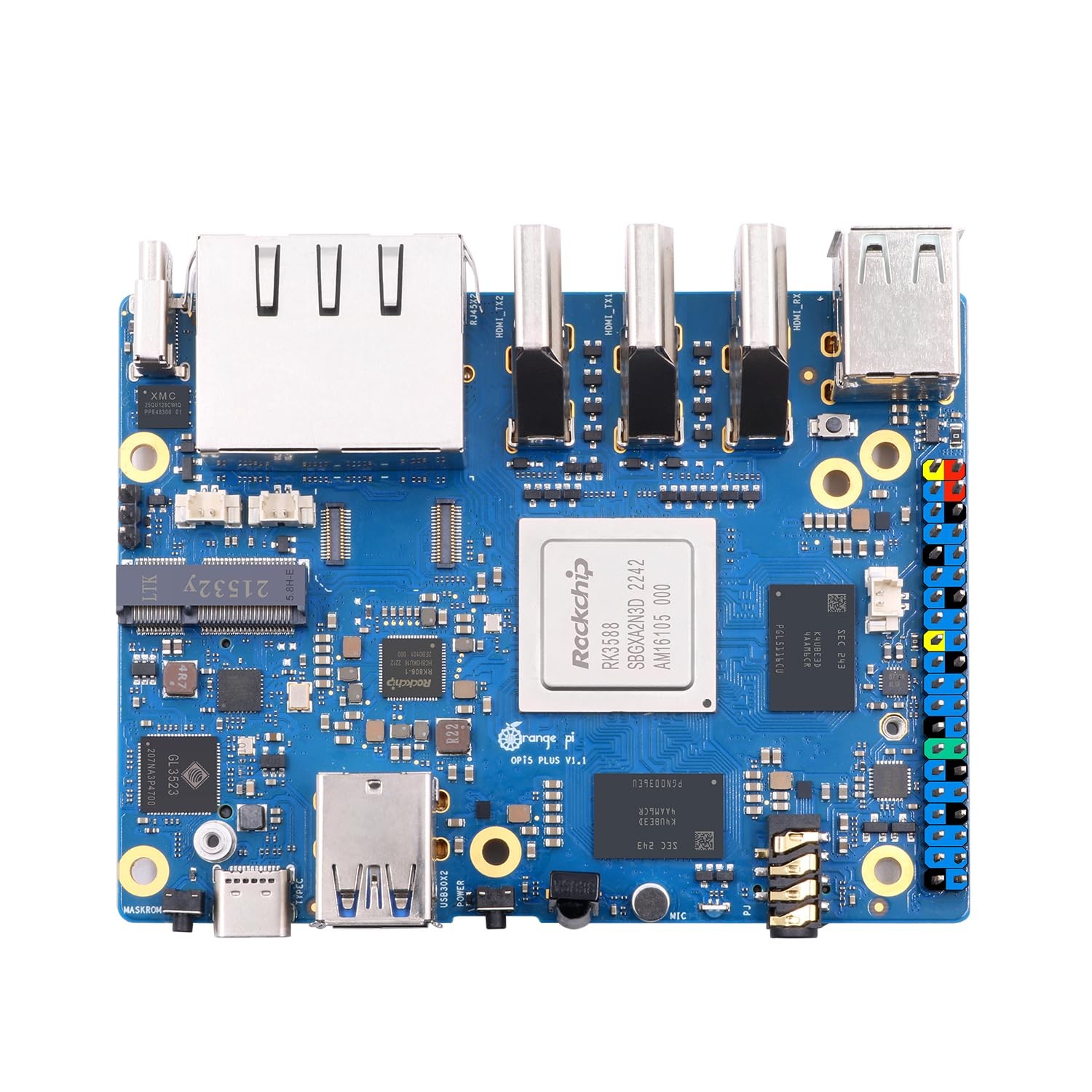

Orange Pi 5 Plus 8GB RK3588 8 Core 64 Bit Single 5 8G V2.1
Product Details

• Publisher: Orange Pi
• Publication date: 0

• Orange Pi 5 Plus 8GB adopts a Rockchip RK3588 8-core 64 bit processor, specifically a quadcore A76+quadcore A55, designed using an 8nm process, with a main frequency of up to 2.4GHz. It integrates ARM Mali-G610, has a built-in 3D GPU, and is compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2; There is 4GB/8GB/16GB LPDDR4/4x memory and eMMC flash socket, which can be externally connected to 16GB/32GB/64GB/128GB/256GB eMMC modules(NO Include).
• The embedded NPU of Ornage pi 5 plus 8gb mini pc supports the hybrid operation of INT4/INT8/INT16/FP16, with the computing power up to 6Tops, which can meet the edge computing requirements of most terminal devices. Orange Pi 5 Plus supports the official operating system Orange Pi OS developed by Orange Pi, as well as operating systems such as Android 12, Debian 11, and Ubuntu 22.04.
• Orange pi 5 Plus Single Board Computer has rich interfaces, 2 HDMl output ports, 1 input HDMl port, and can be decoded up to 8K@60P Video, two PCIe extended 2.5G Ethernet interfaces, equipped with an M.2 M-Key slot that supports the installation of NVMe solid-state drives, and an M.2 E-Key slot that supports Wi Fi 6/BT modules. In addition, the OPi 5 Plus has 2 USB 3.0, 2 USB 2.0, and 2 Type-C (one of which is a power interface).
• Orange pi 5 Plus microcontroller open source board mini computer has a wide range of applications, which can help embedded system development enthusiasts explore and is also suitable for enterprises to develop mini machine vision systems with multiple Ethernet ports. OPi 5 Plus provides a stronger performance experience for high-end applications and can meet the customized needs of different industries.
• Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch.Pretty much anything else, because Orange Pi is open source.
• Notice before order: By default, we won't responsible for customs clearance fee charged by your local. If you have any questions, Please feel free to contact us.

Product ParametersMain control chip: Rockchip RK3588(8nm LP process)CPU: 8-core 64-bit processor;Four Cortex-A76s and four Cortex-A55s and separate NEON coprocessorsThe Cortex-A76 clocked at 2.4GHz and the Cortex-A55 clocked at 1.8GHzGPU: Integrated ARM Mali-G610Built-in 3D GPUCompatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2NPU: The embedded NPU supports INT4/INT8/INT16/FP16 hybrid operation, with a computing power up to 6TopPMU: RK806-1RAM: 4GB/8GB/16GB (LPDDR4/4x)Storage: QSPI Nor FLASH: 16MB/32MBMicroSD card slot: up to 128GBeMMC flash socket, can external 16 gb / 32 gb / 64 gb / 128 gb / 256 gb eMMC moduleThe M.2 2280 slot for NVMe SSDS (PCIe 3.0 x4) is up to 2,000 MB/sUSB: 2xUSB3.0; 2xUSB2.0; 1xType-CVideo Output: 2x HDMI 2.1 output up to 8K@60FPS1x Type-C (DP 1.4A) output, up to 8K@30FPS1x HDMI input, up to 4K@60FPS1 x MIPI DSI 4 Lane output, up to 4K@60HzTP Interface: 1x6Pin FPC socketCamera: 1xMIPI CSI 4 LaneAudio: CODEC:ES83881x3. Audio input/output with 5mm headphone jack1xMIC input1xHDMI 2.1 eARC1x speakerEthernet: 2xPCIe 2.5G LAN (RTL8125BG)Expansion port: 40Pin double-row pin, with the following reuse functions:UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO.PCIe M.2 m-key Socket: M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSDPCIe M.2 e-key Socket: M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0, supporting the 2230 Wi-Fi6 /BT moduleKey: 1x MaskROM key, 1xRECOVERY, 1x switch on/off keyPower supply: Type
