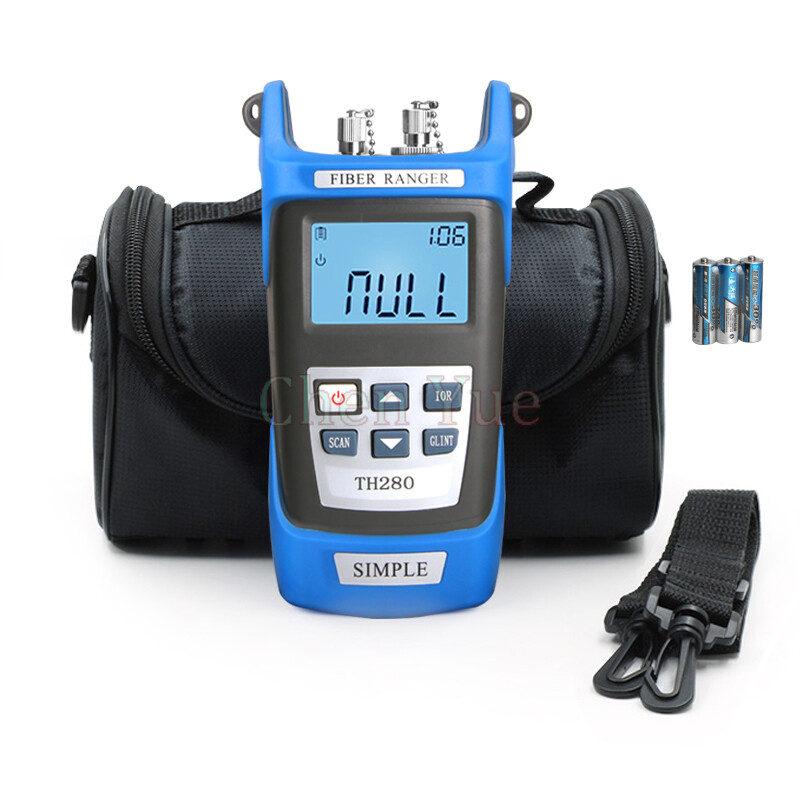

Handheld Simple OTDR 60km Optical Fiber Ranger 1310/1550nm SM Optical Cable Breakpoint Locator Fiber Ranger With VFL
Description:
Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the fiber ranger detect fiber faults location more accurate and easy.
Features:
Portable, rugged, lightweight; Easy to use.More accurate testing results and better repeatability.Up to 8 fiber faults can be detected in each measurement.Automatic Pulse Width Control design to ensure a convenient operation.Easy to identify the faults location.Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.Dust, water and shock proof, des igned for field useLong battery life, up to 5000 measurements operation.
Applications:
Testing the distance of the fiber and identify the faults location in the fiber link.Locates reflective and non-reflective breaks in the fiber network.Inspection of fiber repair and maintenance.1. Before testing, ensure that the test connector and the interface clean OTDR (moistened with alcohol wipes to clean) and OTDR coupled with good test line can not be connected with the light emitting device (optical fiber can not light).2. If you need to test the line with pigtail connection test (butt welding or ligated, flange coupling), should pay attention to the connection line attenuation can not be too large, otherwise affect the test.3. The left side of the interface simple OTDR red light, the right to test the break interface; the interface connected to the right of the OTDR test, and then press the power button, then press the SCAN button, the screen display ||||||||| |||||| scroll bar, scroll completion can be measured readings.The first and second step is very important, if the test result screen is null, should pay attention to whether the steps 1 and 2 did not do.
Wavelength: 1310/1550nmFiber Type: 9/125umConnector Type: FC/PCSensor Type: InGaAsLaser Peak Power: ≥60mWMaximum display distance:Reflection event： 60KM (≥1dB) Non-reflective event: 20KM(≥2.5dB)Unit of measurement: MReflection time dead zone: 15MDistance Accuracy (Reflection Event): ±（2m+2*10-4distance）VFL: 650nmVFL power: ≥1mWPower Supply: 3pcs 1.5V AA alkaline batteries(Not include)Battery operating time: ≥5000 measurementsOperating temperature: -5~40℃Storage temperature: -10~60℃Humidity: 0~85% Not condensingWeight(Without batter): 350g
Note: The batteries are not included. Thank you!
