1.Main Parameters

Product Name

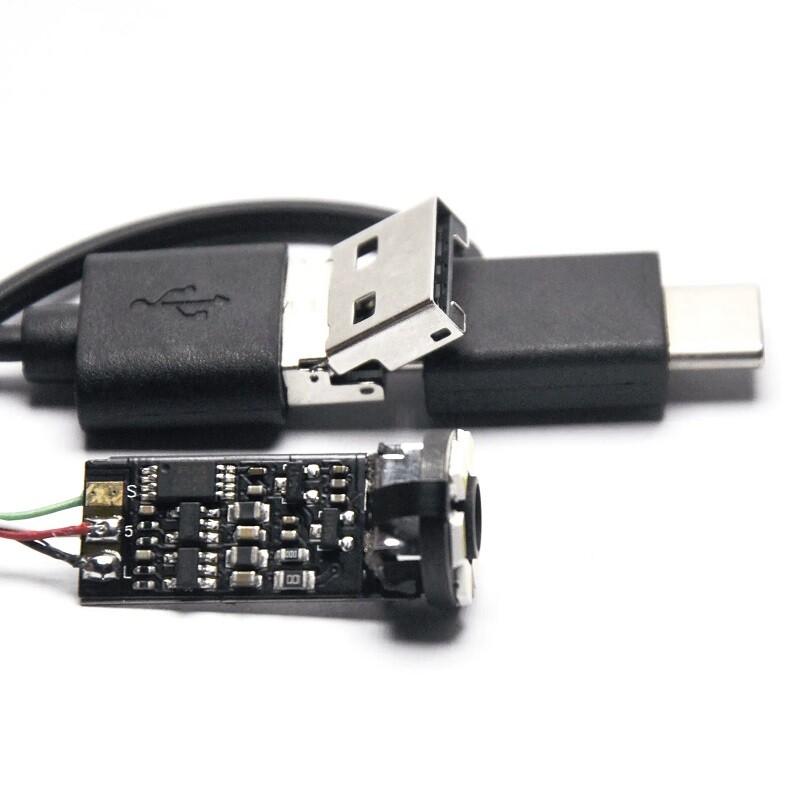

5MP USB2.0 Camera Module

Product Code

Module Size

Diameter: 12.6mm, PCB: 29*11mm

Image Sensor

1/4.0-inch OV5693 CMOS Sensor

Max. Resolution

2952 H x 1944 V

Pixel Size

1.4*1.4μm

Output Format

MJPEG, YUY2

Field of View

73.8°

Lens

EFL: 2.0mm, F/No. 2.4, 4P+IR 650nm

Dynamic Range

Up to 69dB

Focus Mode

Autofocus

Shutter Mode

Electronic Rolling Shutter

Output & Power Supply

High Speed USB2.0

LED

6PCS 0201 LEDs

Interface

6PIN Welding Spots

Controllable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

Supported OS

UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.

Connection Cable

Default1.0 Meter USB Cable

2.Supported Resolutions and Frame Rates

Formats

Resolutions

Frame Rates

MJPEG

2592x1944

30FPS

2048x1536

30FPS

1920x1080

30FPS

1280x720

30FPS

800x600

30FPS

640x480

30FPS

YUY2

2592x1944

3FPS

2048x1536

3FPS

1920x1080

5FPS

1280x720

10FPS

640x480

30FPS

3.PIN Definitions

Pin No.

Signal Names

Descriptions

1

GND

Ground

2

DM

USB2.0 Data-

3

DP

USB2.0 Data+

4

S

Shot Key

5

VCC

DV 5V

6

LED

LED+

4.Working Conditions

Working Voltage

DC 5V

Working Current

140mA

Working Temperature

-20°C ~ 60°C

Storage Temperature

-20°C ~ 85°C

Humidity

80 ~85%
