*** Brand New Sealed, NEVER Used, NOT Refurbished!! ***

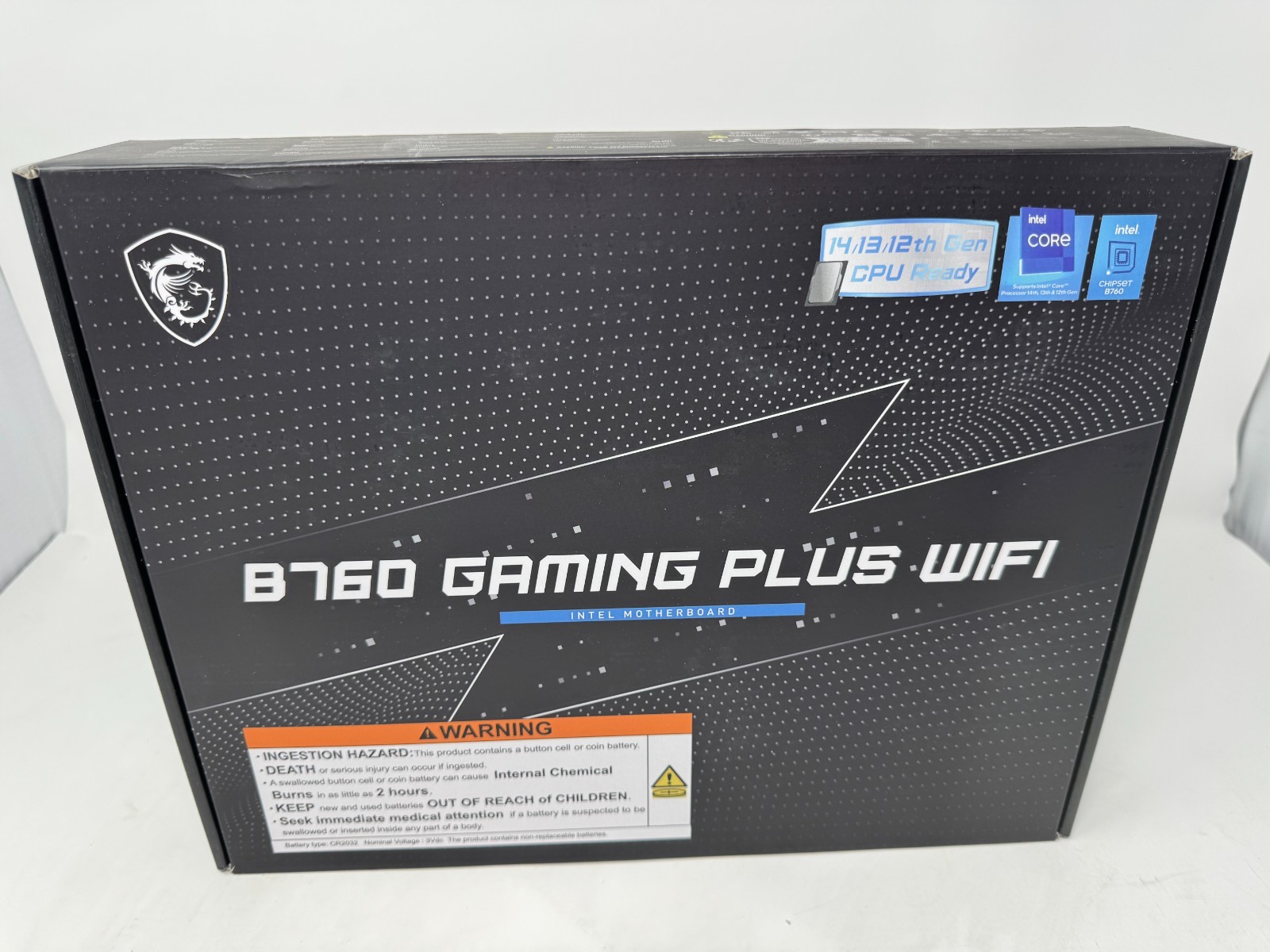

MSI B760 GAMING PLUS WIFI V1 Intel LGA 1700 DDR5 ATX Desktop Motherboard
Model Brand MSI Model B760 GAMING PLUS WIFI Supported CPU CPU Socket Type LGA 1700 CPU Type Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors Chipsets Chipset Intel B760 Memory Number of Memory Slots 4x288pin (DDR5) Memory Standard 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory Maximum Memory Supported 192GB Channel Supported Dual Channel Expansion Slots PCI Express 4.0 x16 2 x PCI Express 4.0 x16 PCI Express x1 3x PCIe 3.0 x1 slot Storage Devices Serial ATA (SATA) 4 x SATA 6Gb/s M.2 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Onboard Audio Audio Channels 8-Channel (7.1) HD Audio with Audio Boost Onboard LAN Max LAN Speed Realtek®
RTL8125BG 2.5G LAN Wireless LAN ntel®
Wi-Fi 6E Bluetooth , Bluetooth 5.3 Rear Panel Ports Back I/O Ports Keyboard/Mouse, Displayport 1.4, 2.5G LAN, USB2.0, Wi-fi/Bluetooth, HD Audio Connectors, USB2.0, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (type-A), USB 3.2 Gen 2 10Gbps(Type C), Optical S/PDIF-Out. Internal I/O Connectors Other Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports Software Feature Windows 11 Support for Windows® 11 64-bit, Windows® 10 64-bit Physical Spec Form Factor ATX Dimensions (W x L) 243.84mmx304.8mm Features Features Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
