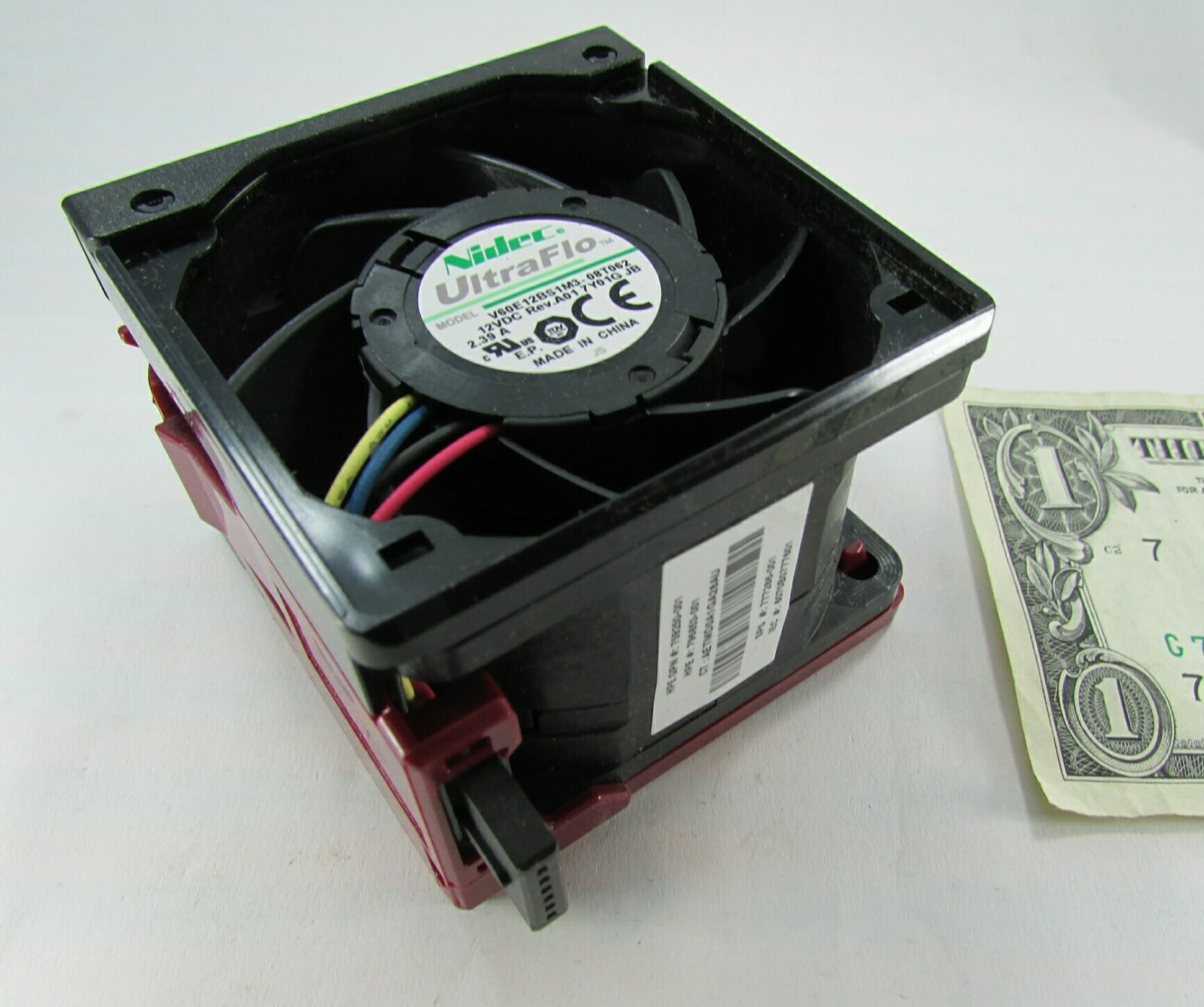

New Nidec V60E Series 60MMx 38MM 6-Pin High Performance DC Axial Cooling Fans, 12VDC 2.39 Amps, Nidec Part Number V60E12BS1M3-08T062, Customer Part Number 759250-001. Each offer quantity is for One (1) Fan. You may offer / buy any number, up to the total quantity available above.

These were purchased at an industrial liquidation earlier this year, and they were brand new in the original bulk factory carton. We will package smaller quantitiesindividually for resale.The actual fan is 60MM x 60MM x 38MM.  The entire unit, including housing and guards measures about 64.56 MM x 62.09 MM x 48.25 MM, excluding the 6-pin connector.

According to the manufacturer (all specs for the series may not apply to this particular part number):

V60E-M3

High-functionality fan UltraFlo series (60 x 60 x 38 mm)

A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently. The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life.

characteristics:

Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,quietness,RoHs support

Product data

Power source type: DC
Size: W60×H60 mm
Length: 38 mm
Operation temperature: -10～70 ℃
Lifespan: 70000
Mass: 130～130 ℃
Bearing: Ball bearing

Input

Rated voltage: 12 V / 10.8～13.2 V
Operating current: 2.39 A / 2.39～2.39 A
Rated input: 28.6 W / 28.6～28.6 W

Output

Rated speed: 20500 / min-120500～20500 min-1
Maximum air flow (m3/min): 2.02 m3/min / 2.02～2.02 m3/min
Maximum air flow (CFM): 71.3 CFM / 71.3～71.3 CFM
Maximum static pressure(Pa): 1393 Pa / 1393～1393 Pa
Maximum static pressure(inchH2O): 5.59 inchH2O / 5.59～5.59 inchH2O
Sound pressure(dB[A]): 69.5～69.5 dB[A]
