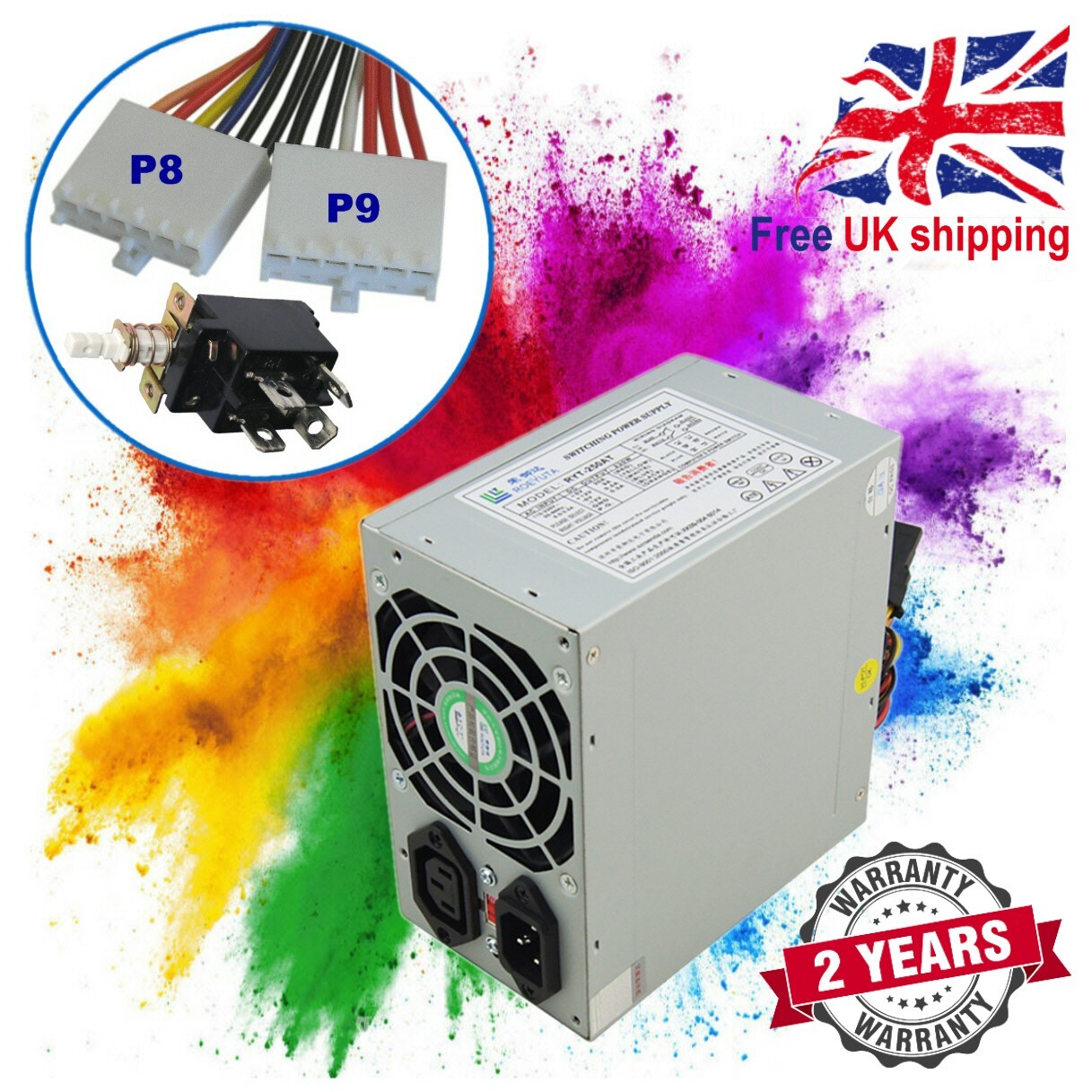

New AT 400W PSU for Arachnid Black Widow, Benchmark Big Haul, Valley HB & IQ Dart Available See ratings
- Rare, genuine AT power supply, brand new
- Fits Arachnid Black Widow, Benchmark Big Haul, Valley HB & IQ Dart and many more AT machines
- 400W output, standard 6-pin P8 & P9 motherboard connectors
- 4x Molex, 2x SATA, 1x Floppy + remote ON/OFF latching switch
- 115-230V input with manual voltage selector, 80mm fan
- Optional P10 connector (+3.3V orange wires)
High Quality / Returns Accepted / 2 year warranty on PSUs
Product Description
This rare, genuine AT power supply unit is a direct replacement for the original PSU in dart and arcade machines such as the Arachnid Black Widow, Benchmark Big Haul and Valley HB & IQ Dart, and for the 119 AT power supply models listed below. It delivers a reliable 400W for legacy systems built on AT technology: vintage PCs and workstations, kiosks and POS terminals, arcade and dart machines, and industrial control platforms.
Compatible Systems
- Vintage home computers and workstations
- Hard drive storage enclosures
- Shopping mall kiosks and point-of-sale terminals
- Arcade game machines and entertainment systems
- Legacy industrial control platforms
- Manufacturing plant control systems
Technical Specifications Model numberAthena Power AT-40 Form factorAT AC input115/230V, 7/3A, 60/50Hz, suitable worldwide. Manual voltage switch: select the correct voltage BEFORE using the PSU to prevent damage. Power output400W ColourGrey Ventilation1x 80mm fan Size (HxWxD)85 x 150 x 140mm (3.3 x 5.9 x 5.5 inch) Weight1.4kg Package size & weight100 x 250 x 200mm, 1.7kg ConditionBrand new Warranty2 years (1 year standard + 1 year free extended) ReturnsReturn within 30 days if unsuitable or unwanted Connectors 6-pin P8 & P9Standard AT wiring. Some PSUs have slightly different wire colours even though the voltages are the same. Molex4 SATA2 Floppy (Berg)1 ON/OFF switchRemote, detachable, self-latching 6-pin P10Not fitted as standard. Available as an option (see below). DC Output +5V38A +12V18A -5V0.5A -12V0.5A Optional Extras
- P10 connector (+3.3V orange wires)
- Molex to SATA adaptor
- AT I/O shield for your AT chassis
- Ask us for any additional connectors
Important Remarks Please read before installation:
- P8 and P9 connectors must be plugged in so the black wires sit side by side, together in the centre.
- Set the voltage switch to your mains voltage before switching on.
- Some systems without motherboards do not require the P8 & P9 connectors, which can be left unused.
- Some systems do not require the ON/OFF switch. It can be left switched ON and tied up safely inside the machine.
- Supplied with a large latching switch suitable for most AT systems. It is detachable and can be replaced (terminal block size: 9x0.6mm). Check the diagram on the PSU for the correct wiring. A wrong connection will damage the PSU.
Optional P10 Connector
Some AT systems need a third 6-pin connector, called P10, in addition to P8 & P9. The P10 option offered in this listing is the standard version with 3 black wires (ground) and 3 orange wires (+3.3V), which is the one most AT systems with a P10 connector use.
Check your original PSU before ordering:
- Look at the wire colours on your old PSU's P10 connector: orange = +3.3V, red = +5V.
- The two versions plug into the same socket but supply different voltages. Fitting the wrong one can damage your motherboard or system.
- If your original P10 has red wires (+5V), this rare version is available on request. Please contact us before ordering.
- If your old PSU only has P8 & P9 (no third 6-pin connector), you do not need the P10 option.
Compatibility List
This AT PSU replaces the power supply models below and is compatible with the listed systems.
Tip: press Ctrl+F (or Cmd+F on Mac) and type your model number to find it quickly.
Compatible power supplies (119):
- Ace-940AP
- Acer Aspire 5133LK
- ADT-925C
- AGI BPS-2001-4U
- AGI BPS-2504-4U
- AGI PS-250W
- Arbor ZKS-250AE
- Astec 190170-01
- Astec 213-00013
- Astec 628699-001
- Astec 73-610-001
- Astec 73-610-016
- Astec PSE5-115-CI-001
- Astec PSE5-115-CI-016
- Astec SA145-3408
- Astec SA145-3430
- Astec SA145-3490
- Astec SA201-3438
- Astec SA201-3439
- Astec SA201-3440
- Astec SA201-3455
- Astec SA301-3405
- Astec SA302-3505
- Astec VL201-3400
- Athena Power AP-AT30
- Athena Power AP-AT35
- Athena Power AP-AT40
- Athena Power AT-30
- Bestec BPS-2504-4TU
- Bestec BPS-2994-4U
- Compaq 213928-001
- Compaq 213929-001
- Compaq 213976-021
- Compaq 214969-001
- Compaq 214978-001
- Compaq 334540-001
- Compaq 334543-001
- Compaq Presario 5695
- Compaq PS-5151-4A
- Compaq PS-5151-4C
- Compaq PS2021
- Deer DR-230C
- Delta DPS-145PB-38 A
- Delta DPS-145PB-38 A Rev: 01
- Delta DPS-200PB-8
- DVE DSP-1454C
- DVE DSP-1454P
- DVE DSP-1514P
- Emacs HG2-6300P (AT)
- Emacs SP2-4250F
- Emacs SP2-4300FB 6SP2-300B054
- Enermax E251P-V
- FS200 S40G
- FSP 9PP2500201
- FSP 9PP2500203
- FSP SPI-250G
- FSP SPI-300G
- G-Power 190308-01
- G-Power GP-4150PB
- G-Power GP-4200PB
- Gateway 6500010
- GT-230W
- Hipro HP-200 PPGN
- Hipro HP-230PPFN
- IBM 52G7955
- IBM 92F0411
- Kingspao KP-220TUL
- Kingspao MPS-6220T
- KP-230WN
- Liteon PA-4151-9B1
- Liteon PA-4221-3A1
- Liteon PS-5151-4A
- Liteon PS-5151-4C
- Macase MG-250EP
- Mapower PP-300TA (no P8&P9)
- Max Power KP-220TUL
- Max Power MPS-6220T
- NEC 158-050684-002
- NEC 190170-01
- NEC 213-00007
- NEC SA302-3505-1276
- Overland 973027-102
- Packard Bell 190050
- Packard Bell DSP-1454P
- Packard Bell PB150C
- Power Switch Corp PS-AT-200CC
- Power Tronic PTA-4200CF
- Power Tronic SK-4145DE
- PowerMan HP-230PP3
- PowerWin PW-200APSA
- PowerWin PW-250APSA
- PowerWin PW-300APSA
- PP-300-TA (duplicator PSU)
- PSA-2054C
- RA-4022A
- Ram Technologies PFC230PC
- SB250PL
- Sentomi SMP-200V
- Seventeam ST-300WHT-P
- Sparkle 9PP2500201
- Sparkle 9PP2500203
- Sparkle SPI-250G
- Sparkle SPI-250G-B
- Sparkle SPI-300G
- Sparkle SPI-300G-B
- SPI-200G
- SPI-250G
- SPI-300G
- SPQ-4300
- SPQ-4400
- SQH-4204
- ST-230WHF
- StarTech AG-230T
- StarTech PS2POWER230
- Sunpower SAP-4230P
- Topower TOP-250SS
- Topower TOP-250SS-CE
- Touch MU-250P
- Zippy Emacs HG2-6300P
Compatible systems (13):
- Amusement industry: gaming machines, video games, arcade games
- Arachnid Black Widow
- Benchmark Big Haul
- HDD storage enclosures
- Legacy industrial control platforms
- Merit Maxx
- Merit Megatouch XL (Gold, Platinum, and Titanium)
- Merit Scorpion Dart
- Older legacy computers using AT technology
- Plant control systems
- Shopping mall kiosks
- Valley HB & IQ Dart
- WMS Pin2000
Can't find your model? This list covers the most common compatible units but is not exhaustive. Contact us with your PSU model number and a photo and we will confirm compatibility for you.
